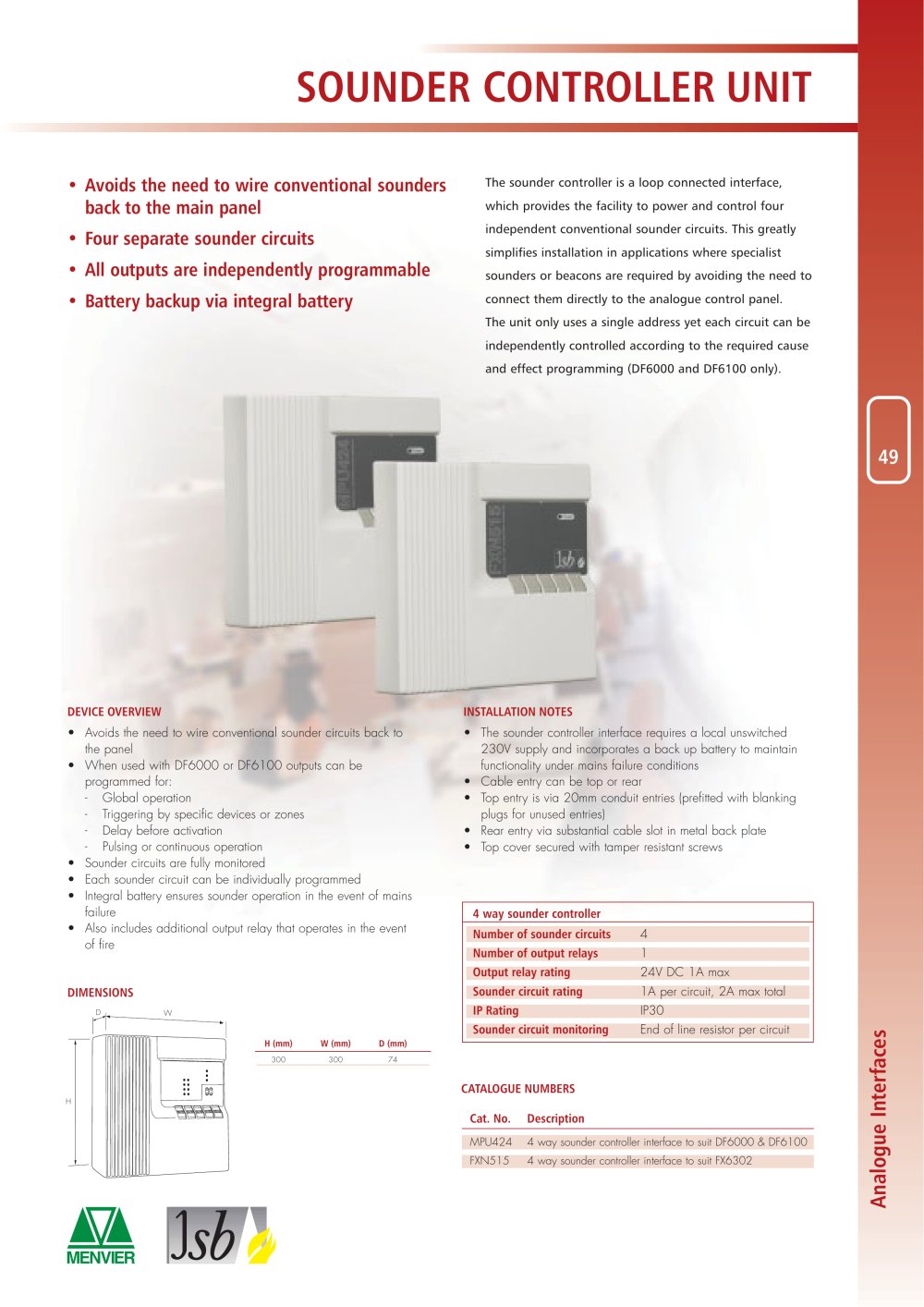

SOUNDER CONTROLLERUNIT

•Avoids the need to wire conventional sounders back to the main panel•Four separate sounder circuits •All outputs are independently programmable •Battery backup via integral battery

The sounder controller is a loop connected interface,which provides the facility to power and control four independent conventional sounder circuits. This greatly simplifies installation in applications where specialist sounders or industrial beacons are required by avoiding the need to connect them directly to the analogue control panel. The unit only uses a single address yet each circuit can be independently controlled according to the required cause and effect programming (DF6000 and DF6100 only).

49

•The sounder controller interface requires a local unswitched 230V supply and incorporates a back up battery to maintain functionality under mains failure conditions•Cable entry can be top or rear•Top entry is via 20mm conduit entries (prefitted with blanking plugs for unused entries)•Rear entry via substantial cable slot in metal back plate•Top cover secured with tamper resistant screws DEVICEOVERVIEW •Avoids the need to wire conventional sounder circuits back to the panel•When used with DF6000 or DF6100 outputs can be programmed for:-Global operation -Triggering by specific devices or zones-Delay before activation-Pulsing or continuous operation•Sounder circuits are fully monitored•Each sounder circuit can be individually programmed •Integral battery ensures sounder operation in the event of mainsfailure•Also includes additional output relay that operates in the event of fire 4 way sounder controller DIMENSIONS INSTALLATIONNOTES Number of sounder circuits 4 Number of output relays 1 Output relay rating 24V DC 1A max Sounder circuit rating 1A per circuit, 2A max total
D W H IPRating IP30 Sounder circuit monitoring End of line resistor per circuit
H (mm)W (mm)D (mm) 30030074 CATALOGUENUMBERSCat. No.Description
MPU4244 way sounder controller interface to suit DF6000 & DF6100FXN5154 way sounder controller interface to suit FX6302 Analogue Interfaces
