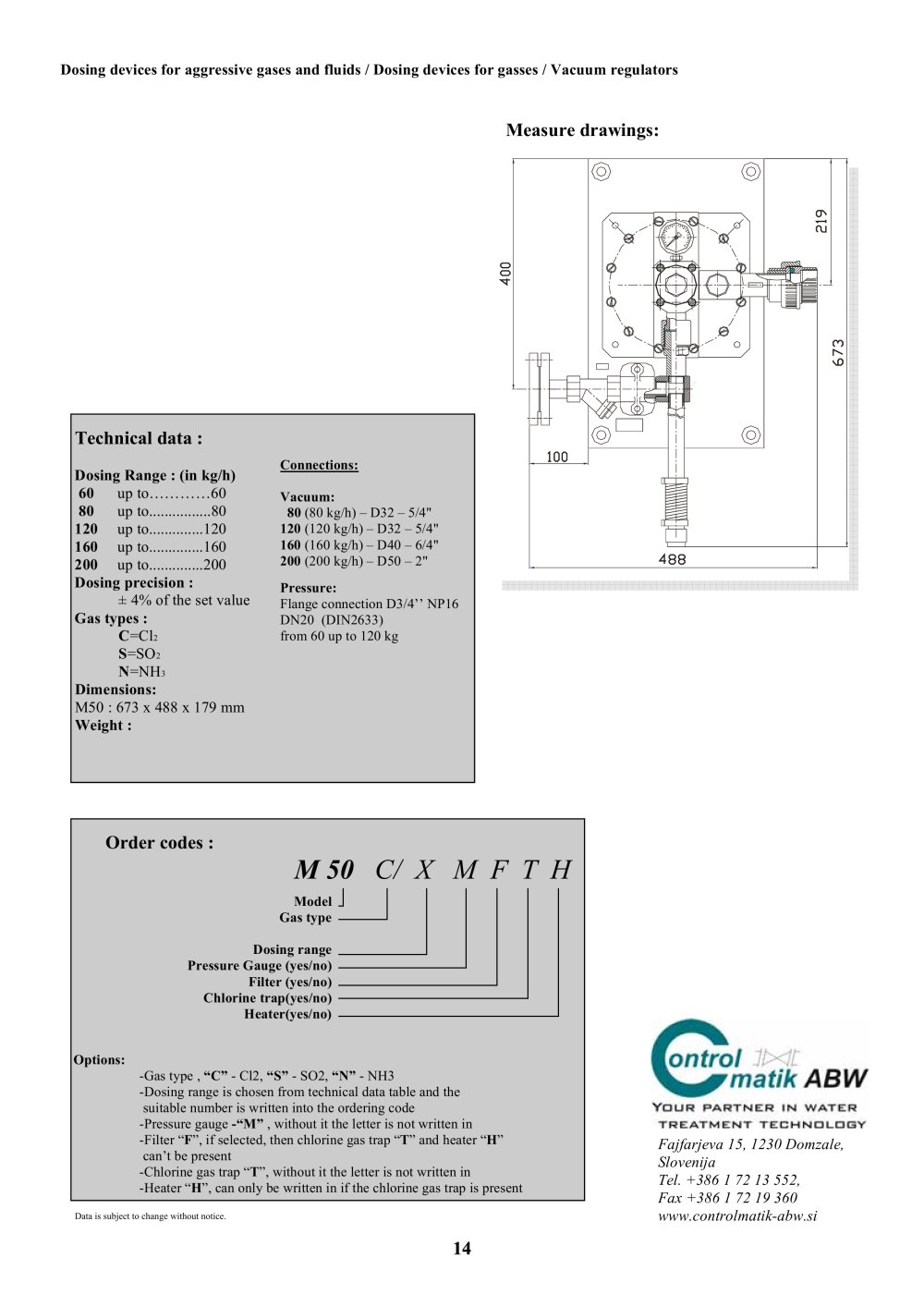

Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Vacuum regulators

Measure drawings: Technical data :

Dosing Range : (in kg/h)

Connections: Vacuum: 80

60 up to…………60 80 up to................80

(80 kg/h) – D32 – 5/4"

120 up to..............120

120 (120 kg/h) – D32 – 5/4"

160 up to..............160

160 (160 kg/h) – D40 – 6/4"

200 up to..............200

200 (200 kg/h) – D50 – 2"

Dosing precision : ± 4% of the set value

Pressure: Flange connection D3/4’’ NP16 DN20 (DIN2633) from 60 up to 120 kg

Gas types : C =Cl

2

S =SO

2

N =NH

3

Dimensions: M50 : 673 x 488 x 179 mm Weight :

Order codes :

Vacuum Regulators M 50 - 36931 M 50 C/ X M F T H

Model Gas type Dosing range Pressure Gauge (yes/no) Filter (yes/no) Chlorine trap(yes/no) Heater(yes/no) Options: -Gas type , “C” - Cl2, “S” - SO2, “N” - NH3 -Dosing range is chosen from technical data table and the suitable number is written into the ordering code -Pressure gauge -“M” , without it the letter is not written in -Filter “ F ”, if selected, then chlorine gas trap “ T ” and heater “ H ” can’t be present -Chlorine gas trap “

Fajfarjeva 15, 1230 Domzale, Slovenija Tel. +386 1 72 13 552, Fax +386 1 72 19 360 www.controlmatik-abw.si

T ”, without it the letter is not written in -Heater “ H ”, can only be written in if the chlorine gas trap is present
Data is subject to change without notice.
