Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Vacuum regulators

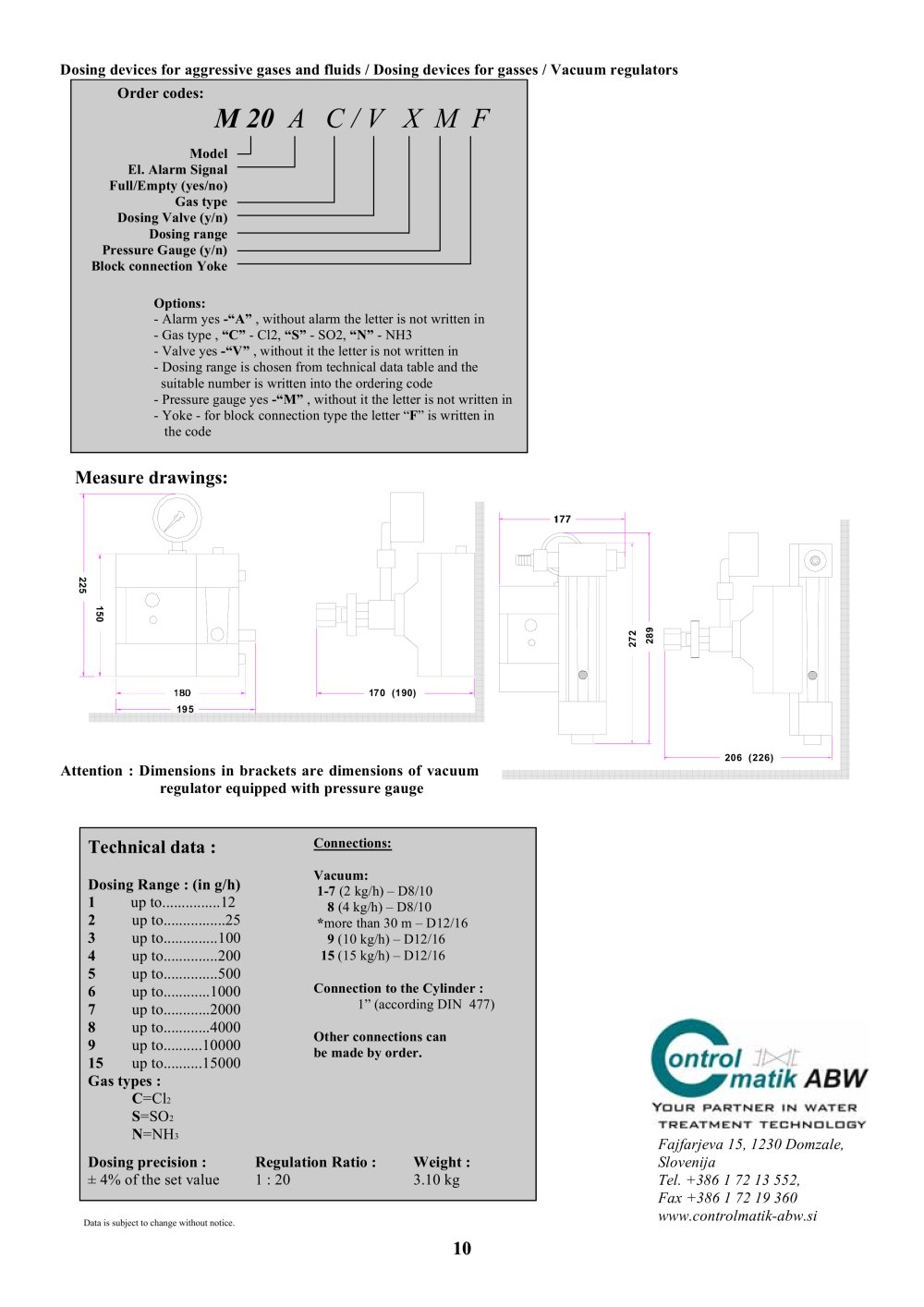

Vacuum Regulators M 20 - 36931 M 20 A C / V X M F

Model El. Alarm Signal Full/Empty (yes/no) Gas type Dosing Valve (y/n) Dosing range Pressure Gauge (y/n) Block connection Yoke Options: - Alarm yes -“A” , without alarm the letter is not written in - Gas type , “C” - Cl2, “S” - SO2, “N” - NH3 - Valve yes -“V” , without it the letter is not written in - Dosing range is chosen from technical data table and the suitable number is written into the ordering code - Pressure gauge yes -“M” , without it the letter is not written in - Yoke - for block connection type the letter “ F ” is written in the code

Measure drawings:

225150 272289 170 (190) 19 5 206 (226) Attention : Dimensions in brackets are dimensions of vacuum regulator equipped with pressure gauge Order codes:

Technical data :

Connections: Vacuum: 1-7 Dosing Range : (in g/h) 1 up to...............12
(2 kg/h) – D8/10 8 (4 kg/h) – D8/10 2 up to................25
* more than 30 m – D12/16 3 up to..............100
9 (10 kg/h) – D12/16 4 up to..............200
15 (15 kg/h) – D12/16 5 up to..............500 6 up to............1000
Connection to the Cylinder : 1” (according DIN 477) 7 up to............2000 8 up to............4000
Other connections can be made by order. 9 up to..........10000 15 up to..........15000 Gas types : C =Cl
2 S =SO
2 N =NH
3 Fajfarjeva 15, 1230 Domzale, Slovenija Tel. +386 1 72 13 552, Fax +386 1 72 19 360 www.controlmatik-abw.si Dosing precision : ± 4% of the set value Regulation Ratio : 1 : 20 Weight : 3.10 kg
Data is subject to change without notice.
