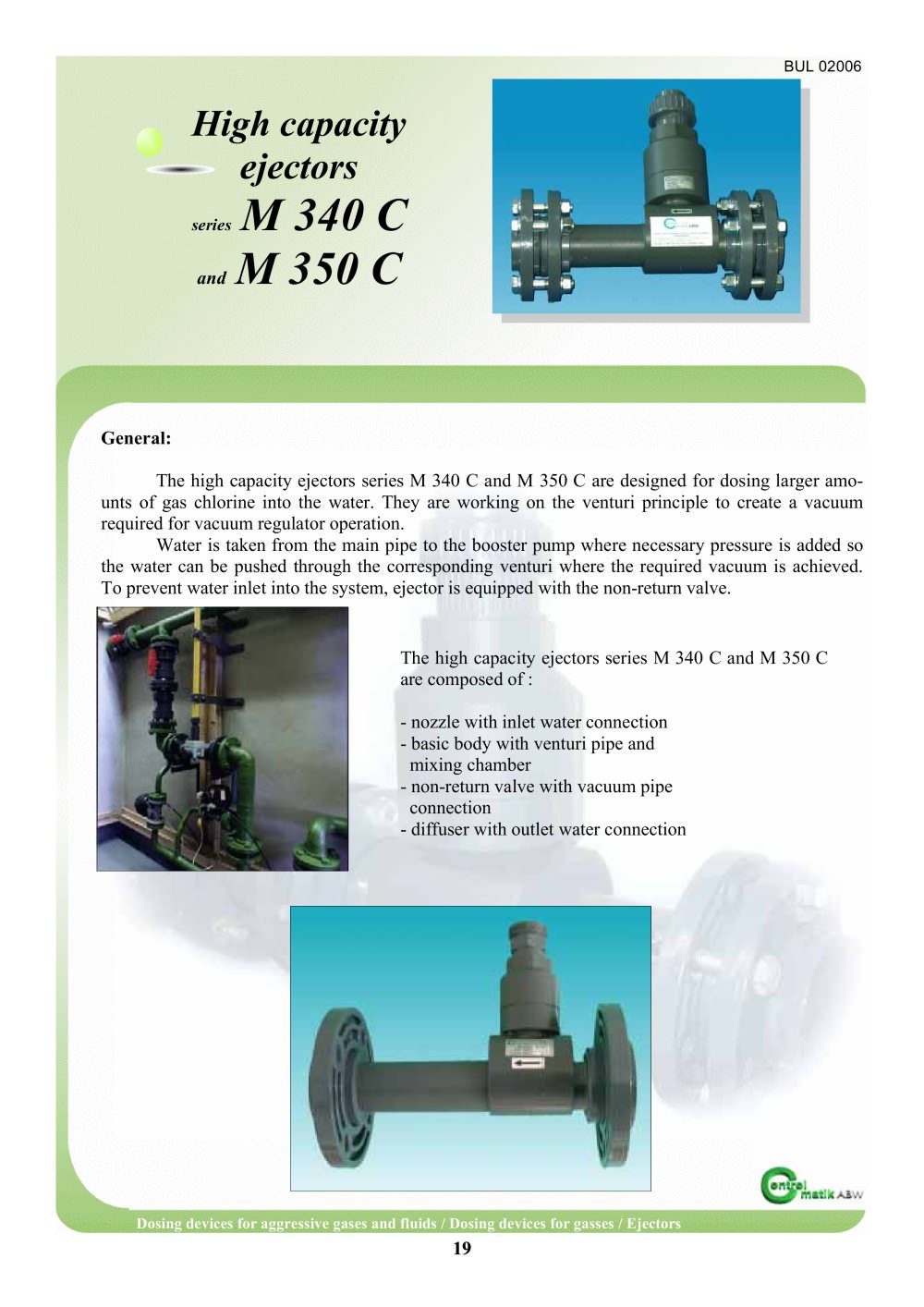

BUL 02006

High capacity ejectors

series

The Ejector M 340 C ( up to 40 kg/h) and M 350 C (up to 200 kg/h) - 36931 M 340 C

and

M 350 C

General: The high capacity ejectors series M 340 C and M 350 C are designed for dosing larger amo-unts of gas chlorine into the water. They are working on the venturi principle to create a vacuum required for vacuum regulator operation. Water is taken from the main pipe to the booster pump where necessary pressure is added so the water can be pushed through the corresponding venturi where the required vacuum is achieved. To prevent water inlet into the system, ejector is equipped with the non-return valve. The high capacity ejectors series M 340 C and M 350 C are composed of : - nozzle with inlet water connection - basic body with venturi pipe and mixing chamber - non-return valve with vacuum pipe connection - diffuser with outlet water connection
Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Ejectors 191919
