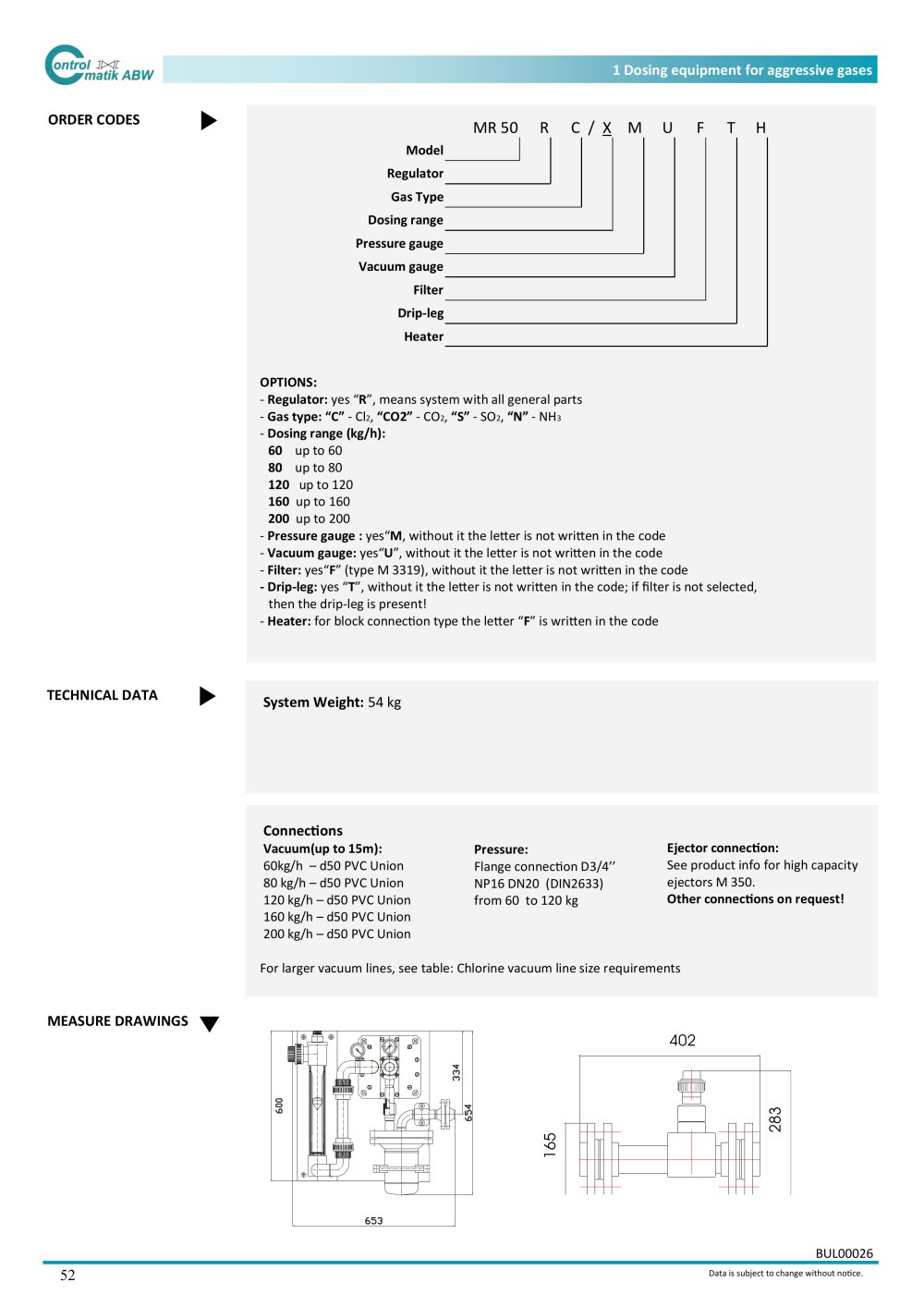

Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Systems of Vacuum regulators Measure drawings :

Technical data :

Connections: Vacuum: 60

Dosing ranges : (in kg/h)

(60kg/h) – D32 – 5/4" 80

MR 50 RC:

(80 kg/h) – D32 – 5/4"

60 upto………….60 80

120 (120 kg/h) – D32 – 5/4"

up to.................80 120 up to...............120 Dosing precision : ± 4% of the set value

See product info for ejectors M 350. See product info for high capacity ejectors M 350. See product info for high capacity ejectors M 350.

Gas Types : C =Cl

2

S =SO

2

N =NH

3 Pressure:

Regulation Ratio : 1 : 20

Flange connection D3/4’’ NP16 DN20 (DIN2633) from 60 up to 120 kg Other connections can be made by order. Ejector connection :

Weight : 54 kg Order codes :

System of vacuum regulators MR 50 RC - 36931 MR 50 R C/ X M U F T H

Model Regulator Gas Type Dosing range Pressure Gauge(y/n) Vacuum Gauge(y/n) Filter(y/n) Chlorine trap(y/n) Heater(y/n) Options: -Regulator “ R ”, means system with all general parts -Gas type, “ C ” – Cl2, “ S ” – SO2, “ N ” – NH3 -Capacity is chosen from the technical data table and the suitable number is written into the ordering code -Pressure gauge yes – “ M ”, without it the letter is not written in -Vacuum gauge yes – “ U ”, without it the letter is not written in -Filter “

Fajfarjeva 15, 1230 Domzale, Slovenija Tel. +386 1 72 13 552, Fax +386 1 72 19 360 www.controlmatik-abw.si

F ”, without it the letter is not written in; if filter is not selected then chlorine trap “ T ” is present. -“ H ” Heater : When the heater is necessary
Data is subject to change without notice.
