Dosing devices for aggressive gases and fluids / Dosing devices for gasses / Systems of Pressure regulators Principle of installation of the pressure regulator Complete system M 30 RC :

- Pressure regulator - Diffuser - Three way valve - Accessories System of pressure regulators M 30 RC is equipped with a reducing valve which prevents the chlorine gas to enter under large pressure. The pre- ssure is reduced to a 1,2 bar maximum. Exhaust sho- uld be made so that the remainig chlorine gas in the pipline is neutralised. The diffuser should be mounted at least 1,2 m below water level and maximum of 7m, because the higher the feed rate the greater should be the depth. Because of the influences of temperature and quality of the media, the bubbles and other fac- tors, always choose the deepest point to insure best possible absorption.

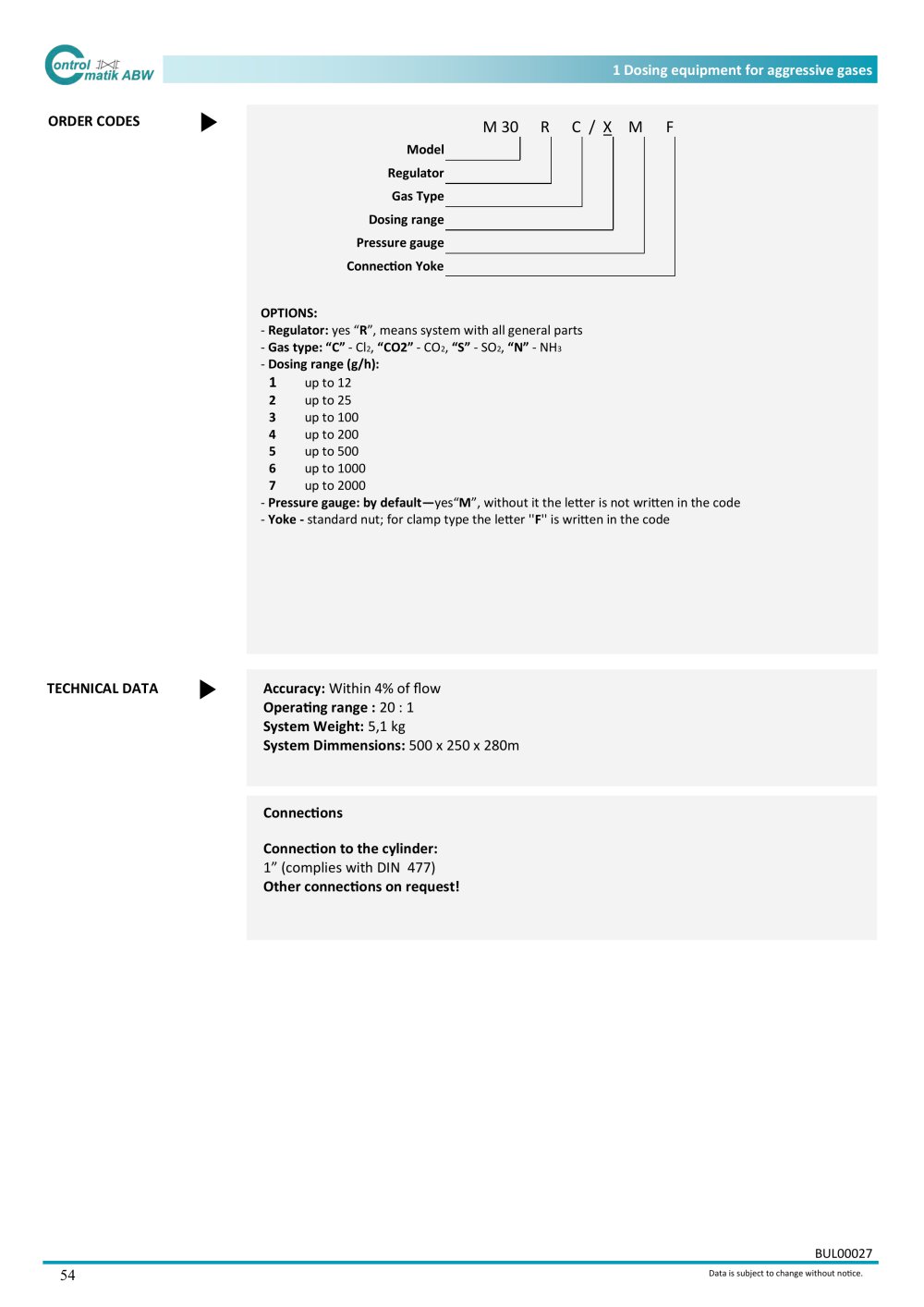

Order codes :

System of pressure regulators M 30 RC - 36931 M 30 R C/ X M

Model RegulatorGas Type Dosing range Pressure gauge(yes/no) Gas Types :C =Cl Technical data :Dosing range : (in g/h)
2 S =SO
2 1 up to................12 Regulation Ratio : 2 up to................25 1 : 20 3 up to..............100 Connection to the cylinder : 4 up to..............200 1” (complies with DIN 477) 5 up to..............500 6 up to............1000 Weight and dimensions of the system : Fajfarjeva 15, 1230 Domzale, Slovenija Tel. +386 1 72 13 552, Fax +386 1 72 19 360 www.controlmatik-abw.si 7 up to............2000 Gross: 6,3 kg Nett: 5,1 kg Dim: 500 x 250 x 280mm Dosing Precision : ± 4% of the set value
Data is subject to change without notice.
