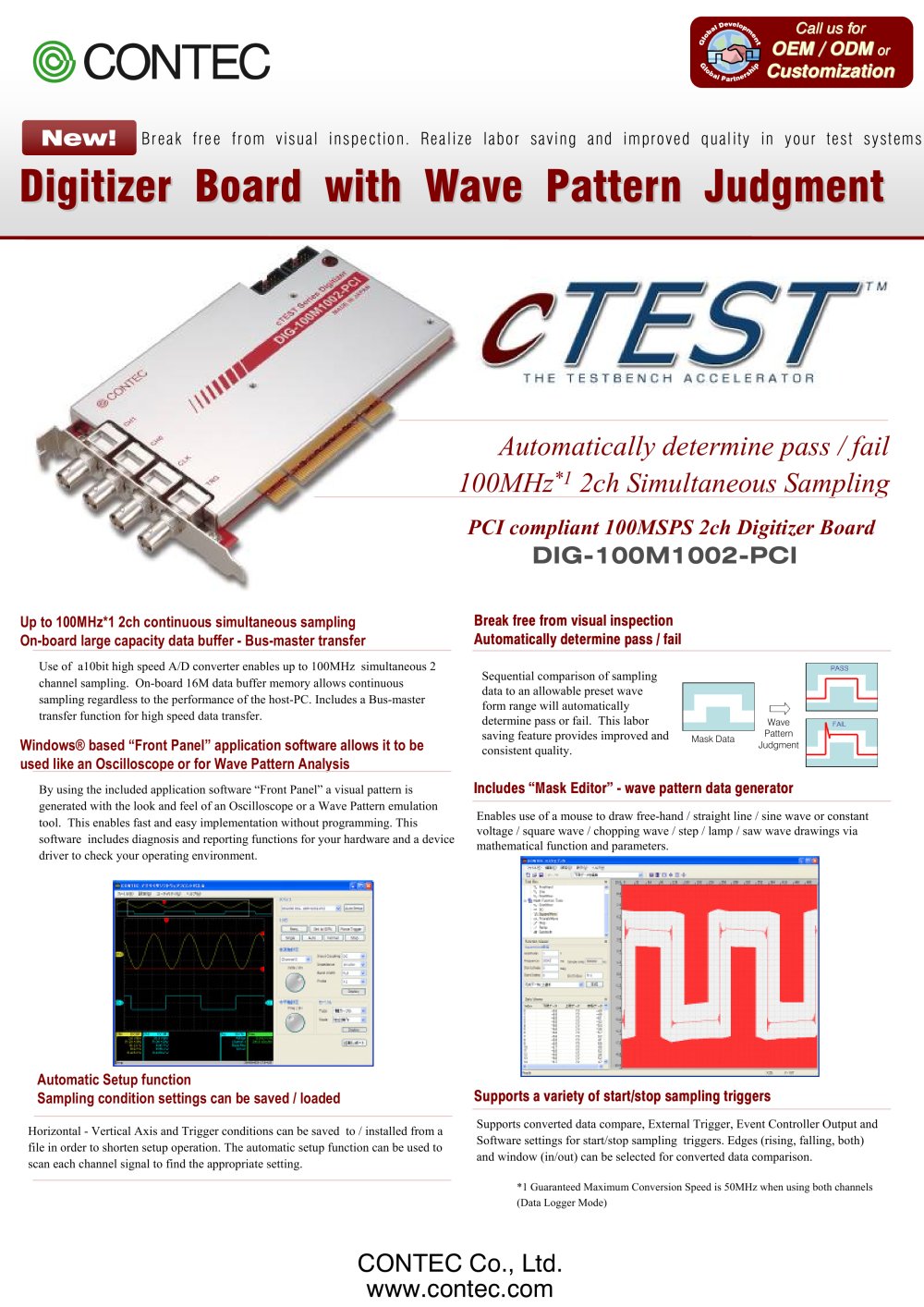

Break free from visual inspection. Realize labor saving and improved quality in your test systems Up to 100MHz*1 2ch continuous simultaneous sampling On-board large capacity data buffer - Bus-master transfer Use of a10bit high speed A/D converter enables up to 100MHz simultaneous 2 channel sampling. On-board 16M data buffer memory allows continuous sampling regardless to the performance of the host-PC. Includes a Bus-master transfer function for high speed data transfer. Digitizer Board with Wave Pattern Judgment Break free from visual inspection Automatically determine pass / fail PCI compliant 100MSPS 2ch Digitizer Board Automatically determine pass / fail 100MHz*1 2ch Simultaneous Sampling DIG-100M1002-PCI Includes “Mask Editor” - wave pattern data generator Enables use of a mouse to draw free-hand / straight line / sine wave or constant voltage / square wave / chopping wave / step / lamp / saw wave drawings via mathematical function and parameters. Windows® based “Front Panel” application software allows it to be used like an Oscilloscope or for Wave Pattern Analysis By using the included application software “Front Panel” a visual pattern is generated with the look and feel of an Oscilloscope or a Wave Pattern emulation tool. This enables fast and easy implementation without programming. This software includes diagnosis and reporting functions for your hardware and a device driver to check your operating environment. Supports converted data compare, External Trigger, Event Controller Output and Software settings for start/stop sampling triggers. Edges (rising, falling, both) and window (in/out) can be selected for converted data comparison. Supports a variety of start/stop sampling triggers Horizontal - Vertical Axis and Trigger conditions can be saved to / installed from a file in order to shorten setup operation. The automatic setup function can be used to scan each channel signal to find the appropriate setting. Automatic Setup function Sampling condition settings can be saved / loaded *1 Guaranteed Maximum Conversion Speed is 50MHz when using both channels (Data Logger Mode) Call us for OEM / ODM or Customization CONTEC Co., Ltd. www.contec.com New! Mask Data Wave Pattern Judgment Sequential comparison of sampling data to an allowable preset wave form range will automatically determine pass or fail. This labor saving feature provides improved and consistent quality.
