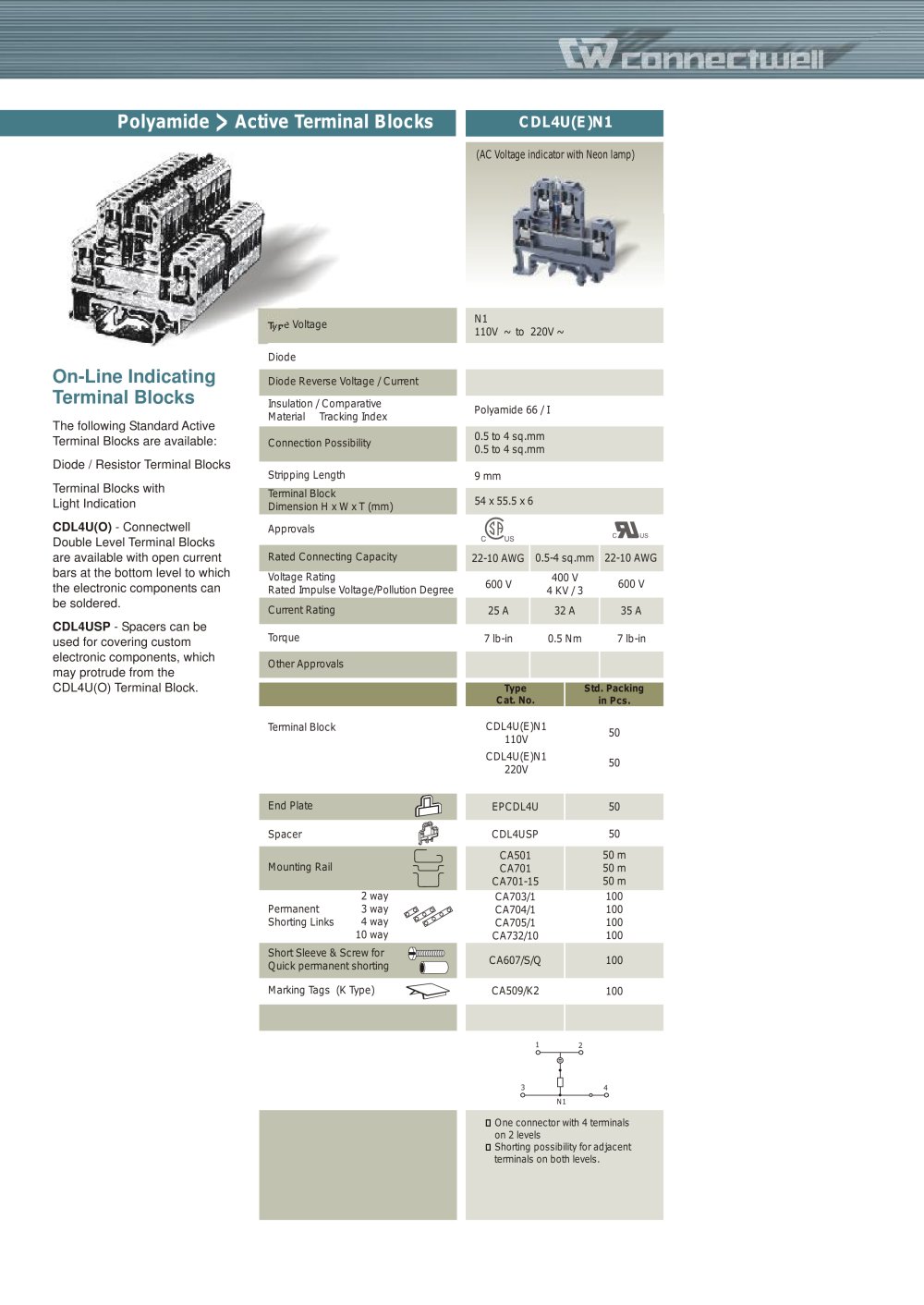

Polyamide > Active Terminal Blocks

CDL4U(E)N1

(AC Voltage indicator with Neon lamp)

110V ~ to 220V ~

Diode

Diode Reverse Voltage / Current

Insulation / Comparative Material Tracking Index

Connection Possibility

Stripping Length

Terminal Block Dimension H x W x T (mm)

Approvals

Rated Connecting Capacity Voltage Rating

Rated Impulse Voltage/Pollution Degree Current Rating

Torque

Other Approvals

On-Line Indicating Terminal Blocks

The following Standard Active Terminal Blocks are available:

Diode / Resistor Terminal Blocks

Terminal Blocks with Light Indication

CDL4U(O) - Connectwell Double Level Terminal Blocks are available with open current bars at the bottom level to which the electronic components can be soldered.

CDL4USP - Spacers can be used for covering custom electronic components, which may protrude from the CDL4U(O) Terminal Block.

Polyamide 66 / I

0.5 to 4 sq.mm 0.5 to 4 sq.mm

9 mm

54 x 55.5 x 6


_cv^_us
22-10 AWG 0.5-4 sq.mm		22-10 AWG
600 V	400 V 4 KV / 3	600 V
25 A	32 A	35 A
7 lb-in	0.5 Nm	7 lb-in
Type	Std. Packing
Cat. No.		in Pcs.
CDL4U(E)N1 110V		50
CDL4U(E)N1 220V		50
EPCDL4U		50
CDL4USP		50
CA501		50 m
CA701		50 m
CA701-15		50 m
CA703/1		100
CA704/1		100
CA705/1		100
CA732/10		100
CA607/S/Q		100
CA509/K2		100

Terminal Block

End Plate Spacer

Mounting Rail

2 way

Permanent Shorting Links

3 way

4 way

10 way

Short Sleeve & Screw for Quick permanent shorting

Marking Tags (K Type)

□ One connector with 4 terminals on 2 levels

□ Shorting possibility for adjacent terminals on both levels.
