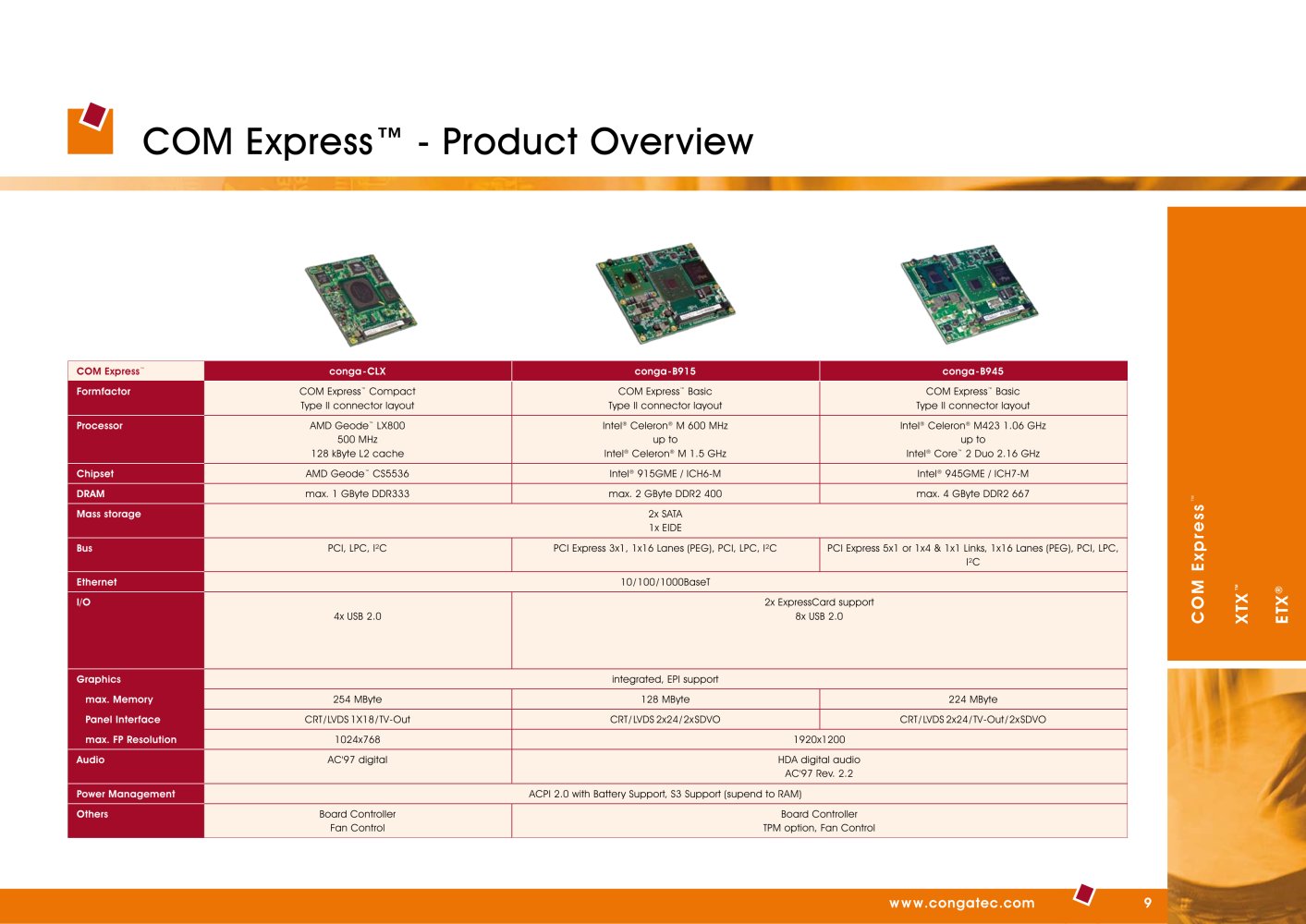

COM Express ™ - Product Overview
COM Express™ conga-CLXconga-B915conga-B945Formfactor COM Express
™ CompactType II connector layoutCOM Express
™ BasicType II connector layoutCOM Express
™ BasicType II connector layout Processor AMD Geode
™ LX800500 MHz 128 kByte L2 cacheIntel
® Celeron
® M 600 MHzup toIntel
® Celeron
® M423 1.06 GHzup toIntel
® Celeron
® M 1.5 GHzIntel
® Core
™ 2 Duo 2.16 GHz Chipset AMD Geode
™ CS5536Intel
® 915GME / ICH6-MIntel
® 945GME / ICH7-M DRAM max. 1 GByte DDR333max. 2 GByte DDR2 400max. 4 GByte DDR2 667
™ Mass storage 2x SATA1x EIDE Bus PCI, LPC, I˛CPCI Express 3x1, 1x16 Lanes (PEG), PCI, LPC, I˛CPCI Express 5x1 or 1x4 & 1x1 Links, 1x16 Lanes (PEG), PCI, LPC, I˛C Ethernet 10/100/1000BaseT
™ ™ ® ® I/O 4x USB 2.02x ExpressCard support8x USB 2.0
COM Express ETXAccessoriesXTX XTX XTX ETX ETX Graphics integrated, EPI support max. Memory 254 MByte128 MByte224 MByte Panel Interface CRT/LVDS 1X18/TV-OutCRT/LVDS 2x24/2xSDVOCRT/LVDS 2x24/TV-Out/2xSDVO max. FP Resolution 1024x7681920x1200 Audio AC'97 digitalHDA digital audioAC'97 Rev. 2.2 Power Management ACPI 2.0 with Battery Support, S3 Support (supend to RAM) Others Board ControllerFan ControlBoard ControllerTPM option, Fan Control
