W Low power consumption

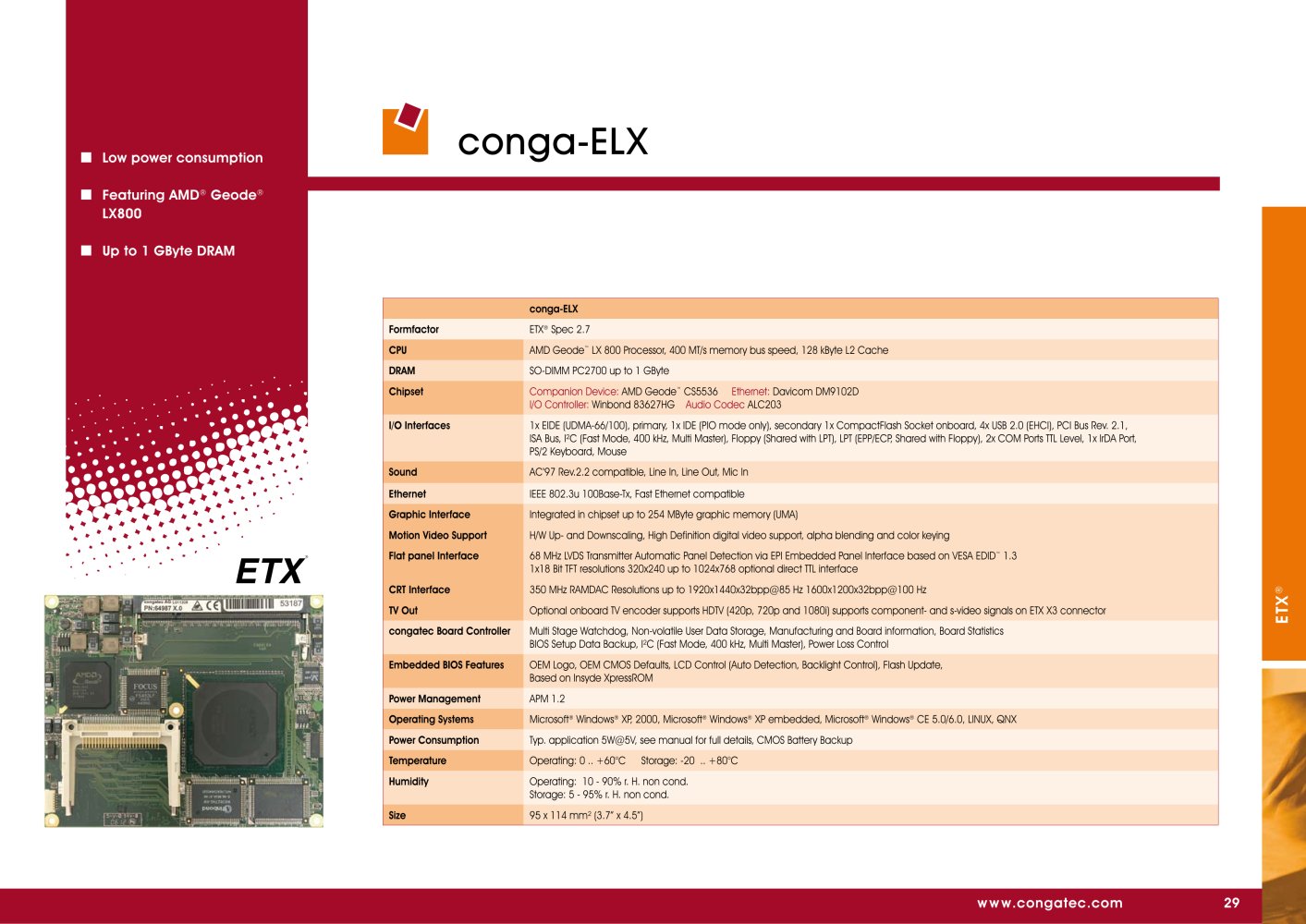

Product guide 2008 - 34385 conga-ELX
W Featuring AMD
®Geode
®LX800 Up to 1 GByte DRAM W
conga-ELXFormfactor ETX® Spec 2.7 CPU AMD Geode
™ LX 800 Processor, 400 MT/s memory bus speed, 128 kByte L2 Cache DRAM SO-DIMM PC2700 up to 1 GByte Chipset Companion Device: AMD Geode
™ CS5536 Ethernet: Davicom DM9102D I/O Controller: Winbond 83627HG Audio Codec ALC203 I/O Interfaces 1x EIDE (UDMA-66/100), primary, 1x IDE (PIO mode only), secondary 1x CompactFlash Socket onboard, 4x USB 2.0 (EHCI), PCI Bus Rev. 2.1, ISA Bus, I˛C (Fast Mode, 400 kHz, Multi Master), Floppy (Shared with LPT), LPT (EPP/ECP, Shared with Floppy), 2x COM Ports TTL Level, 1x IrDA Port, PS/2 Keyboard, Mouse Sound AC‘97 Rev.2.2 compatible, Line In, Line Out, Mic In Ethernet IEEE 802.3u 100Base-Tx, Fast Ethernet compatible Graphic Interface Integrated in chipset up to 254 MByte graphic memory (UMA) Motion Video Support H/W Up- and Downscaling, High Definition digital video support, alpha blending and color keying
™
ETX
® Flat panel Interface 68 MHz LVDS Transmitter Automatic Panel Detection via EPI Embedded Panel Interface based on VESA EDID 1.3 1x18 Bit TFT resolutions 320x240 up to 1024x768 optional direct TTL interface CRT Interface 350 MHz RAMDAC Resolutions up to 1920x1440x32bpp@85 Hz 1600x1200x32bpp@100 Hz® TV Out Optional onboard TV encoder supports HDTV (420p, 720p and 1080i) supports component- and s-video signals on ETX X3 connector
Accessories ETX congatec Board Controller Multi Stage Watchdog, Non-volatile User Data Storage, Manufacturing and Board information, Board Statistics BIOS Setup Data Backup, I˛C (Fast Mode, 400 kHz, Multi Master), Power Loss Control Embedded BIOS Features OEM Logo, OEM CMOS Defaults, LCD Control (Auto Detection, Backlight Control), Flash Update, Based on Insyde XpressROM Power Management APM 1.2 Operating Systems Microsoft
® Windows
® XP, 2000, Microsoft
® Windows
® XP embedded, Microsoft
® Windows
® CE 5.0/6.0, LINUX, QNX Power Consumption Typ. application 5W@5V, see manual for full details, CMOS Battery Backup Temperature Operating: 0 .. +60°C Storage: -20 .. +80°C Humidity Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond. Size 95 x 114 mm˛ (3.7” x 4.5”)
