W Featuring the latest Intel

®

Core™ 2 Duo LV Processors up to 1.5 GHz Provides up to 2 GByte

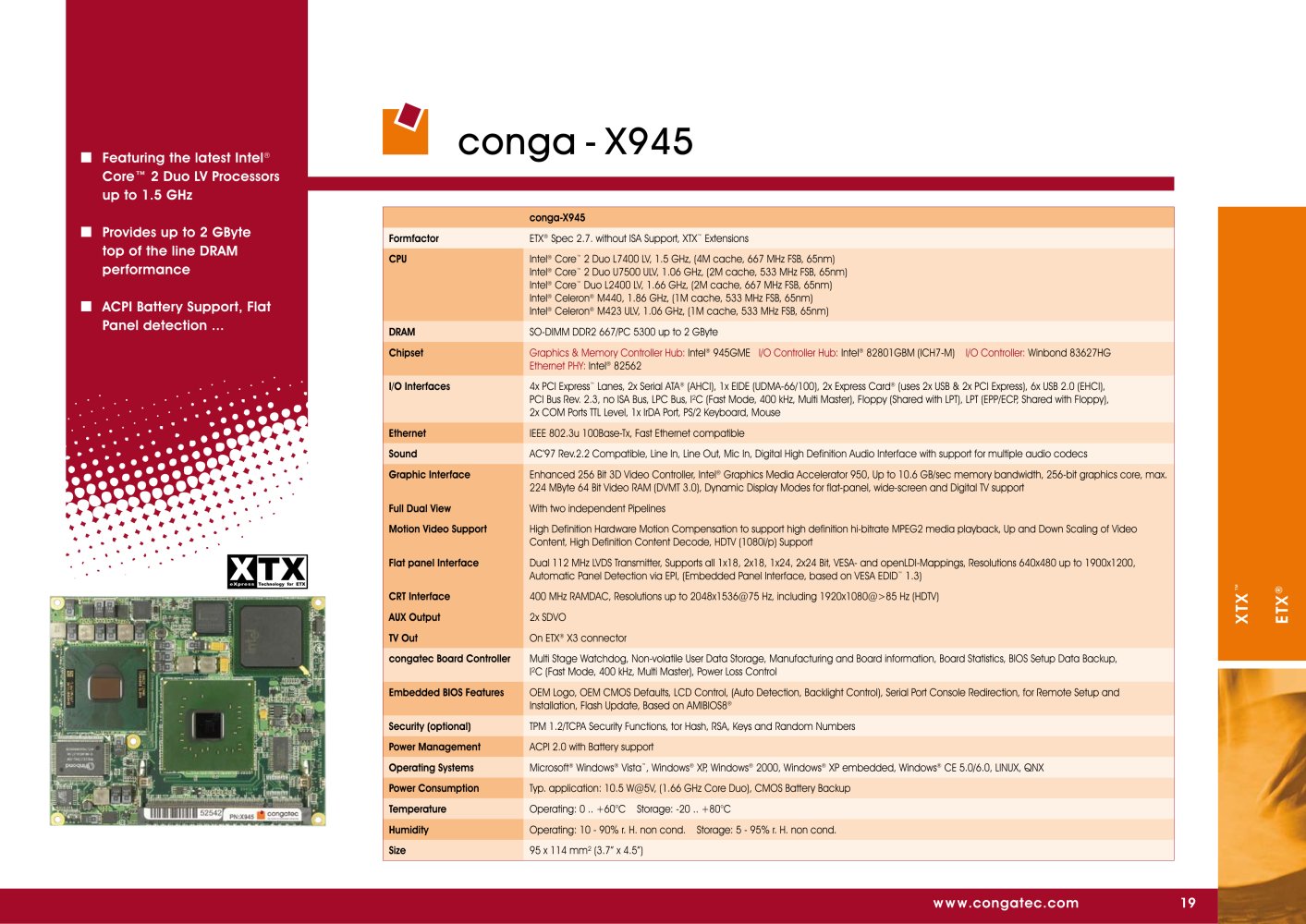

Product guide 2008 - 34385 conga-X945

W top of the line DRAM performance ACPI Battery Support, Flat

conga-X945Formfactor

W

ETX
® Spec 2.7. without ISA Support, XTX
™ Extensions

Panel detection ...

CPU Intel
® Core
™ 2 Duo L7400 LV, 1.5 GHz, (4M cache, 667 MHz FSB, 65nm)Intel
® Core
™ 2 Duo U7500 ULV, 1.06 GHz, (2M cache, 533 MHz FSB, 65nm)Intel
® Core
™ Duo L2400 LV, 1.66 GHz, (2M cache, 667 MHz FSB, 65nm)Intel
® Celeron
® M440, 1.86 GHz, (1M cache, 533 MHz FSB, 65nm)Intel
® Celeron
® M423 ULV, 1.06 GHz, (1M cache, 533 MHz FSB, 65nm) DRAM SO-DIMM DDR2 667/PC 5300 up to 2 GByte Chipset Graphics & Memory Controller Hub: Intel
® 945GME I/O Controller Hub: Intel
® 82801GBM (ICH7-M) I/O Controller: Winbond 83627HG Ethernet PHY: Intel
® 82562 I/O Interfaces 4x PCI Express
™ Lanes, 2x Serial ATA
® (AHCI), 1x EIDE (UDMA-66/100), 2x Express Card
® (uses 2x USB & 2x PCI Express), 6x USB 2.0 (EHCI), PCI Bus Rev. 2.3, no ISA Bus, LPC Bus, I²C (Fast Mode, 400 kHz, Multi Master), Floppy (Shared with LPT), LPT (EPP/ECP, Shared with Floppy), 2x COM Ports TTL Level, 1x IrDA Port, PS/2 Keyboard, Mouse Ethernet IEEE 802.3u 100Base-Tx, Fast Ethernet compatible Sound AC‘97 Rev.2.2 Compatible, Line In, Line Out, Mic In, Digital High Definition Audio Interface with support for multiple audio codecs Graphic Interface Enhanced 256 Bit 3D Video Controller, Intel
® Graphics Media Accelerator 950, Up to 10.6 GB/sec memory bandwidth, 256-bit graphics core, max. 224 MByte 64 Bit Video RAM (DVMT 3.0), Dynamic Display Modes for flat-panel, wide-screen and Digital TV support Full Dual View With two independent Pipelines Motion Video Support High Definition Hardware Motion Compensation to support high definition hi-bitrate MPEG2 media playback, Up and Down Scaling of Video Content, High Definition Content Decode, HDTV (1080i/p) Support Flat panel Interface Dual 112 MHz LVDS Transmitter, Supports all 1x18, 2x18, 1x24, 2x24 Bit, VESA- and openLDI-Mappings, Resolutions 640x480 up to 1900x1200, Automatic Panel Detection via EPI, (Embedded Panel Interface, based on VESA EDID
™ 1.3)
™ CRT Interface 400 MHz RAMDAC, Resolutions up to 2048x1536@75 Hz, including 1920x1080@>85 Hz (HDTV)
® AUX Output 2x SDVO
COM ExpressETXAccessories XTX ETX TV Out On ETX
® X3 connector congatec Board Controller Multi Stage Watchdog, Non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup Data Backup, I²C (Fast Mode, 400 kHz, Multi Master), Power Loss Control Embedded BIOS Features OEM Logo, OEM CMOS Defaults, LCD Control, (Auto Detection, Backlight Control), Serial Port Console Redirection, for Remote Setup and Installation, Flash Update, Based on AMIBIOS8
® Security (optional) TPM 1.2/TCPA Security Functions, tor Hash, RSA, Keys and Random Numbers Power Management ACPI 2.0 with Battery support Operating Systems Microsoft
® Windows
® Vista
™ , Windows
® XP, Windows
® 2000, Windows
® XP embedded, Windows
® CE 5.0/6.0, LINUX, QNX Power Consumption Typ. application: 10.5 W@5V, (1.66 GHz Core Duo), CMOS Battery Backup Temperature Operating: 0 .. +60°C Storage: -20 .. +80°C Humidity Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond. Size 95 x 114 mm² (3.7” x 4.5”)
