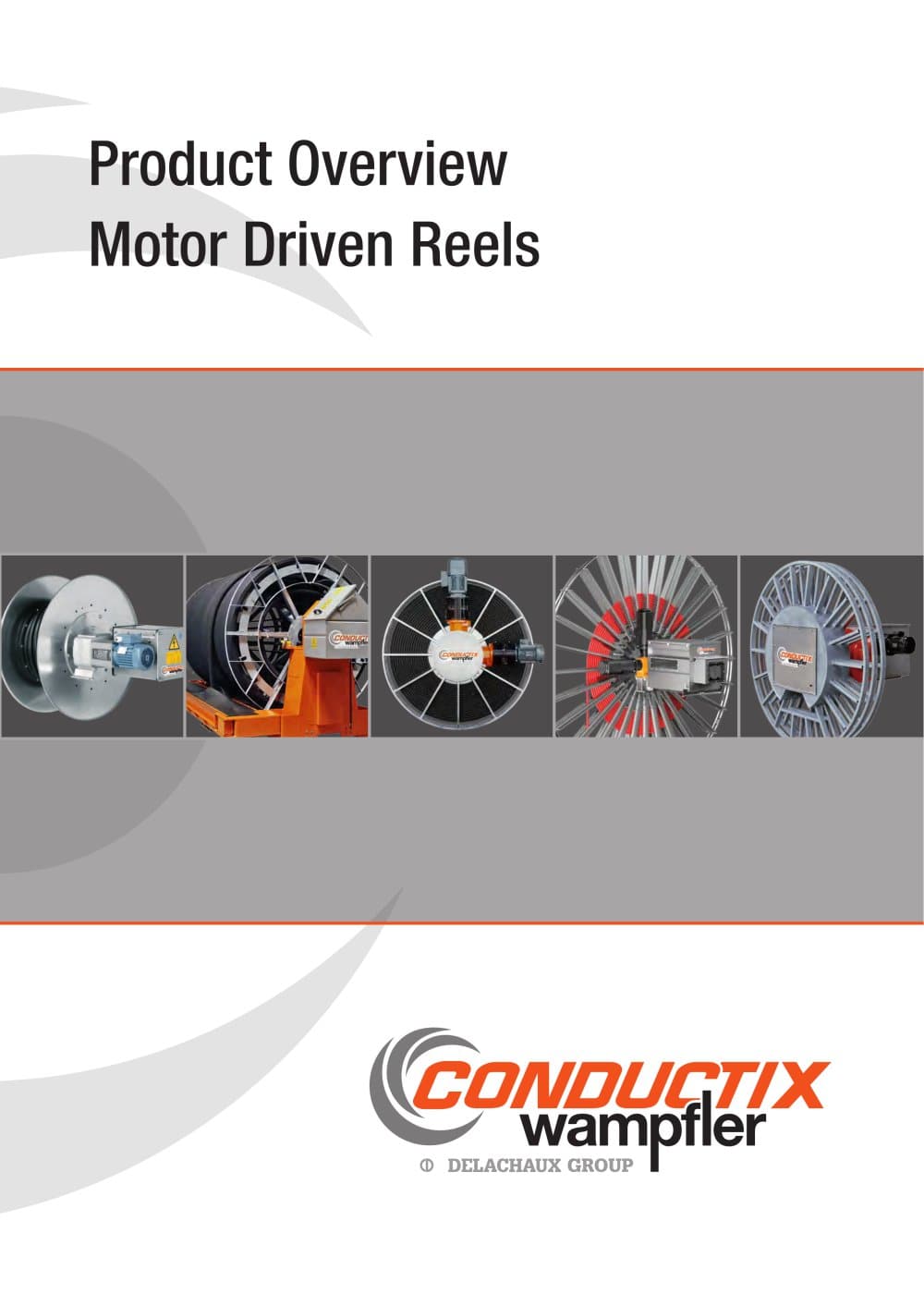

Product Overview Motor Driven Reels

Open the catalog to page 1
Product Overview Motorized Reels - 3

An all round solution for cable and hose management Where ever goods and people are in motion, you will find customengineered motor driven reels designed and built by Conductix-Wampfler. If you need to manage critical power cables, data cables, air hoses, or fluid hoses, we have the ideal solutions! Our many years of experience in developing and manufacturing motorized reeling systems have resulted in a sophisticated and highly developed product line. For the management of low voltage and high voltage cables or hoses, Conductix-Wampfler motor driven reels cater to all kinds of applications....

Open the catalog to page 3
Product Overview Motorized Reels - 4

Conductix-Wampfler Motor Driven Reels j Cable or hose S Spool S Gearbox ft Drive unit ft Rotary joint in housing ft Limit switch ft Diverter ft Rollerbox ft Cable guide

Open the catalog to page 4
Product Overview Motorized Reels - 5

Conductix-Wampfler Motor Driven Reels Typical Reel Parameters What are your requirements? Speed [m/min] 300 Spool Types (See Pages 14-15)

Open the catalog to page 5
Product Overview Motorized Reels - 7

Conductix-Wampfler Motor Driven Reels I Compact Typical applications - Gantry cranes - Overhead cranes - Grabs or magnets - Transfer cars - Waste water treatment facilities - Theater stage rigging Optimal corrosion protection even in tough environments. Flanges and reel drum are manufactured from hot dip galvanized steel. Reliable operation with standardized slip ring assembly. Highly durable, maintenance-free and contactless torque transmission -standard motor with magnetic coupler. Specifications Travel speed Up to 100 m/min OD of spool Random wind spool: 400 mm - 1700 mm Monospiral spool...

Open the catalog to page 7
Product Overview Motorized Reels - 8

Conductix-Wampfler Motor Driven Reels

Open the catalog to page 8
Product Overview Motorized Reels - 9

Conductix-Wampfler Motor Driven Reels I Heavy Load Typical applications - Ship-to-shore (STS) cranes - Rail mounted gantry (RMG) cranes - Ship unloaders - Stackers / reclaimers - Shipbuilding cranes Modular assembly system The cable reel can be upgraded after installation by adding drive units. Magnetic Coupler Drive (MAG Drive) or Variable Frequency Drive (SMART Drive) 5 year or 15,000 hour operation before any maintenance is required Gearboxes are grease-lubricated from the factory. Optimal corrosion protection to handle aggressive environments Flanges and reel drum are manufactured from...

Open the catalog to page 9
Product Overview Motorized Reels - 10

Conductix-Wampfler Motor Driven Reels

Open the catalog to page 10
Product Overview Motorized Reels - 11

Conductix-Wampfler Motor Driven Reels I High Dynamics Typical applications - Spreader reels - Ship-to-shore (STS) cranes - Automated stacking cranes - Rail mounted gantry (RMG) cranes - Electric rubber tyred gantry (E-RTG) cranes - Intermodal cranes - Automated RTG (ARTG) cranes Sophisticated speed and torque control are ideal for machines with highly dynamic operation. Highly efficient components and low starting inertia. Smooth handling of cable increases cable lifetime and overall system reliability. Optimal corrosion protection even under aggressive conditions Flanges and reel drum are...

Open the catalog to page 11
Product Overview Motorized Reels - 12

Conductix-Wampfler Motor Driven Reels

Open the catalog to page 12
Product Overview Motorized Reels - 13

Conductix-Wampfler Motor Driven Reels I Long Range Typical applications - Stackers / reclaimers - Bucket wheel excavators - Tripper cars - Mobile conveyors - Scrapers - Stack rakes Extra long travel distance Single or multi-layer drum type spool. Skeleton-type drum for optimal cable cooling and reduced inertia. Modular platform construction allows multiple arrangements and best fit with machine structure. Rugged construction for harsh environments. Specifications Travel speed Up to 60 m/m in Slip ring assembly (Also available with rotary joint tor hose installation) SMART Drive: 1000 N m -...

Open the catalog to page 13
Product Overview Motorized Reels - 14

Conductix-Wampfler Motor Driven Reels With either a standard or a customized solution, Conductix-Wampfler is always able to provide the best type of spool for your application. The Random Wind Spool is particularly suited for short or medium lengths of cable or hose. During winding, the cable is naturally distributed around the drum without any cable guide system. Double Monospiral Spool, with two identical cables with large crosssections. The spool is one of the most critical components of a motor driven reel system. Choosing the ideal spool will optimize performance and maximize the life...

Open the catalog to page 14
Product Overview Motorized Reels - 15

Conductix-Wampfler Motor Driven Reels The Monospiral Spool wraps the cable in the same plane and prevents the cable from twisting. It is your guarantee of a longer cable life. Monospiral Spools offer maximum exposure to ambient air and best cooling of the cable. The largest Monospiral Spools can accommodate up to 700 meters of cable. Level Wind Spools are designed to accommodate cables that are 1,000 meters or longer. The cable is wound in one, two, or three layers on a cylindrical drum. The cable is layered with a guide system driven by the reel drum. • Special Spools • Level Wind Spool •...

Open the catalog to page 15
Product Overview Motorized Reels - 16

Conductix-Wampfler Motor Driven Reels Gearbox Units The gearbox unit supports all reel components and matches the rotational speed and torque to the application. Conductix-Wampfler gearboxes for compact applications: Type W This compact gearbox unit is easy to install and can handle low to medium torque requirements. The W-gearbox is available in three different sizes. Type W gearboxes provide torque values from 100 N m up to 800 N m and each is mounted inside a corrosion resistant aluminum housing. The drive unit and slip ring assembly are parallel to the hollow shaft, allowing compact...

Open the catalog to page 16
Product Overview Motorized Reels - 17

Conductix-Wampfler Motor Driven Reels Rotary Joints Slip Ring Assemblies Fiber Optic Transmitter (TFO) Conductix-Wampfler has decades of experience in the design and manufacture of slip ring assemblies. Conductix-Wampfler was one of the first cable reel manufacturers to develop a fiber optic transmitter that could meet industrial requirements. Our slip ring assemblies comply with IEC, UL, NEMA, and VDE international standards among others. ConductixWampfler slip ring assemblies are designed for the following applications: Power - Low voltage up to 690 V and 1250 A - High voltage up to...

Open the catalog to page 17
Product Overview Motorized Reels - 18

Conductix-Wampfler Motor Driven Reels Drives - Magnetic | MAG Drive Standard motor with Conductix-Wampfler magnetic coupler Induced plate Freewheel (Backstop bearing) Output Spool side Input Motor side Permanent magnet Advantages of Conductix-Wampfler MAG Drive • Optimized design for maximum magnetic hysteresis : - High efficiency and low energy consumption - Smooth constant torque to ensure long cable life • No contact: no friction, no oil, no maintenance • No loss of cable tension during power failures • Rugged built with high durability materials • Most reliable magnetic coupler on the...
