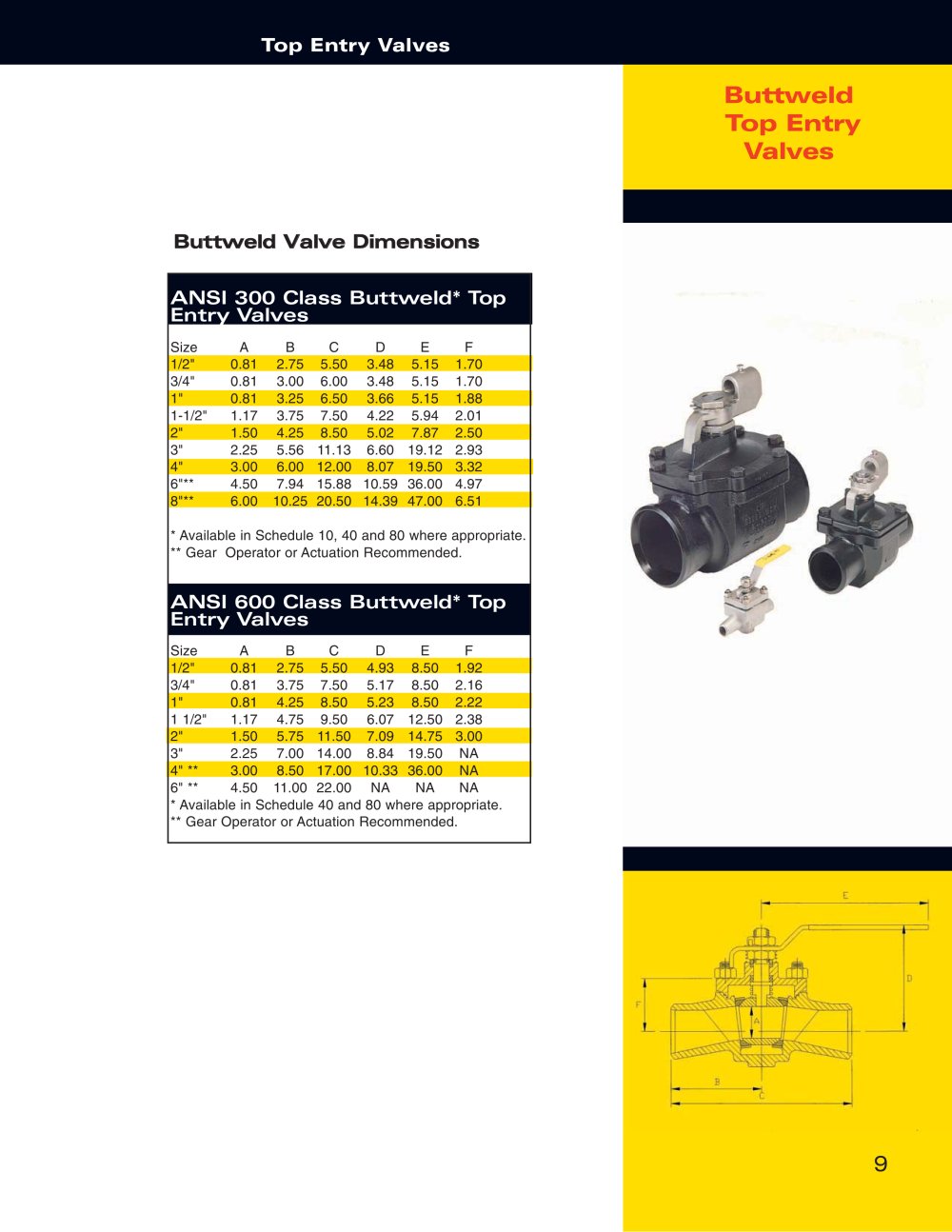

Buttweld
Top Entry
Valves
ANSI 300 Class Buttweld* Top
Entry Valves
Size A B C D E F
1/2" 0.81 2.75 5.50 3.48 5.15 1.70
3/4" 0.81 3.00 6.00 3.48 5.15 1.70
1" 0.81 3.25 6.50 3.66 5.15 1.88
1-1/2" 1.17 3.75 7.50 4.22 5.94 2.01
2" 1.50 4.25 8.50 5.02 7.87 2.50
3" 2.25 5.56 11.13 6.60 19.12 2.93
4" 3.00 6.00 12.00 8.07 19.50 3.32
6"** 4.50 7.94 15.88 10.59 36.00 4.97
8"** 6.00 10.25 20.50 14.39 47.00 6.51
* Available in Schedule 10, 40 and 80 where appropriate.
** Gear Operator or Actuation Recommended.
ANSI 600 Class Buttweld* Top
Entry Valves
Size A B C D E F
1/2" 0.81 2.75 5.50 4.93 8.50 1.92
3/4" 0.81 3.75 7.50 5.17 8.50 2.16
1" 0.81 4.25 8.50 5.23 8.50 2.22
1 1/2" 1.17 4.75 9.50 6.07 12.50 2.38
2" 1.50 5.75 11.50 7.09 14.75 3.00
3" 2.25 7.00 14.00 8.84 19.50 NA
4" ** 3.00 8.50 17.00 10.33 36.00 NA
6" ** 4.50 11.00 22.00 NA NA NA
* Available in Schedule 40 and 80 where appropriate.
** Gear Operator or Actuation Recommended.
Buttweld Valve Dimensions
9
Top Entry Valves
