P/N Suffix Key
www.apollovalves.com 9
Section IV
Heating Boilers
Dimensions and Weights
Certified
Size(in./mm.) Pressure
Model Inlet Outlet Range Wt./100 Dimensions (in./mm.)
Number NPT NPT psig (lbs./kg.) A B C D
10-604 3/4F 3/4F 15-160 232 1.03 5.25 1.62 1.56
20 20 105.2 26 133 41 39
10-614 3/4F 1 F 15-160 226 1.03 5.25 1.72 1.56
20 25 102.5 26 133 43 39
10-605 1F 1F 15-160 410 1.25 6.69 2.00 2.00
25 25 185.9 31 169 50 50
10-615 1 F 1-1/4F 15-160 390 1.25 6.69 2.00 2.00
25 32 176.9 31 169 50 50
10-606 1-1/4F 1-1/4F 15-160 795 1.25 8.37 2.47 2.62
32 32 360.5 31 212 63 67
10-616 1-1/4F 1-1/2F 15-160 755 1.25 8.37 2.47 2.62
32 40 342.4 31 212 63 67
10-607 1-1/2F 1-1/2F 15-160 1100 2.00 10.75 2.75 3.12
40 40 498.9 50 273 69 79
10-617 1-1/2F 2F 15-160 1145 2.00 10.75 2.75 3.12
40 50 519.3 50 273 69 79
10-608 2F 2F 15-160 2375 2.19 14.00 3.69 3.50
50 50 1077.1 55 355 93 88
10-618 2F 2-1/2F 15-160 2315 2.19 14.00 3.66 3.50
50 65 1049.9 55 355 92 88
B
A
D C
Set
Pressure
psig Suffix
15 -01
20 -02
22 -03
25 -04
30 -05
35 -06
40 -07
43 -08
45 -09
50 -10
55 -11
60 -12
65 -13
70 -14
75 -15
80 -16
Set
Pressure
psig Suffix
85 -17
90 -18
95 -19
100 -20
105 -21
110 -22
115 -23
120 -24
125 -25
130 -30
135 -31
140 -32
145 -33
150 -34
155 -35
160 -36
ORDERING CODE:
Use two-digit suffix number to indicate Inlet x Outlet
size and set pressure.
EXAMPLE:
10-615-12 = 1"x 1-1/4" 10-610 set 60 psig
10-608-05 = 2"x 2" 10-600 set 30 psig
High-capacity heating system valves with female inlet, expanded or standard female
outlet. Elevated seat for drainage of water away from seat area. Entire pressure
range is National Board capacity certified.
ASME Section IV
Inlet Sizes 3/4" to 2"
Pressures from 15-160 psig
Maximum temperature service 250°F
Applications: Hot water heating boilers and hot water supply systems
Features
• High Btu capacity rating
• Silicone seat
• Fabric reinforced molded diaphragm isolates spring from water at all times
• Bronze body and spring cage
• Registered in Canadian provinces and territories CRN #0G8547.5C
• Protects against excessive water pressure due to failure of controls to regulate Btu input

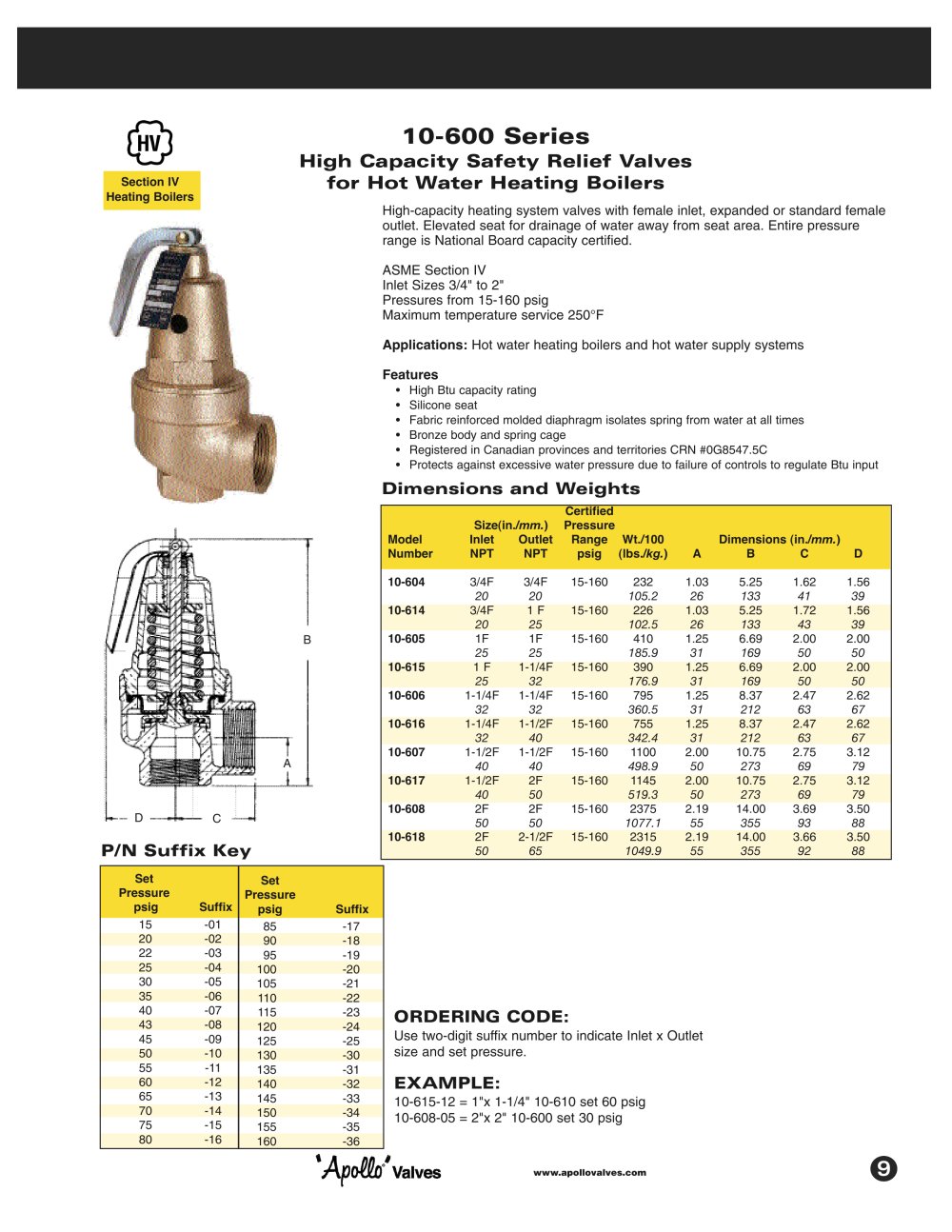

10-600 Series
High Capacity Safety Relief Valves
for Hot Water Heating Boilers
