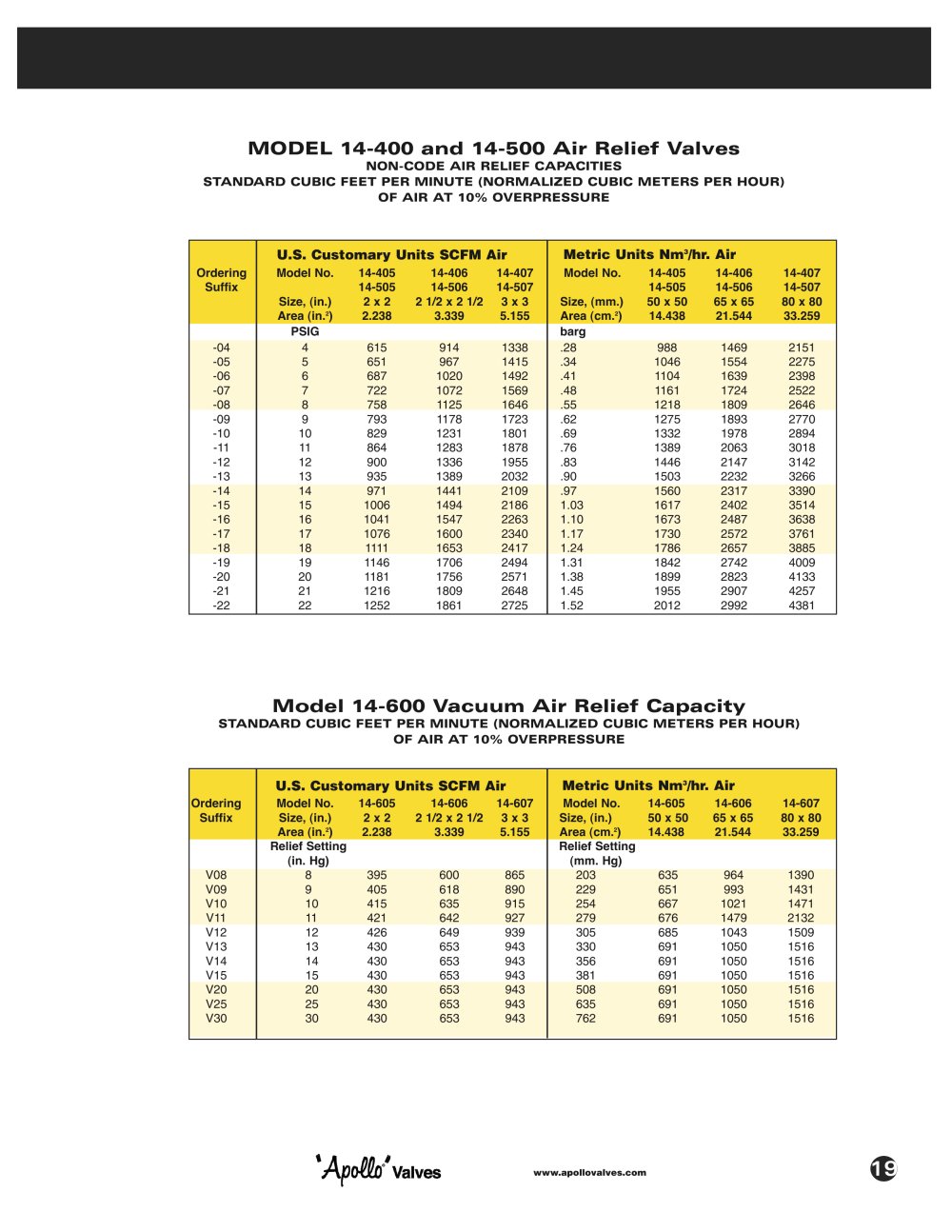

Ordering Model No. 14-405 14-406 14-407 Suffix 14-505 14-506 14-507 Size, (in.) 2 x 2 2 1/2 x 2 1/2 3 x 3 Area (in.2) 2.238 3.339 5.155 PSIG -04 4 615 914 1338 -05 5 651 967 1415 -06 6 687 1020 1492 -07 7 722 1072 1569 -08 8 758 1125 1646 -09 9 793 1178 1723 -10 10 829 1231 1801 -11 11 864 1283 1878 -12 12 900 1336 1955 -13 13 935 1389 2032 -14 14 971 1441 2109 -15 15 1006 1494 2186 -16 16 1041 1547 2263 -17 17 1076 1600 2340 -18 18 1111 1653 2417 -19 19 1146 1706 2494 -20 20 1181 1756 2571 -21 21 1216 1809 2648 -22 22 1252 1861 2725 www.apollovalves.com 19 MODEL 14-400 and 14-500 Air Relief Valves NON-CODE AIR RELIEF CAPACITIES STANDARD CUBIC FEET PER MINUTE (NORMALIZED CUBIC METERS PER HOUR) OF AIR AT 10% OVERPRESSURE Model 14-600 Vacuum Air Relief Capacity STANDARD CUBIC FEET PER MINUTE (NORMALIZED CUBIC METERS PER HOUR) OF AIR AT 10% OVERPRESSURE Ordering Model No. 14-605 14-606 14-607 Suffix Size, (in.) 2 x 2 2 1/2 x 2 1/2 3 x 3 Area (in.2) 2.238 3.339 5.155 Relief Setting (in. Hg) V08 8 395 600 865 V09 9 405 618 890 V10 10 415 635 915 V11 11 421 642 927 V12 12 426 649 939 V13 13 430 653 943 V14 14 430 653 943 V15 15 430 653 943 V20 20 430 653 943 V25 25 430 653 943 V30 30 430 653 943 Model No. 14-605 14-606 14-607 Size, (in.) 50 x 50 65 x 65 80 x 80 Area (cm.2) 14.438 21.544 33.259 Relief Setting (mm. Hg) 203 635 964 1390 229 651 993 1431 254 667 1021 1471 279 676 1479 2132 305 685 1043 1509 330 691 1050 1516 356 691 1050 1516 381 691 1050 1516 508 691 1050 1516 635 691 1050 1516 762 691 1050 1516 U.S. Customary Units SCFM Air Metric Units Nm3/hr. Air Model No. 14-405 14-406 14-407 14-505 14-506 14-507 Size, (mm.) 50 x 50 65 x 65 80 x 80 Area (cm.2) 14.438 21.544 33.259 barg .28 988 1469 2151 .34 1046 1554 2275 .41 1104 1639 2398 .48 1161 1724 2522 .55 1218 1809 2646 .62 1275 1893 2770 .69 1332 1978 2894 .76 1389 2063 3018 .83 1446 2147 3142 .90 1503 2232 3266 .97 1560 2317 3390 1.03 1617 2402 3514 1.10 1673 2487 3638 1.17 1730 2572 3761 1.24 1786 2657 3885 1.31 1842 2742 4009 1.38 1899 2823 4133 1.45 1955 2907 4257 1.52 2012 2992 4381 U.S. Customary Units SCFM Air Metric Units Nm3/hr. Air
