pipeline strainers
20Pages

{{requestButtons}}

Catalog excerpts

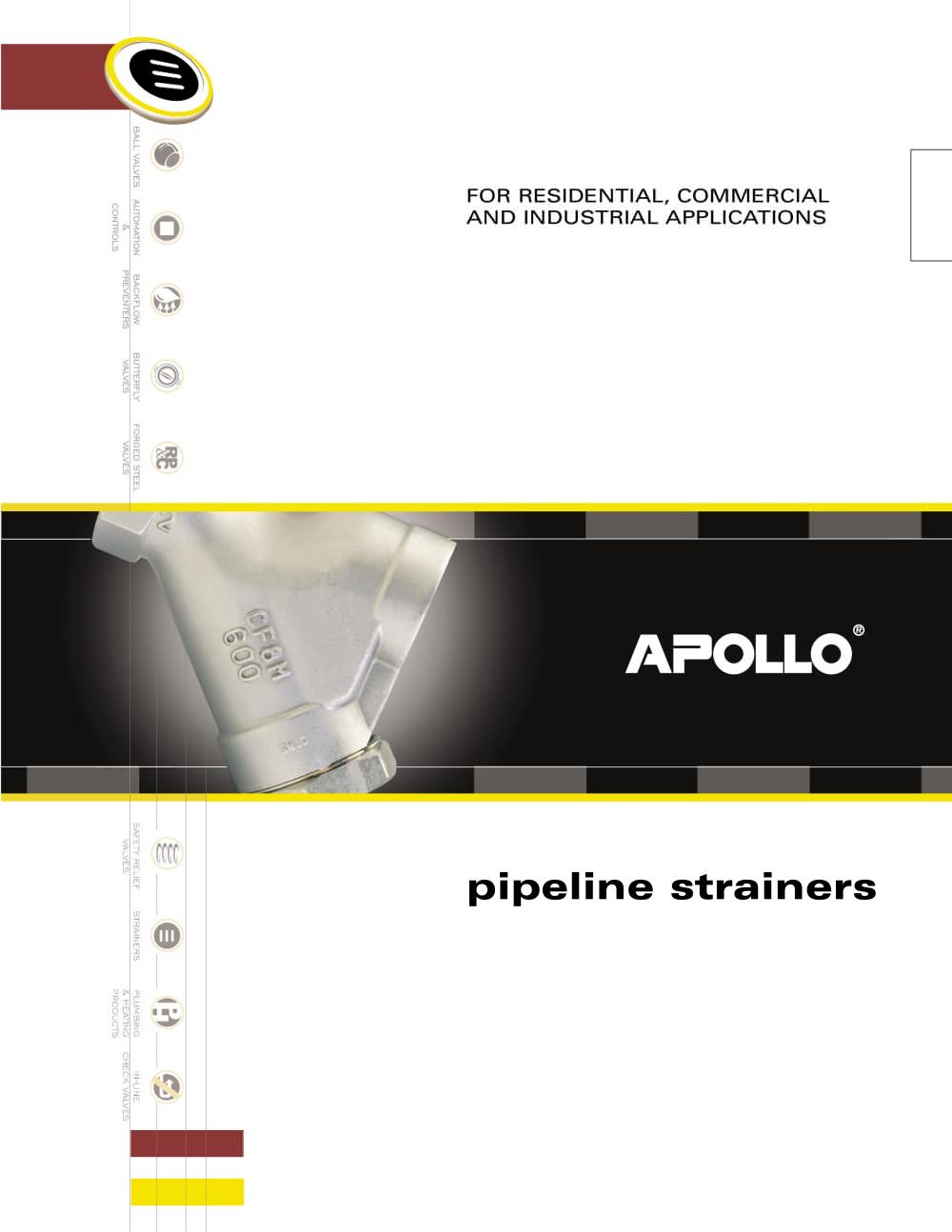

pipeline strainers - 1

pipeline strainers FOR RESIDENTIAL, COMMERCIAL AND INDUSTRIAL APPLICATIONS ®

Open the catalog to page 1
pipeline strainers - 2

Pipeline Strainers Customer Service 1-704-841-6000 Bronze NPT “Y” Strainers . . . . . . . . . . . . . . . . . . . . . . . 6 UL Listed Oil Strainers . . . . . . . . . . . . . . . . . . . . . . . . . 6 Bronze NPT “Y” Strainer / Ball Valve Combination . . . . 7 Bronze Sweat End “Y” Strainers . . . . . . . . . . . . . . . . . 8 59 V Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Cast Iron “Y” Strainers . . . . . . . . . . . . . . . . . . . . . . . . 10 Flanged Cast Bronze “Y” Strainers . . . . . . . . . . . . . . . 11 Cast Carbon Steel & 316 Stainless “Y” Strainers ....

Open the catalog to page 2
pipeline strainers - 4

Pipeline Strainers 2 Customer Service 1-704-841-6000 Part Numbering Matrix Type 603 - “Y” Type, Bolted Cover 612 - “Y” Type, Imported, Screwed 613 - “Y” Type, Imported, Flanged Connection 0 - FNPT 1 - Socket Weld 2 - Flanged, Class 125/150 3 - Flanged, Class 250/300 Material 1 - Cast Iron 2 - Carbon Steel 3 - 316 (CF8M) 4 - Ductile Iron 5 - Bronze C - Cast Iron, Epoxy Coated E - Cast Iron, Plugged Blow Off F - 316, Oxygen Cleaned G - 316, Plugged Blow Off J - Carbon Steel, Plugged Blow Off U - Cast Iron, UL Listed Size 1 - 1/4" 2 - 3/8" 3 - 1/2" 4 - 3/4" 5 - 1" 6 - 1-1/4" 7 - 1-1/2" 8 - 2"...

Open the catalog to page 4
pipeline strainers - 5

Pipeline Strainers 3 Customer Service 1-704-841-6000 Our strainer screens are made in a variety of perforations and mesh openings to best suit the application. Standard material is 304 stainless steel. Other screen materials are available on special request. When screens are constructed of very fine mesh wire cloth, they are reinforced with a rigid outer shell of perforated sheet. Perforated screens are made of sheet stainless steel, the thickness of which is not greater than half the size of the perforations. OPENING RATIOS The following steps should be taken to determine the ratio of...

Open the catalog to page 5
pipeline strainers - 6

4 Pressure drop tests for data contained on charts are based on standard screens used for liquid service. Tests conducted at Conbraco Industries, Inc.’s laboratory indicate a 25% increase in pressure drop with screens 50% clogged. These figures are based on non-reinforced screens. Flow Coefficient: The flow coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one (1) psig. To obtain the Cv factor for a given size strainer, read the capacity at the intersection with one (1) psig pressure drop. Example: Cv for a 5"...

Open the catalog to page 6
pipeline strainers - 7

Pipeline Strainers 5 Customer Service 1-704-841-6000 No. Part Material ASTM Spec Remarks 1 Body Bronze B584 2 Cap Rod Brass (1/8" – 1") B16 Bronze (1-1/4" – 4") B584 3 *Screen Stainless Steel Type 304 4 *O-Ring Teflon (1/8" thru 1/2") 5 *Gasket PTFE (3/4" thru 4") * Recommended spare parts Model Size A B C (Suffix-02) Wt./100 Screen Area (IN2) 59-000-01 1/8" 2 1-1/4 – 1/8 NPT 44.5 1.38 59-001-01 1/4" 2 1-1/4 – 1/8 NPT 42.5 1.38 59-002-01 3/8" 2-11/16 2 – 1/4 NPT 78.6 3.19 59-003-01 1/2" 2-11/16 2 – 1/4 NPT 75.1 3.19 59-004-01 3/4" 3-7/8 3-1/4 – 1/2 NPT 174 8.18 59-005-01 1" 4-3/4 4 – 3/4...

Open the catalog to page 7
pipeline strainers - 8

Pipeline Strainers 6 Customer Service 1-704-841-6000 Conbraco’s 59-00X-06 Series, with operating pressures up to 400 psig, makes an outstanding choice as a versatile multi-purpose OEM strainer. With the addition of the Apollo® Ball Valve, you receive a high quality product, engineered and designed for safety and outstanding performance. All sizes offer maximum protection against foreign particles in piping systems and process equipment. Both the strainer and the ball valve are completely corrosion resistant. The ball valve, which offers a blow-out-proof stem design, allows for excellent...

Open the catalog to page 8
pipeline strainers - 9

Pipeline Strainers 7 Customer Service 1-704-841-6000 Conbraco’s 59 Series Sweat End Y-Strainers provide excellent protection against particle contamination in piping systems and process equipment. This lightweight and compact series is designed with minimal wall thickness at the solder ends to allow for high strength solder joints. These Y-Strainers consist of bronze bodies and stainless steel screens, and are corrosion resistant. The 59 Series Sweat End Strainers are designed for operating pressures up to 400 psig and are available in sizes 1/2" through 2". Optional tapped caps are also...

Open the catalog to page 9
pipeline strainers - 10

Pipeline Strainers 8 Customer Service 1-704-841-6000 The body of the 59-V is corrosion-resistant solid cast bronze, ASTM B-584. The removable clean-out cap is solid brass bar stock, ASTM B-16. Standard screens are made of 304 stainless steel, and are 50 mesh. No. Part Material ASTM Spec Remarks 1. Body Cast Bronze B-584 2. Screen Stainless Steel Type 304 50 Mesh 3. O-Ring EPDM 4. Cap Rod Brass B-16 Note: Specify suffix -H1 for optional 100 Mesh. -C1 for optional 80 Mesh. -D1 for optional 30 Mesh. Demensional specifications (In.) Weights (Lbs.) Model Size A B Wt./100 59V-000-01 1/8 NPT 1-3/4...

Open the catalog to page 10
pipeline strainers - 11

Pipeline Strainers 9 Customer Service 1-704-841-6000 Install these hardworking strainers upstream in almost any application to protect valves, regulators, solenoids and meters from rust, dirt and pipe scale. The “TCG” Series is a rugged 250 lb. WSP-rated strainer constructed from high-tensile ASTM A-126 Class B cast iron with blowoff connections and easily removable cylindrical screens. A tapered seat allows screens to be self-aligning and assures a perfect fit. Self-cleaning is easily accomplished by opening the valve or plug connected to the blow-off outlet. (Not normally furnished...

Open the catalog to page 11
pipeline strainers - 12

Pipeline Strainers 10 Customer Service 1-704-841-6000 Flanged Cast Bronze “Y” Strainers 539 Series Class 150 & 300 Ideal for most standard industrial applications. Use to protect meters, nozzels, heat exchangers, condensers or other process equipment against debris. • WORKING PRESSURE (non-shock) 539-15 - Class 150 150 psig @ 406°F. Steam 225 psig @ 150°F. Water, Oil, Gas 539-30 - Class 300 300 psig @ 422° F. Steam 500 psig @ 150° F. Water, Oil, Gas • SELF CLEANING Accomplished by opening the blow-off connection. • SELF ALIGNING SCREENS Available in 304 SS (Standard), 316 SS, Monel and...

Open the catalog to page 12
