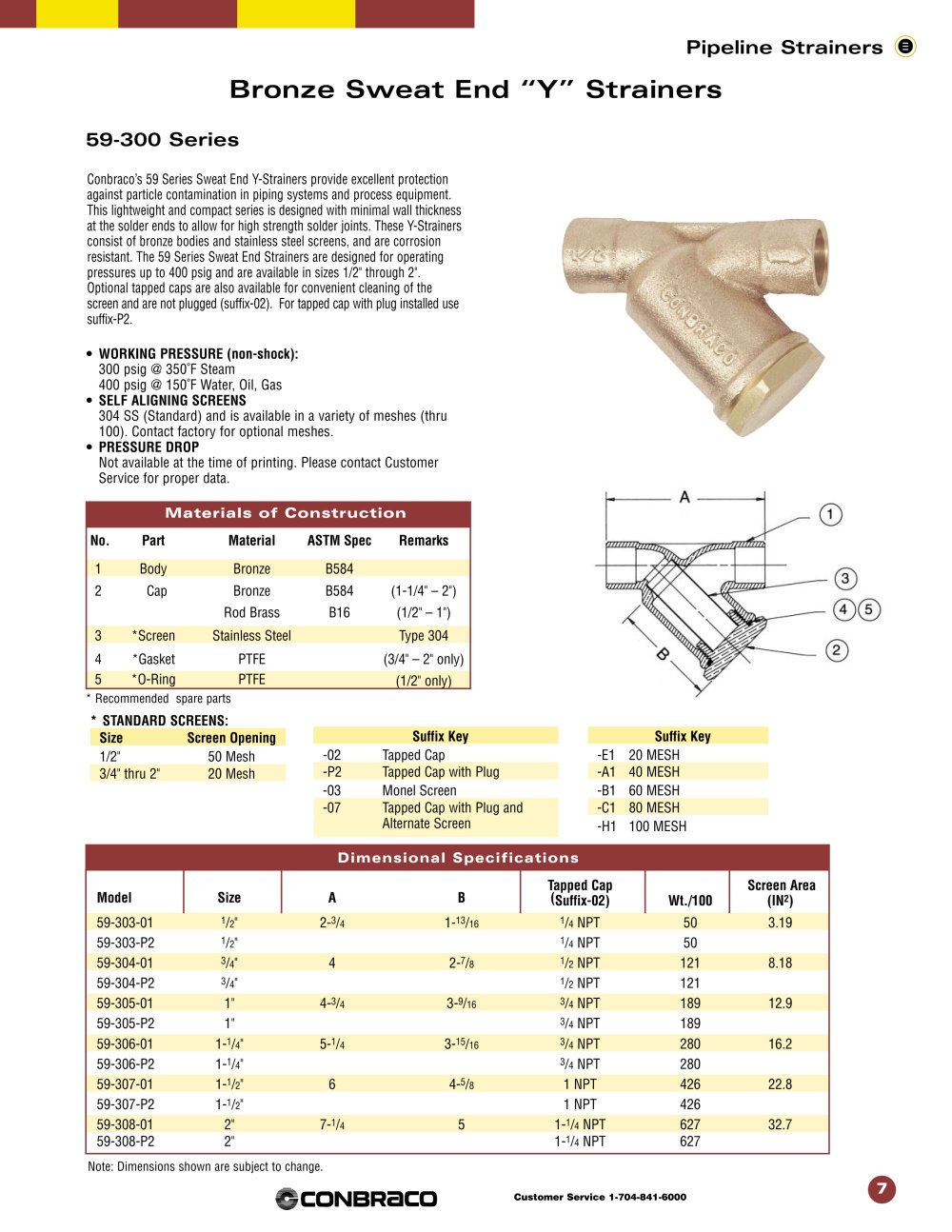

Pipeline Strainers 7 Customer Service 1-704-841-6000 Conbraco’s 59 Series Sweat End Y-Strainers provide excellent protection against particle contamination in piping systems and process equipment. This lightweight and compact series is designed with minimal wall thickness at the solder ends to allow for high strength solder joints. These Y-Strainers consist of bronze bodies and stainless steel screens, and are corrosion resistant. The 59 Series Sweat End Strainers are designed for operating pressures up to 400 psig and are available in sizes 1/2" through 2". Optional tapped caps are also available for convenient cleaning of the screen and are not plugged (suffix-02). For tapped cap with plug installed use suffix-P2. Tapped Cap Screen Area Model Size A B (Suffix-02) Wt./100 (IN2) 59-303-01 1/2" 2-3/4 1-13/16 1/4 NPT 50 3.19 59-303-P2 1/2" 1/4 NPT 50 59-304-01 3/4" 4 2-7/8 1/2 NPT 121 8.18 59-304-P2 3/4" 1/2 NPT 121 59-305-01 1" 4-3/4 3-9/16 3/4 NPT 189 12.9 59-305-P2 1" 3/4 NPT 189 59-306-01 1-1/4" 5-1/4 3-15/16 3/4 NPT 280 16.2 59-306-P2 1-1/4" 3/4 NPT 280 59-307-01 1-1/2" 6 4-5/8 1 NPT 426 22.8 59-307-P2 1-1/2" 1 NPT 426 59-308-01 2" 7-1/4 5 1-1/4 NPT 627 32.7 59-308-P2 2" 1-1/4 NPT 627 * STANDARD SCREENS: Size Screen Opening 1/2" 50 Mesh 3/4" thru 2" 20 Mesh • WORKING PRESSURE (non-shock): 300 psig @ 350°F Steam 400 psig @ 150°F Water, Oil, Gas • SELF ALIGNING SCREENS 304 SS (Standard) and is available in a variety of meshes (thru 100). Contact factory for optional meshes. • PRESSURE DROP Not available at the time of printing. Please contact Customer Service for proper data. Bronze Sweat End “Y” Strainers 59-300 Series Dimensional Specifications Note: Dimensions shown are subject to change. Suffix Key -02 Tapped Cap -P2 Tapped Cap with Plug -03 Monel Screen -07 Tapped Cap with Plug and Alternate Screen No. Part Material ASTM Spec Remarks 1 Body Bronze B584 2 Cap Bronze B584 (1-1/4" – 2") Rod Brass B16 (1/2" – 1") 3 *Screen Stainless Steel Type 304 4 *Gasket PTFE (3/4" – 2" only) 5 *O-Ring PTFE (1/2" only) * Recommended spare parts Materials of Construction Suffix Key -E1 20 MESH -A1 40 MESH -B1 60 MESH -C1 80 MESH -H1 100 MESH
