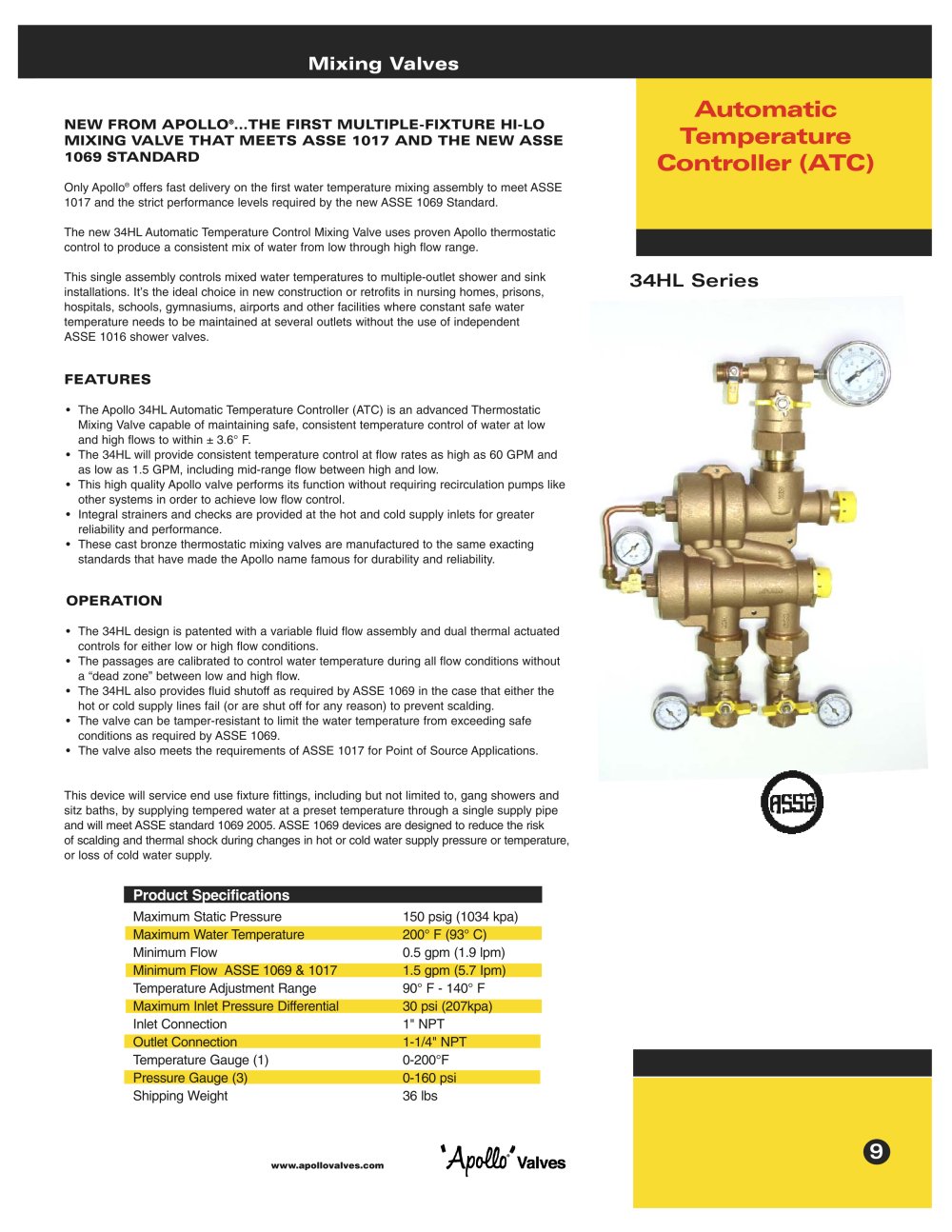

www.apollovalves.com 9 Mixing Valves NEW FROM APOLLO®...THE FIRST MULTIPLE-FIXTURE HI-LO MIXING VALVE THAT MEETS ASSE 1017 AND THE NEW ASSE 1069 STANDARD Only Apollo® offers fast delivery on the first water temperature mixing assembly to meet ASSE 1017 and the strict performance levels required by the new ASSE 1069 Standard. The new 34HL Automatic Temperature Control Mixing Valve uses proven Apollo thermostatic control to produce a consistent mix of water from low through high flow range. This single assembly controls mixed water temperatures to multiple-outlet shower and sink installations. It’s the ideal choice in new construction or retrofits in nursing homes, prisons, hospitals, schools, gymnasiums, airports and other facilities where constant safe water temperature needs to be maintained at several outlets without the use of independent ASSE 1016 shower valves. FEATURES • The Apollo 34HL Automatic Temperature Controller (ATC) is an advanced Thermostatic Mixing Valve capable of maintaining safe, consistent temperature control of water at low and high flows to within ± 3.6° F. • The 34HL will provide consistent temperature control at flow rates as high as 60 GPM and as low as 1.5 GPM, including mid-range flow between high and low. • This high quality Apollo valve performs its function without requiring recirculation pumps like other systems in order to achieve low flow control. • Integral strainers and checks are provided at the hot and cold supply inlets for greater reliability and performance. • These cast bronze thermostatic mixing valves are manufactured to the same exacting standards that have made the Apollo name famous for durability and reliability. OPERATION • The 34HL design is patented with a variable fluid flow assembly and dual thermal actuated controls for either low or high flow conditions. • The passages are calibrated to control water temperature during all flow conditions without a “dead zone” between low and high flow. • The 34HL also provides fluid shutoff as required by ASSE 1069 in the case that either the hot or cold supply lines fail (or are shut off for any reason) to prevent scalding. • The valve can be tamper-resistant to limit the water temperature from exceeding safe conditions as required by ASSE 1069. • The valve also meets the requirements of ASSE 1017 for Point of Source Applications. This device will service end use fixture fittings, including but not limited to, gang showers and sitz baths, by supplying tempered water at a preset temperature through a single supply pipe and will meet ASSE standard 1069 2005. ASSE 1069 devices are designed to reduce the risk of scalding and thermal shock during changes in hot or cold water supply pressure or temperature, or loss of cold water supply. 34HL Series Product Specifications Maximum Static Pressure 150 psig (1034 kpa) Maximum Water Temperature 200° F (93° C) Minimum Flow 0.5 gpm (1.9 lpm) Minimum Flow ASSE 1069 & 1017 1.5 gpm (5.7 Ipm) Temperature Adjustment Range 90° F - 140° F Maximum Inlet Pressure Differential 30 psi (207kpa) Inlet Connection 1" NPT Outlet Connection 1-1/4" NPT Temperature Gauge (1) 0-200°F Pressure Gauge (3) 0-160 psi Shipping Weight 36 lbs Automatic Temperature Controller (ATC)
