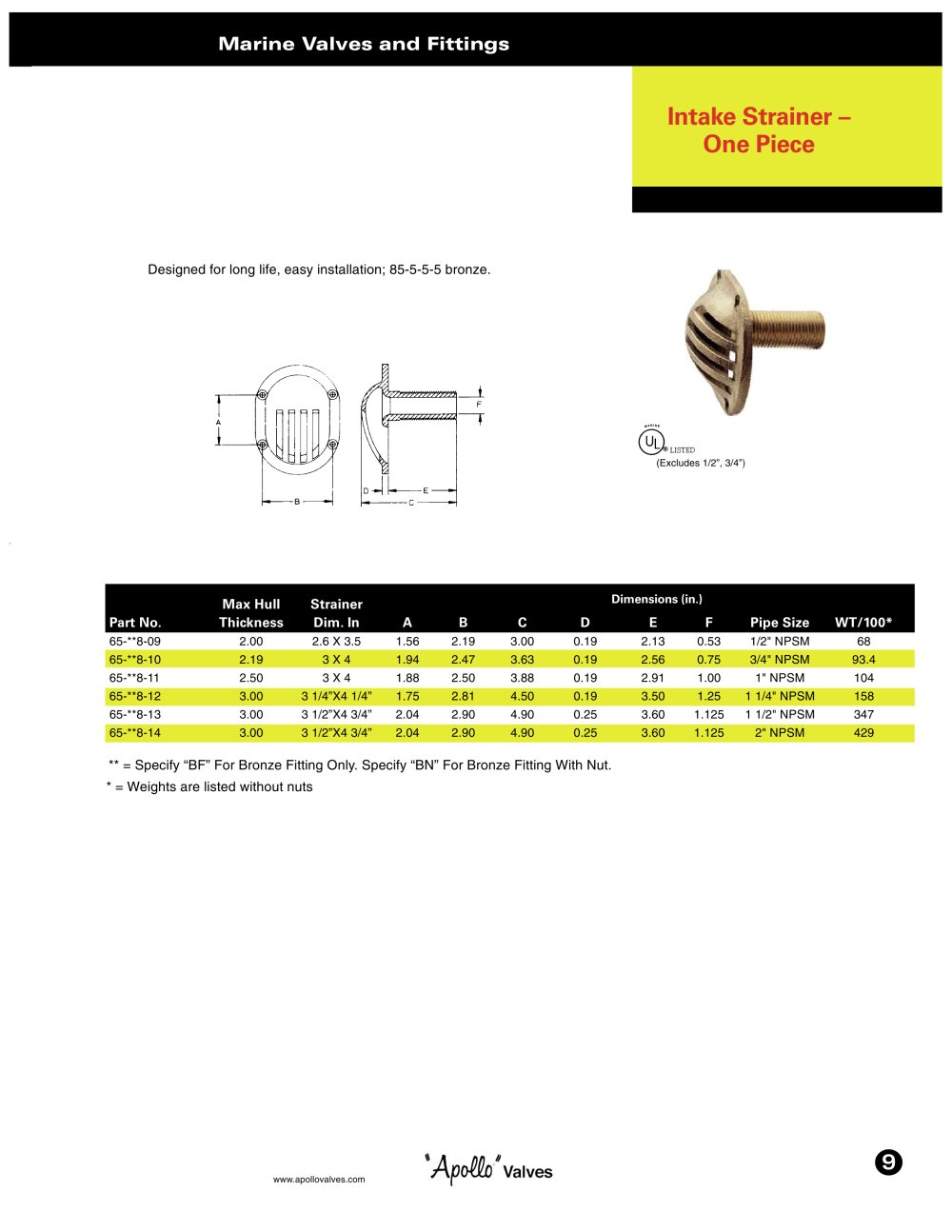

Intake Strainer – One Piece 9 www.apollovalves.com Marine Valves and Fittings Dimensions (in.) Designed for long life, easy installation; 85-5-5-5 bronze. Max Hull Strainer Part No. Thickness Dim. In A B C D E F Pipe Size WT/100* 65-**8-09 2.00 2.6 X 3.5 1.56 2.19 3.00 0.19 2.13 0.53 1/2" NPSM 68 65-**8-10 2.19 3 X 4 1.94 2.47 3.63 0.19 2.56 0.75 3/4" NPSM 93.4 65-**8-11 2.50 3 X 4 1.88 2.50 3.88 0.19 2.91 1.00 1" NPSM 104 65-**8-12 3.00 3 1/4”X4 1/4” 1.75 2.81 4.50 0.19 3.50 1.25 1 1/4" NPSM 158 65-**8-13 3.00 3 1/2”X4 3/4” 2.04 2.90 4.90 0.25 3.60 1.125 1 1/2" NPSM 347 65-**8-14 3.00 3 1/2”X4 3/4” 2.04 2.90 4.90 0.25 3.60 1.125 2" NPSM 429 ** = Specify “BF” For Bronze Fitting Only. Specify “BN” For Bronze Fitting With Nut. (Excludes 1/2”, 3/4”) * = Weights are listed without nuts
