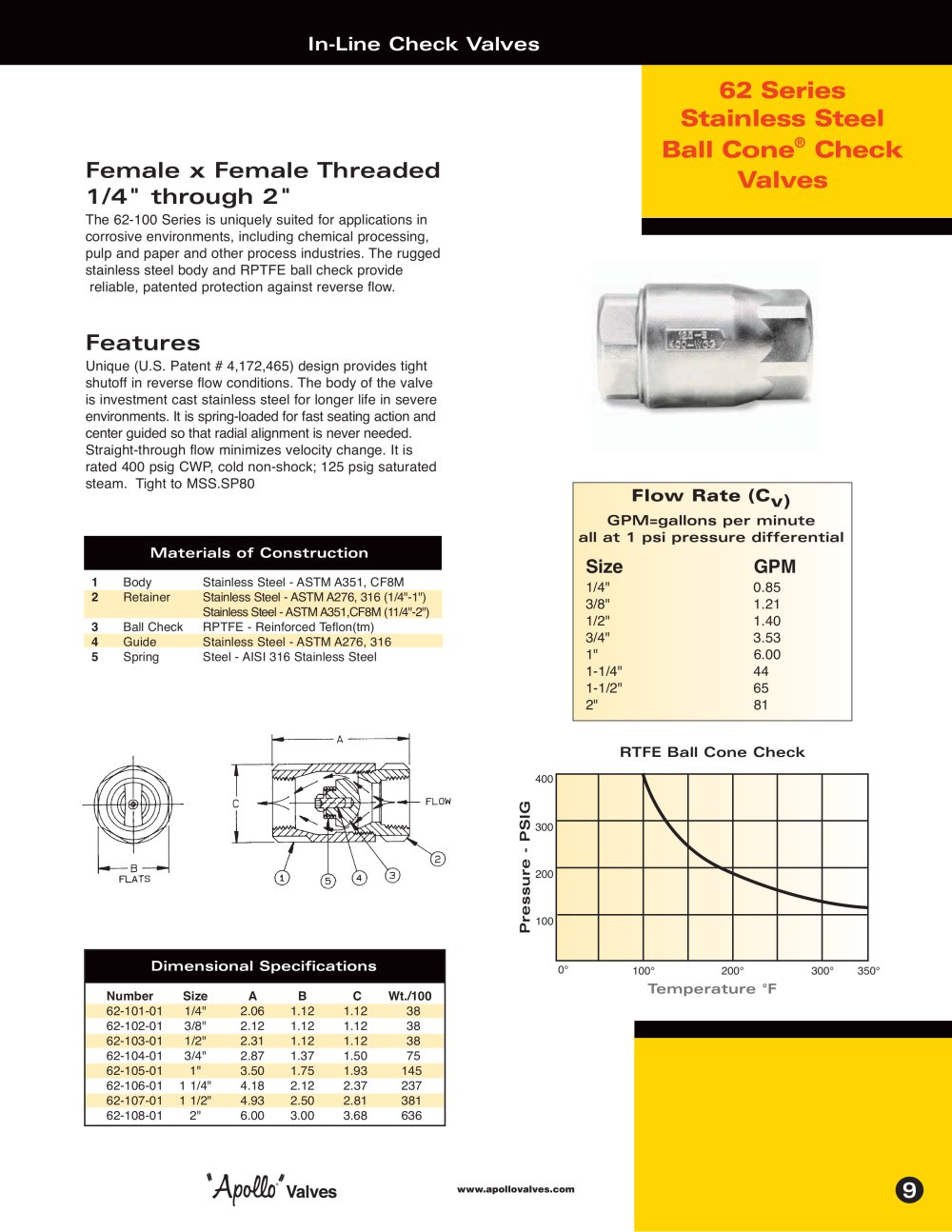

62 Series Stainless Steel Ball Cone® Check Valves www.apollovalves.com Female x Female Threaded 1/4" through 2" The 62-100 Series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow. Features Unique (U.S. Patent # 4,172,465) design provides tight shutoff in reverse flow conditions. The body of the valve is investment cast stainless steel for longer life in severe environments. It is spring-loaded for fast seating action and center guided so that radial alignment is never needed. Straight-through flow minimizes velocity change. It is rated 400 psig CWP, cold non-shock; 125 psig saturated steam. Tight to MSS.SP80 Materials of Construction 1 Body Stainless Steel - ASTM A351, CF8M 2 Retainer Stainless Steel - ASTM A276, 316 (1/4"-1") Stainless Steel - ASTM A351,CF8M (11/4"-2") 3 Ball Check RPTFE - Reinforced Teflon(tm) 4 Guide Stainless Steel - ASTM A276, 316 5 Spring Steel - AISI 316 Stainless Steel RTFE Ball Cone Check Temperature °F Pressure - PSIG 400 300 200 100 0° 100° 200° 300° 350° Flow Rate (Cv) GPM=gallons per minute all at 1 psi pressure differential Size GPM 1/4" 0.85 3/8" 1.21 1/2" 1.40 3/4" 3.53 1" 6.00 1-1/4" 44 1-1/2" 65 2" 81 9 Dimensional Specifications Number Size A B C Wt./100 62-101-01 1/4" 2.06 1.12 1.12 38 62-102-01 3/8" 2.12 1.12 1.12 38 62-103-01 1/2" 2.31 1.12 1.12 38 62-104-01 3/4" 2.87 1.37 1.50 75 62-105-01 1" 3.50 1.75 1.93 145 62-106-01 1 1/4" 4.18 2.12 2.37 237 62-107-01 1 1/2" 4.93 2.50 2.81 381 62-108-01 2" 6.00 3.00 3.68 636 In-Line Check Valves
