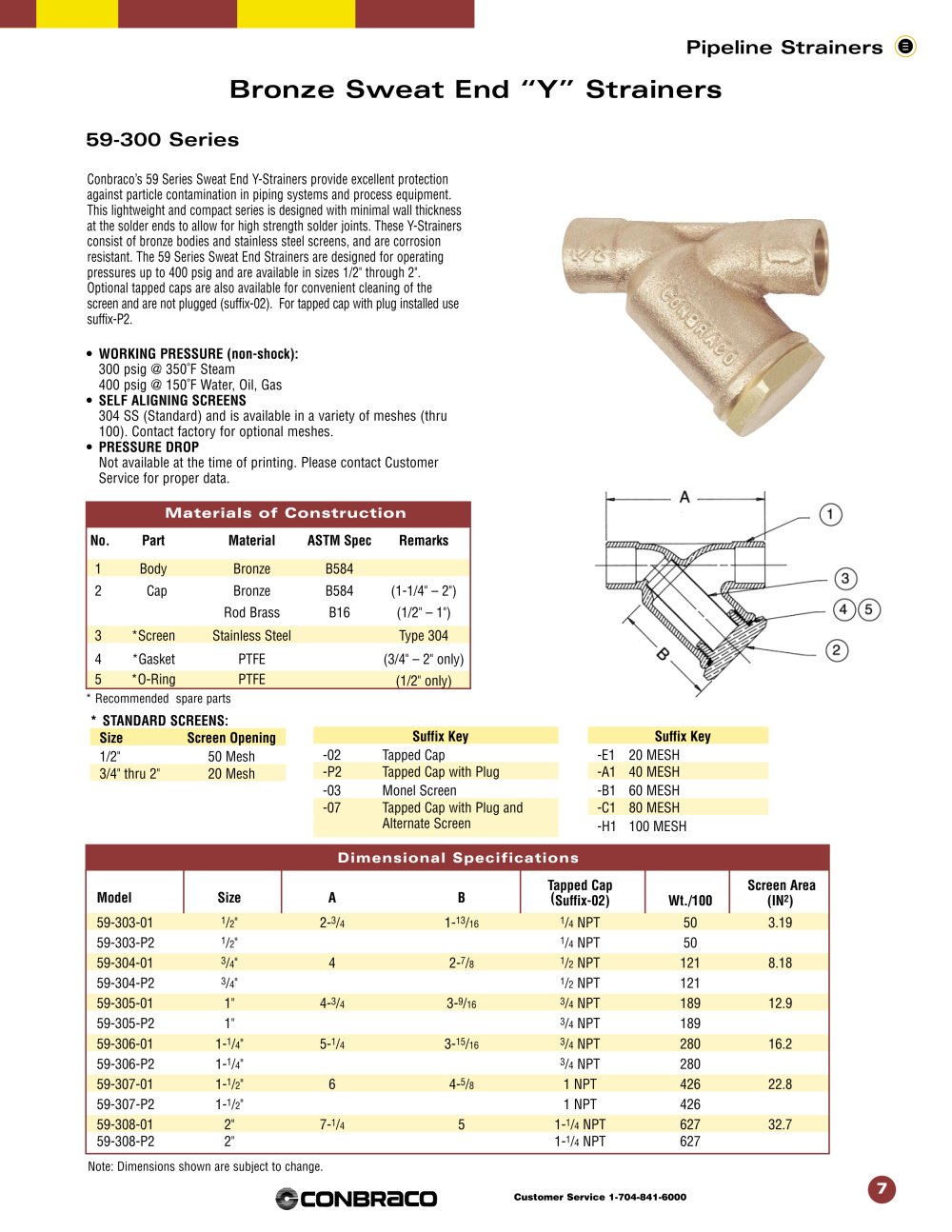

Conbraco - Strainers CICASTOO - 9063 Bronze Sweat End “Y” Strainers

59-300 Series

Conbraco’s 59 Series Sweat End Y-Strainers provide excellent protectionagainst particle contamination in piping systems and process equipment. This lightweight and compact series is designed with minimal wall thickness at the solder ends to allow forhigh strength solder joints. These Y-Strainers consist of bronze bodies and stainless steel screens, and are corrosion resistant. The 59 Series Sweat End Strainers are designed for operatingpressures up to 400 psig and are available in sizes 1/2" through 2".Optional tapped caps are also available for convenient cleaning of the screen and are not plugged (suffix-02). For tapped cap with plug installed use suffix-P2. •WORKING PRESSURE (non-shock): •SELF ALIGNING SCREENS 300 psig @ 350ËšF Steam 400 psig @ 150ËšF Water, Oil, Gas •PRESSURE DROP 304 SS (Standard) and is available in a variety of meshes (thru 100). Contact factory for optional meshes. Not available at the time of printing. Please contact Customer Service for proper data. Materials of Construction No.PartMaterialASTM SpecRemarks 1BodyBronzeB5842CapBronze B584(1-1/4" – 2")Rod BrassB16(1/2" – 1") 3*ScreenStainless SteelType 3044*GasketPTFE (3/4" – 2" only) 5*O-RingPTFE(1/2" only)
* Recommended spare parts *STANDARD SCREENS: SizeScreen Opening Suffix Key Suffix Key 1/2"50 Mesh -02Tapped Cap -E120 MESH 3/4" thru 2"20 Mesh -P2Tapped Cap with Plug -03Monel Screen -A140 MESH -B160 MESH -07Tapped Cap with Plug and -C180 MESH -H1100 MESH Alternate Screen Dimensional Specifications Tapped CapScreen AreaModelSizeAB(Suffix-02)Wt./100(IN
2 ) 59-303-01
1 /
2 "2-
3 /
4 1-
13 /
161 /
4 NPT503.1959-303-P2
1 /
2 "
1 /
4 NPT50 59-304-01
3 /
4 "42-
7 /
81 /
2 NPT1218.1859-304-P2
3 /
4 "
1 /
2 NPT121 59-305-011"4-
3 /
4 3-
9 /
163 /
4 NPT18912.959-305-P21"
3 /
4 NPT189 59-306-011-
1 /
4 "5-
1 /
4 3-
15 /
163 /
4 NPT28016.259-306-P21-
1 /
4 "
3 /
4 NPT280 59-307-011-
1 /
2 "64-
5 /
8 1 NPT42622.859-307-P21-
1 /
2 "1 NPT426 59-308-012"7-
1 /
4 51-
1 /
4 NPT62732.759-308-P22"1-
1 /
4 NPT627
