Size 1 - 1/4" 2 - 3/8" 3 - 1/2" 4 - 3/4" 5 - 1" 6 - 1-1/4" 7 - 1-1/2" 8 - 2" 9 - 2-1/2" 0 - 3" A- 4" B - 5" C - 6" E - 8" G - 10" H - 12" J - 14" K - 16" L- 18" 1 - 304 SST2 - MONEL 3 - 316 SST 4 - BRASS 6 - 304 SST/MAGNETS 7 - MONEL/MAGNETS 8 - 316 SST/MAGNETS 9 - BRASS/MAGNETS A- 20 MESH B - 30 MESH C - 40 MESH D - 60 MESH E - 80 MESH F - 100 MESH G - 60/80/100MESH H - 200 MESH I - .020 PERF J - .027 PERF K - .033 PERF L- .045 PERF M - .062 PERF N - .125 PERF O - .187 PERF P- .250 PERF Q - .375 PERF R - .312 PERF S - .156 PERF T- 16 MESH U - 12 MESH V - .500 PERF W - 150 MESH Y- .093 PERF

Pipeline Strainers

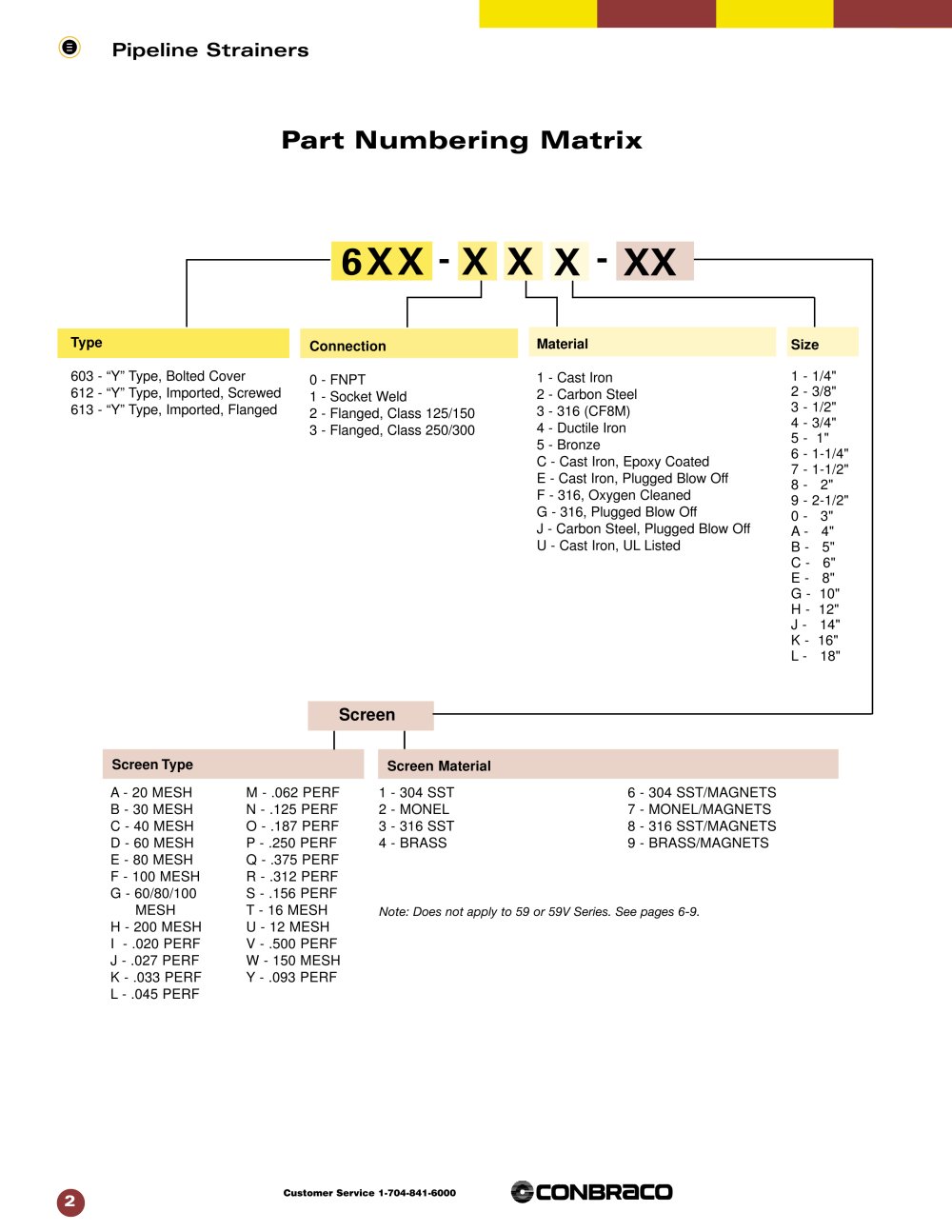

Part Numbering Matrix

Conbraco - Strainers CICASTOO - 9063 XXXXX6XX--

Material 1 - Cast Iron 2 - Carbon Steel 3 - 316 (CF8M) 4 - Ductile Iron 5 - Bronze C - Cast Iron, Epoxy Coated E - Cast Iron, Plugged Blow Off F - 316, Oxygen Cleaned G - 316, Plugged Blow Off J - Carbon Steel, Plugged Blow Off U - Cast Iron, ULListed Connection Type 0 - FNPT1 - Socket Weld 2 - Flanged, Class 125/150 3 - Flanged, Class 250/300 603 - “Y” Type, Bolted Cover 612 - “Y” Type, Imported, Screwed 613 - “Y” Type, Imported, Flanged

Screen

Screen Type Screen Material
Note: Does not apply to 59 or 59V Series. See pages 6-9.

2

Customer Service 1-704-841-6000
