Conbraco - Catalog - 9063 General PurposeStandard Port Valves

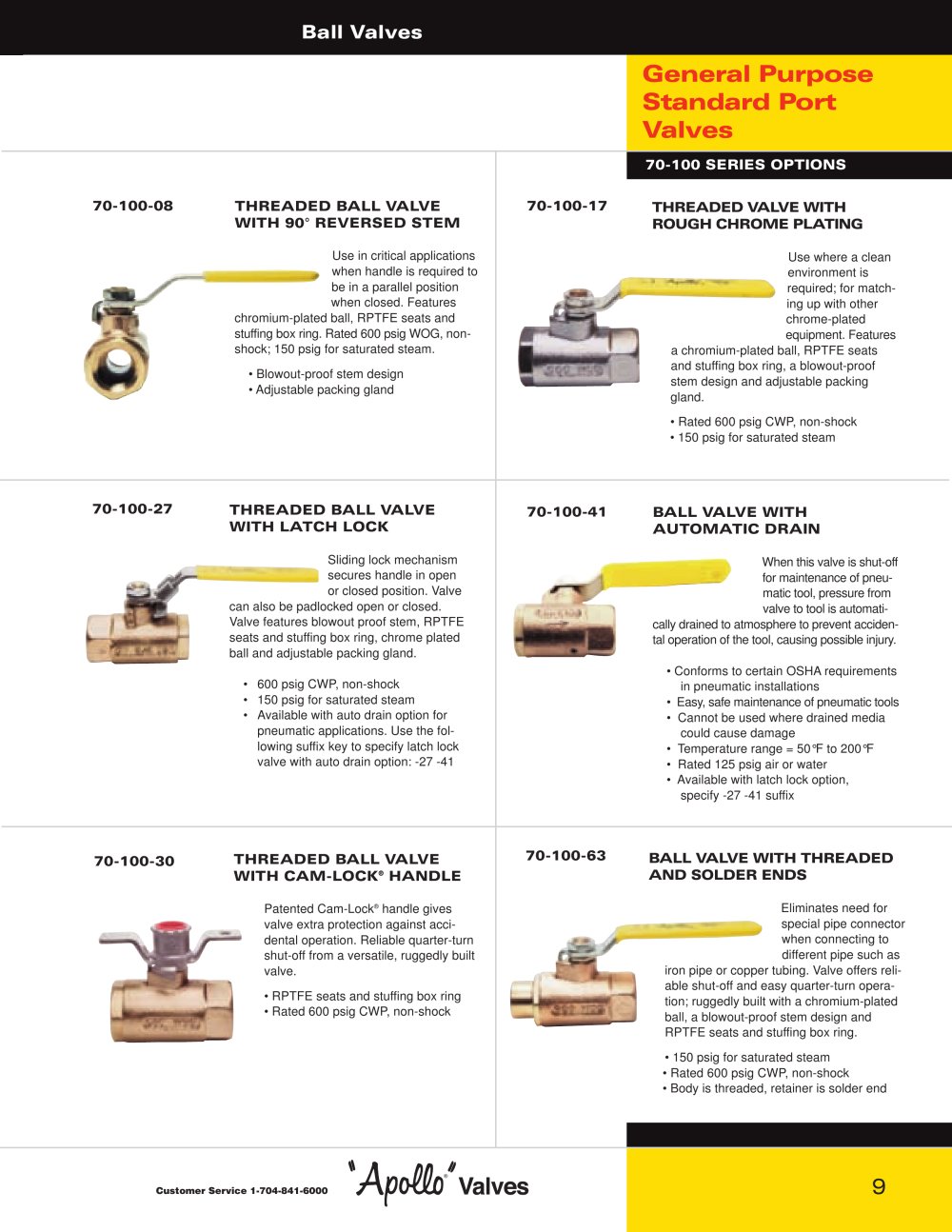

70-100 SERIES OPTIONS 70-100-08 70-100-17 70-100-2770-100-41 THREADED BALL VALVEWITH 90°REVERSED STEM THREADED VALVE WITHROUGH CHROME PLATING
Use in critical applicationswhen handle is required tobe in a parallel positionwhen closed. Featureschromium-plated ball, RPTFE seats and stuffing box ring. Rated 600 psig WOG, non-shock; 150 psig for saturated steam.? Blowout-proof stem design ? Adjustable packing gland Use where a cleanenvironment isrequired; for match-ing up with otherchrome-platedequipment. Featuresa chromium-plated ball, RPTFE seatsand stuffing box ring, a blowout-proofstem design and adjustable packinggland.? Rated 600 psig CWP, non-shock? 150 psig for saturated steam THREADED BALL VALVEWITH LATCH LOCK BALL VALVE WITHAUTOMATIC DRAIN
Sliding lock mechanismsecures handle in open or closed position. Valvecan also be padlocked open or closed. Valve features blowout proof stem, RPTFE seats and stuffing box ring, chrome plated ball and adjustable packing gland.?600 psig CWP, non-shock?150 psig for saturated steam ?Available with auto drain option forpneumatic applications. Use the fol- lowing suffix key to specify latch lock valve with auto drain option: -27 -41 When this valve is shut-offfor maintenance of pneu-matic tool, pressure fromvalve to tool is automati-cally drained to atmosphere to prevent acciden- tal operation of the tool, causing possible injury.? Conforms to certain OSHArequirementsin pneumatic installations? Easy, safe maintenance of pneumatic tools ? Cannot be used where drained mediacould cause damage? Temperature range = 50°F to 200°F ? Rated 125 psig air or water ? Available with latch lock option, specify -27 -41 suffix 70-100-3070-100-63 THREADED BALL VALVE WITH CAM-LOCK BALL VALVE WITH THREADEDAND SOLDER ENDS
® HANDLE
Patented Cam-Lock ® handle givesvalve extra protection against acci- dental operation. Reliable quarter-turn shut-off from a versatile, ruggedly built valve.? RPTFE seats and stuffing box ring ? Rated 600 psig CWP, non-shock Eliminates need forspecial pipe connectorwhen connecting todifferent pipe such asiron pipe or copper tubing. Valve offers reli- able shut-off and easy quarter-turn opera- tion; ruggedly built with a chromium-plated ball, a blowout-proof stem design and RPTFE seats and stuffing box ring. ? 150 psig for saturated steam? Rated 600 psig CWP, non-shock ? Body is threaded, retainer is solder end Customer Service 1-704-841-6000
