Ball Valves

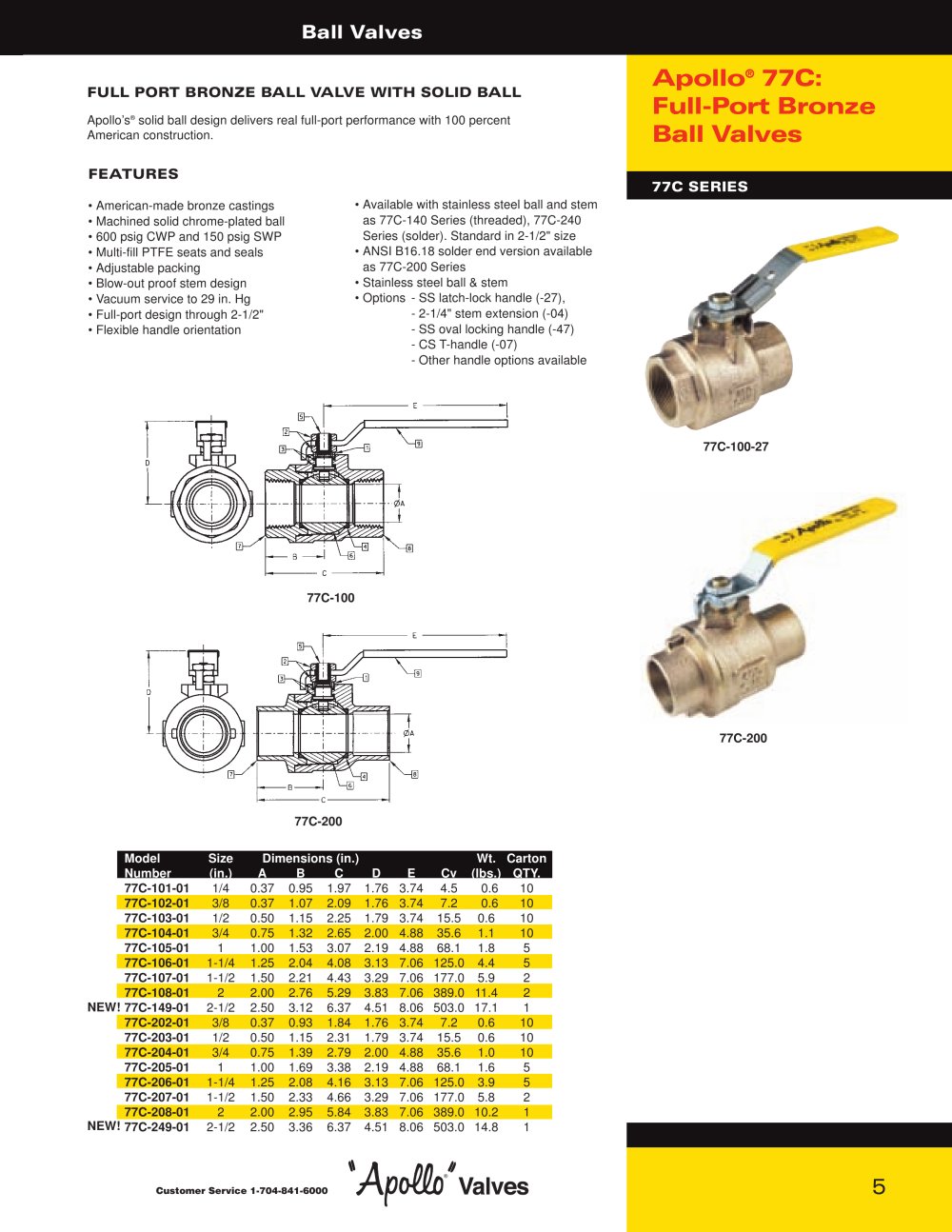

FULL PORT BRONZE BALL VALVE WITH SOLID BALL

Conbraco - Catalog - 9063 Apollo

®

77C: Full-Port Bronze Ball Valves

Apollo’s
® solid ball design delivers real full-port performance with 100 percent American construction.

FEATURES 77C SERIES

? American-made bronze castings? Machined solid chrome-plated ball ? 600 psig CWPand 150 psig SWP ? Multi-fill PTFE seats and seals ? Adjustable packing ? Blow-out proof stem design ? Vacuum service to 29 in. Hg ? Full-port design through 2-1/2" ? Flexible handle orientation ? Available with stainless steel ball and stem as 77C-140 Series (threaded), 77C-240 Series (solder). Standard in 2-1/2" size? ANSI B16.18 solder end version available as 77C-200 Series? Stainless steel ball & stem ? Options - SS latch-lock handle (-27), - 2-1/4" stem extension (-04) - SS oval locking handle (-47) - CS T-handle (-07) - Other handle options available 77C-200 77C-100 77C-200 77C-100-27 ModelSizeDimensions (in.)Wt. CartonNumber(in.)ABCDECv(lbs.)QTY. 77C-101-01 1/40.370.951.971.763.744.50.610 77C-102-01 3/80.371.072.091.763.747.20.610 77C-103-01 1/20.501.152.251.793.7415.50.610 77C-104-01 3/40.751.322.652.004.8835.61.110 77C-105-01 11.001.533.072.194.8868.11.85 77C-106-01 1-1/41.252.044.083.137.06125.04.45 77C-107-01 1-1/21.502.214.433.297.06177.05.92 77C-108-01 22.002.765.293.837.06389.011.42 NEW!NEW! 77C-149-01 2-1/22.503.126.374.518.06503.017.11 77C-202-01 3/80.370.931.841.763.747.20.610 77C-203-01 1/20.501.152.311.793.7415.50.610 77C-204-01 3/40.751.392.792.004.8835.61.010 77C-205-01 11.001.693.382.194.8868.11.65 77C-206-01 1-1/41.252.084.163.137.06125.03.95 77C-207-01 1-1/21.502.334.663.297.06177.05.82 77C-208-01 22.002.955.843.837.06389.010.21 77C-249-01 2-1/22.503.366.374.518.06503.014.81
Customer Service 1-704-841-6000

5
