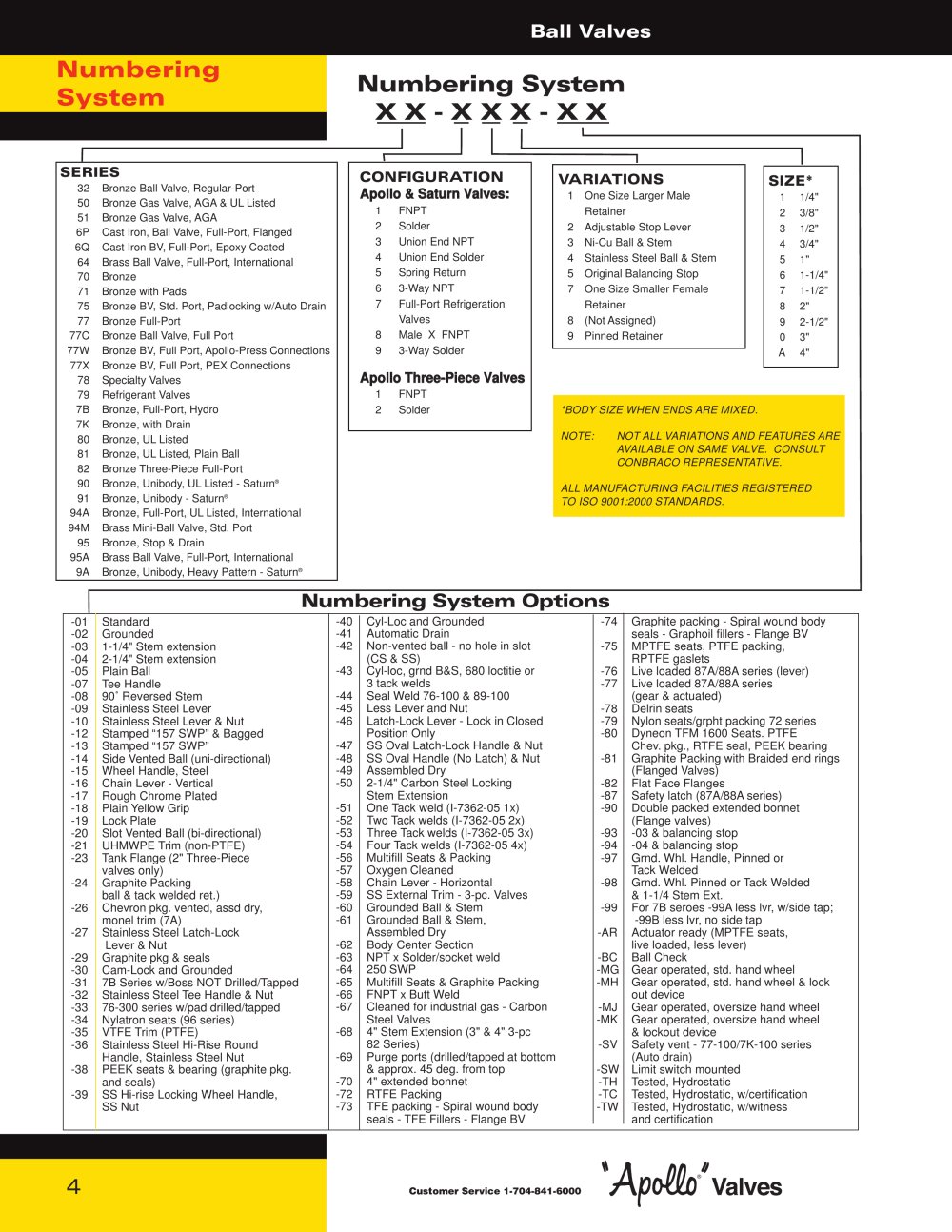

Numbering System

XX - X X X - X X

" I 1

SERIES

32 Bronze Ball Valve, Regular-Port

50 Bronze Gas Valve, AGA & UL Listed

51 Bronze Gas Valve, AGA

6P Cast Iron, Ball Valve, Full-Port, Flanged

6Q Cast Iron BV, Full-Port, Epoxy Coated

64 Brass Ball Valve, Full-Port, International

70 Bronze

71 Bronze with Pads

75 Bronze BV, Std. Port, Padlocking w/Auto Drain

77 Bronze Full-Port

77C Bronze Ball Valve, Full Port

77W Bronze BV, Full Port, Apollo-Press Connections

77X Bronze BV, Full Port, PEX Connections

78 Specialty Valves

79 Refrigerant Valves

7B Bronze, Full-Port, Hydro

7K Bronze, with Drain

80 Bronze, UL Listed

81 Bronze, UL Listed, Plain Ball

82 Bronze Three-Piece Full-Port

90 Bronze, Unibody, UL Listed - Saturn®

91 Bronze, Unibody - Saturn®

94A Bronze, Full-Port, UL Listed, International

94M Brass Mini-Ball Valve, Std. Port

95 Bronze, Stop & Drain

95A Brass Ball Valve, Full-Port, International

9A Bronze, Unibody, Heavy Pattern - Saturn®

CONFIGURATION

Apollo & Saturn Valves:

1 FNPT

2 Solder

3 Union End NPT

4 Union End Solder

5 Spring Return

6 3-Way NPT

7 Full-Port Refrigeration Valves

8 Male X FNPT

9 3-Way Solder

Apollo Three-Piece Valves

1 FNPT

2 Solder

VARIATIONS

1 One Size Larger Male Retainer

2 Adjustable Stop Lever

3 Ni-Cu Ball & Stem

4 Stainless Steel Ball & Stem

5 Original Balancing Stop

7 One Size Smaller Female

Retainer

8 (Not Assigned)

9 Pinned Retainer

SIZE*


	1	1/4"
	2	3/8"
	3	1/2"
	4	3/4"
	5	1"
	6	1-1/4"
	7	1-1/2"
	8	2"
	9	2-1/2"
	0	3"
	A	4"

*BODYSIZE WHEN ENDS ARE MIXED.

NOTE: NOT ALL VARIATIONS AND FEATURES ARE AVAILABLE ON SAME VALVE. CONSULT CONBRACO REPRESENTATIVE.

ALL MANUFACTURING FACILITIES REGISTERED TO ISO 9001:2000 STANDARDS.

Numbering System Options


-01	Standard	-40	Cyl-Loc and Grounded	-74	Graphite packing - Spiral wound body
-02	Grounded	-41	Automatic Drain		seals - Graphoil fillers - Flange BV
-03	1-1/4" Stem extension	-42	Non-vented ball - no hole in slot	-75	MPTFE seats, PTFE packing,
-04	2-1/4" Stem extension		(CS & SS)		RPTFE gaslets
-05	Plain Ball	-43	Cyl-loc, grnd B&S, 680 loctitie or	-76	Live loaded 87A/88Aseries (lever)
-07	Tee Handle		3 tack welds	-77	Live loaded 87A/88Aseries
-08	90* Reversed Stem	-44	Seal Weld 76-100 & 89-100		(gear & actuated)
-09	Stainless Steel Lever	-45	Less Lever and Nut	-78	Delrin seats
-10	Stainless Steel Lever & Nut	-46	Latch-Lock Lever - Lock in Closed	-79	Nylon seats/grpht packing 72 series
-12	Stamped "157 SWP" & Bagged		Position Only	-80	Dyneon TFM 1600 Seats. PTFE
-13	Stamped "157 SWP"	-47	SS Oval Latch-Lock Handle & Nut		Chev. pkg., RTFE seal, PEEK bearing
-14	Side Vented Ball (uni-directional)	-48	SS Oval Handle (No Latch) & Nut	-81	Graphite Packing with Braided end rings
-15	Wheel Handle, Steel	-49	Assembled Dry		(Flanged Valves)
-16	Chain Lever - Vertical	-50	2-1/4" Carbon Steel Locking	-82	Flat Face Flanges
-17	Rough Chrome Plated		Stem Extension	-87	Safety latch (87A/88Aseries)
-18	Plain Yellow Grip	-51	One Tack weld (I-7362-05 1x)	-90	Double packed extended bonnet
-19	Lock Plate	-52	Two Tack welds (I-7362-05 2x)		(Flange valves)
-20	Slot Vented Ball (bi-directional)	-53	Three Tack welds (I-7362-05 3x)	-93	-03 & balancing stop
-21	UHMWPE Trim (non-PTFE)	-54	Four Tack welds (I-7362-05 4x)	-94	-04 & balancing stop
-23	Tank Flange (2" Three-Piece	-56	Multifill Seats & Packing	-97	Grnd. Whl. Handle, Pinned or
	valves only)	-57	Oxygen Cleaned		Tack Welded
-24	Graphite Packing	-58	Chain Lever - Horizontal	-98	Grnd. Whl. Pinned or Tack Welded
	ball & tack welded ret.)	-59	SS External Trim - 3-pc. Valves		& 1-1/4 Stem Ext.
-26	Chevron pkg. vented, assd dry,	-60	Grounded Ball & Stem	-99	For 7B seroes -99A less lvr, w/side tap;
	monel trim (7A)	-61	Grounded Ball & Stem,		-99B less lvr, no side tap
-27	Stainless Steel Latch-Lock		Assembled Dry	-AR	Actuator ready (MPTFE seats,
	Lever & Nut	-62	Body Center Section		live loaded, less lever)
-29	Graphite pkg & seals	-63	NPT x Solder/socket weld	-BC	Ball Check
-30	Cam-Lock and Grounded	-64	250 SWP	-MG	Gear operated, std. hand wheel
-31	7B Series w/Boss NOT Drilled/Tapped	-65	Multifill Seats & Graphite Packing	-MH	Gear operated, std. hand wheel & lock
-32	Stainless Steel Tee Handle & Nut	-66	FNPT x Butt Weld		out device
-33	76-300 series w/pad drilled/tapped	-67	Cleaned for industrial gas - Carbon	-MJ	Gear operated, oversize hand wheel
-34	Nylatron seats (96 series)		Steel Valves	-MK	Gear operated, oversize hand wheel
-35	VTFE Trim (PTFE)	-68	4" Stem Extension (3" & 4" 3-pc		& lockout device
-36	Stainless Steel Hi-Rise Round		82 Series)	-SV	Safety vent - 77-100/7K-100 series
	Handle, Stainless Steel Nut	-69	Purge ports (drilled/tapped at bottom		(Auto drain)
-38	PEEK seats & bearing (graphite pkg.		& approx. 45 deg. from top	-SW	Limit switch mounted
	and seals)	-70	4" extended bonnet	-TH	Tested, Hydrostatic
-39	SS Hi-rise Locking Wheel Handle,	-72	RTFE Packing	-TC	Tested, Hydrostatic, w/certification
	SS Nut	-73	TFE packing - Spiral wound body seals - TFE Fillers - Flange BV	-TW	Tested, Hydrostatic, w/witness and certification

*ApoW

Valves

Customer Service 1-704-841-6000
