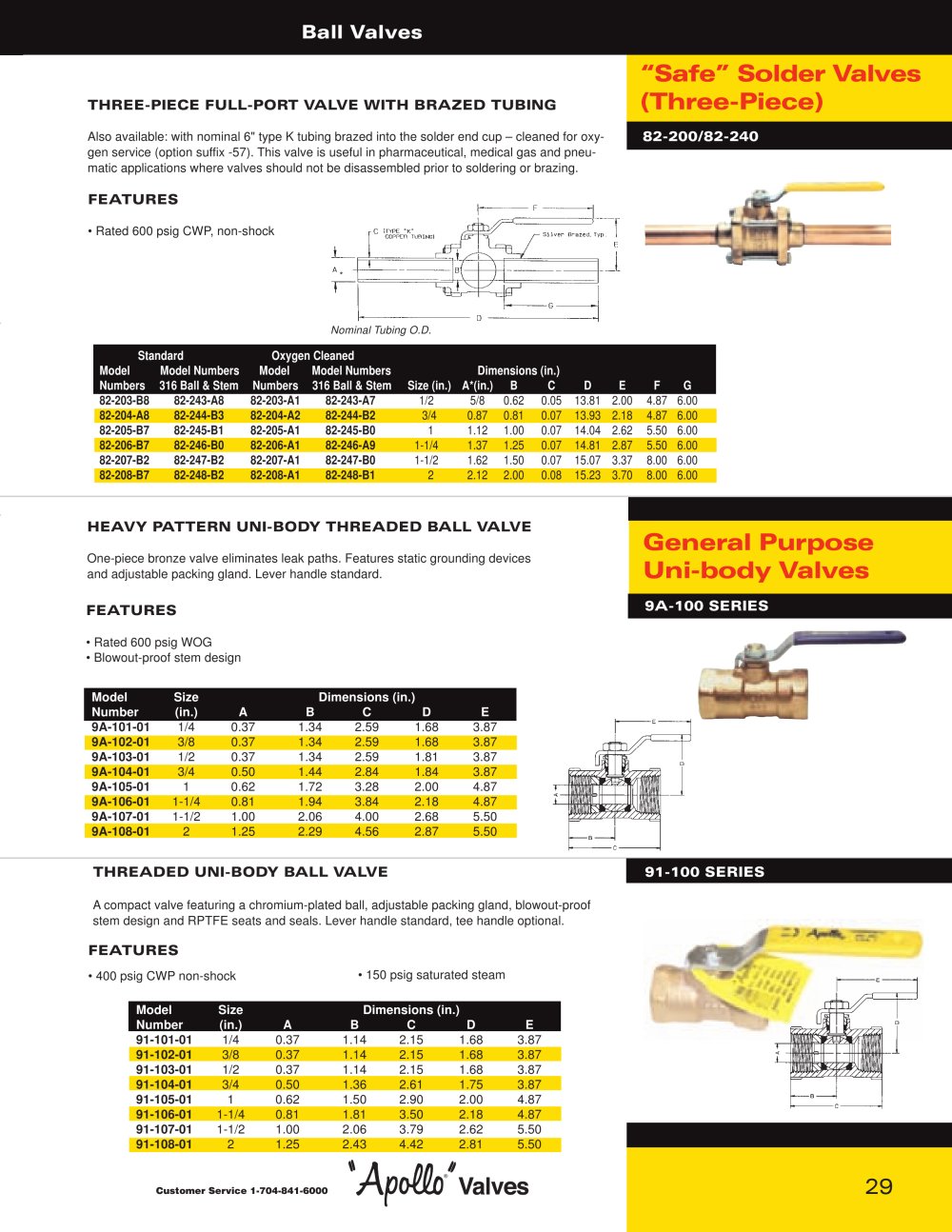

Ball Valves
Conbraco - Catalog - 9063 “Safe” Solder Valves (Three-Piece)
THREE-PIECE FULL-PORT VALVE WITH BRAZED TUBING
Also available: with nominal 6" type K tubing brazed into the solder end cup – cleaned for oxy-gen service (option suffix -57). This valve is useful in pharmaceutical, medical gas and pneu- matic applications where valves should not be disassembled prior to soldering or brazing.82-200/82-240 FEATURES
? Rated 600 psig CWP, non-shock* Nominal Tubing O.D. StandardOxygen CleanedModelModel Numbers ModelModel NumbersDimensions (in.) Numbers316 Ball & StemNumbers316 Ball & StemSize (in.)A*(in.)BCDEFG 82-203-B882-243-A882-203-A182-243-A7 1/25/80.620.0513.812.004.876.00 82-204-A882-244-B382-204-A282-244-B2 3/40.870.810.0713.932.184.876.00 82-205-B782-245-B182-205-A182-245-B0 11.121.000.0714.042.625.506.00 82-206-B782-246-B082-206-A182-246-A9 1-1/41.371.250.0714.812.875.506.00 82-207-B282-247-B282-207-A182-247-B0 1-1/21.621.500.0715.073.378.006.00 82-208-B782-248-B282-208-A182-248-B1 22.122.000.0815.233.708.006.00
HEAVY PATTERN UNI-BODY THREADED BALL VALVE
One-piece bronze valve eliminates leak paths. Features static grounding devices and adjustable packing gland. Lever handle standard.General Purpose Uni-body Valves
FEATURES 9A-100 SERIES
? Rated 600 psig WOG? Blowout-proof stem design Model Size Dimensions (in.)Number(in.)ABCDE 9A-101-01 1/40.371.342.591.683.87 9A-102-01 3/80.371.342.591.683.87 9A-103-01 1/20.371.342.591.813.87 9A-104-01 3/40.501.442.841.843.87 9A-105-01 10.621.723.282.004.87 9A-106-01 1-1/40.811.943.842.184.87 9A-107-01 1-1/21.002.064.002.685.50 9A-108-01 21.252.294.562.875.50THREADED UNI-BODY BALL VALVE 91-100 SERIES
Acompact valve featuring a chromium-plated ball, adjustable packing gland, blowout-proof stem design and RPTFE seats and seals. Lever handle standard, tee handle optional.FEATURES
? 400 psig CWPnon-shock ? 150 psig saturated steam Model Size Dimensions (in.)Number(in.)ABCDE 91-101-01 1/40.371.142.151.683.87 91-102-01 3/80.371.142.151.683.87 91-103-01 1/20.371.142.151.683.87 91-104-01 3/40.501.362.611.753.87 91-105-01 10.621.502.902.004.87 91-106-01 1-1/40.811.813.502.184.87 91-107-01 1-1/21.002.063.792.625.50 91-108-01 21.252.434.422.815.50Customer Service 1-704-841-6000
