Vacuum Breakers

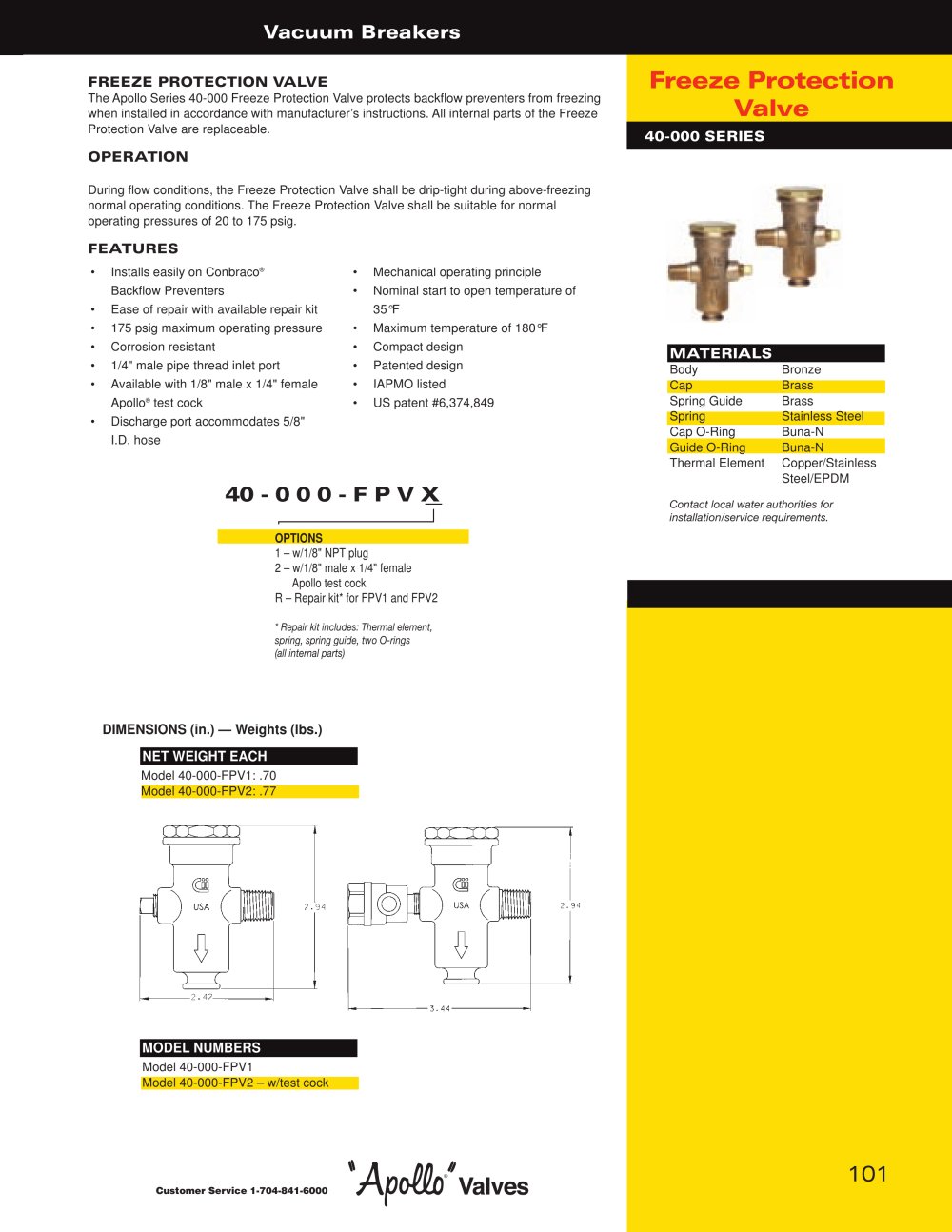

FREEZE PROTECTION VALVE

The Apollo Series 40-000 Freeze Protection Valve protects backflow preventers from freezingwhen installed in accordance with manufacturer’s instructions. All internal parts of the Freeze Protection Valve are replaceable.

Conbraco - Catalog - 9063 Freeze ProtectionValve

40-000 SERIES OPERATION

During flow conditions, the Freeze Protection Valve shall be drip-tight during above-freezing normal operating conditions. The Freeze Protection Valve shall be suitable for normal operating pressures of 20 to 175 psig.

FEATURES

?Installs easily on Conbraco
® Backflow Preventers?Ease of repair with available repair kit ?175 psig maximum operating pressure ?Corrosion resistant ?1/4" male pipe thread inlet port ?Available with 1/8" male x 1/4" femaleApollo

MATERIALS

BodyBronzeCapBrass Spring GuideBrass SpringStainless Steel Cap O-RingBuna-N Guide O-RingBuna-N Thermal ElementCopper/Stainless Steel/EPDM
® test cock?Discharge port accommodates 5/8" I.D. hose ?Mechanical operating principle?Nominal start to open temperature of35°F?Maximum temperature of 180°F ?Compact design ?Patented design ?IAPMO listed ?US patent #6,374,849

40 - 0 0 0 - F P V X

Contact local water authorities for installation/service requirements. OPTIONS 1 – w/1/8" NPTplug 2 – w/1/8" male x 1/4" femaleApollo test cockR – Repair kit* for FPV1 and FPV2
* Repair kit includes: Thermal element, spring, spring guide, two O-rings (all internal parts)

DIMENSIONS (in.) — Weights (lbs.) NET WEIGHT EACH

Model 40-000-FPV1: .70 Model 40-000-FPV2: .77

MODELNUMBERS

Model 40-000-FPV1Model 40-000-FPV2 – w/test cock
Customer Service 1-704-841-6000
