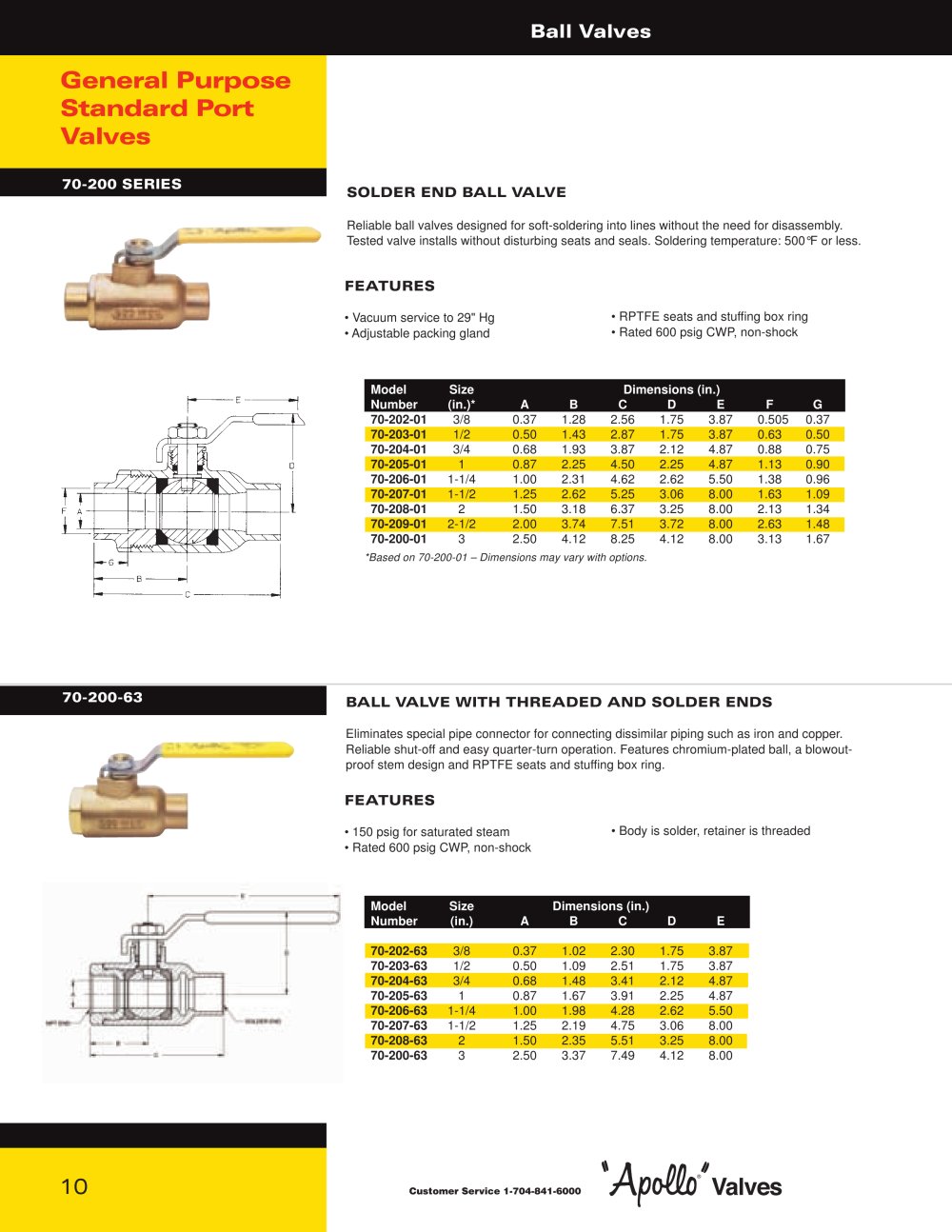

Ball Valves
General Purpose Standard Port Valves
SOLDER END BALL VALVE
70-200 SERIES
Reliable ball valves designed for soft-soldering into lines without the need for disassembly. Tested valve installs without disturbing seats and seals. Soldering temperature: 500°F or less.
FEATURES
• Vacuum service to 29" Hg
• Adjustable packing gland
• RPTFE seats and stuffing box ring
• Rated 600 psig CWP, non-shock
Model Size Dimensions (in.)
Number (in.)*_ABCD E F G
70-202-01
3/8
0.37
1.28
2.56
1.75
3.87
0.505
0.37
70-203-01
1/2
0.50
1.43
2.87
1.75
3.87
0.63
0.50
70-204-01
3/4
0.68
1.93
3.87
2.12
4.87
0.88
0.75
70-205-01
1
0.87
2.25
4.50
2.25
4.87
1.13
0.90
70-206-01
1-1/4
1.00
2.31
4.62
2.62
5.50
1.38
0.96
70-207-01
1-1/2
1.25
2.62
5.25
3.06
8.00
1.63
1.09
70-208-01
2
1.50
3.18
6.37
3.25
8.00
2.13
1.34
70-209-01
2-1/2
2.00
3.74
7.51
3.72
8.00
2.63
1.48
70-200-01
3
2.50
4.12
8.25
4.12
8.00
3.13
1.67
'Based on 70-200-01 - Dimensions may vary with options.
70-200-63
BALL VALVE WITH THREADED AND SOLDER ENDS
Eliminates special pipe connector for connecting dissimilar piping such as iron and copper. Reliable shut-off and easy quarter-turn operation. Features chromium-plated ball, a blowout-proof stem design and RPTFE seats and stuffing box ring.
FEATURES
• 150 psig for saturated steam
• Rated 600 psig CWP, non-shock
• Body is solder, retainer is threaded
Model Number
Size
(in.)
Dimensions (in.) ABCD E
70-202-63
3/8
0.37
1.02
2.30
1.75
3.87
70-203-63
1/2
0.50
1.09
2.51
1.75
3.87
70-204-63
3/4
0.68
1.48
3.41
2.12
4.87
70-205-63
1
0.87
1.67
3.91
2.25
4.87
70-206-63
1-1/4
1.00
1.98
4.28
2.62
5.50
70-207-63
1-1/2
1.25
2.19
4.75
3.06
8.00
70-208-63
2
1.50
2.35
5.51
3.25
8.00
70-200-63
3
2.50
3.37
7.49
4.12
8.00
