BALL VALVES - Conbraco Industries - #9

Text version of the page

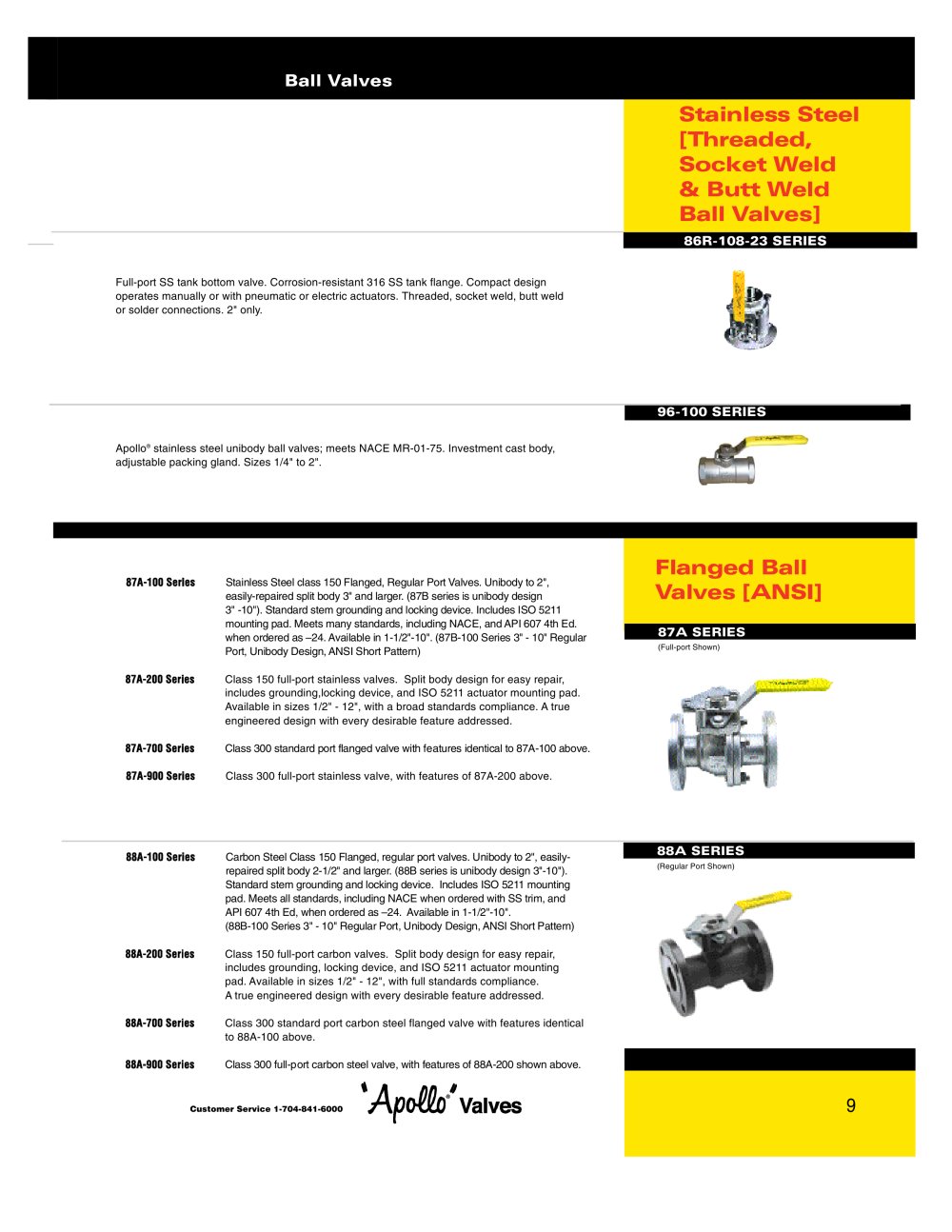

Stainless Steel [ Threaded, Socket Weld & Butt Weld Ball Valves] 9 Ball Valves 87A SERIES (Full-port Shown) Flanged Ball Valves [ANSI] 87A-100 Series Stainless Steel class 150 Flanged, Regular Port Valves. Unibody to 2", easily-repaired split body 3" and larger. (87B series is unibody design 3" -10"). Standard stem grounding and locking device. Includes ISO 5211 mounting pad. Meets many standards, including NACE, and API 607 4th Ed. when ordered as –24. Available in 1-1/2"-10". (87B-100 Series 3" - 10" Regular Port, Unibody Design, ANSI Short Pattern) 87A-200 Series Class 150 full-port stainless valves. Split body design for easy repair, includes grounding,locking device, and ISO 5211 actuator mounting pad. Available in sizes 1/2" - 12", with a broad standards compliance. A true engineered design with every desirable feature addressed. 87A-700 Series Class 300 standard port flanged valve with features identical to 87A-100 above. 87A-900 Series Class 300 full-port stainless valve, with features of 87A-200 above. 88A SERIES (Regular Port Shown) 88A-100 Series Carbon Steel Class 150 Flanged, regular port valves. Unibody to 2", easilyrepaired split body 2-1/2" and larger. (88B series is unibody design 3"-10"). Standard stem grounding and locking device. Includes ISO 5211 mounting pad. Meets all standards, including NACE when ordered with SS trim, and API 607 4th Ed, when ordered as –24. Available in 1-1/2"-10". (88B-100 Series 3" - 10" Regular Port, Unibody Design, ANSI Short Pattern) 88A-200 Series Class 150 full-port carbon valves. Split body design for easy repair, includes grounding, locking device, and ISO 5211 actuator mounting pad. Available in sizes 1/2" - 12", with full standards compliance. A true engineered design with every desirable feature addressed. 88A-700 Series Class 300 standard port carbon steel flanged valve with features identical to 88A-100 above. 88A-900 Series Class 300 full-port carbon steel valve, with features of 88A-200 shown above. Customer Service 1-704-841-6000 Apollo® stainless steel unibody ball valves; meets NACE MR-01-75. Investment cast body, adjustable packing gland. Sizes 1/4" to 2". 96-100 SERIES 86R-108-23 SERIES Full-port SS tank bottom valve. Corrosion-resistant 316 SS tank flange. Compact design operates manually or with pneumatic or electric actuators. Threaded, socket weld, butt weld or solder connections. 2" only.
