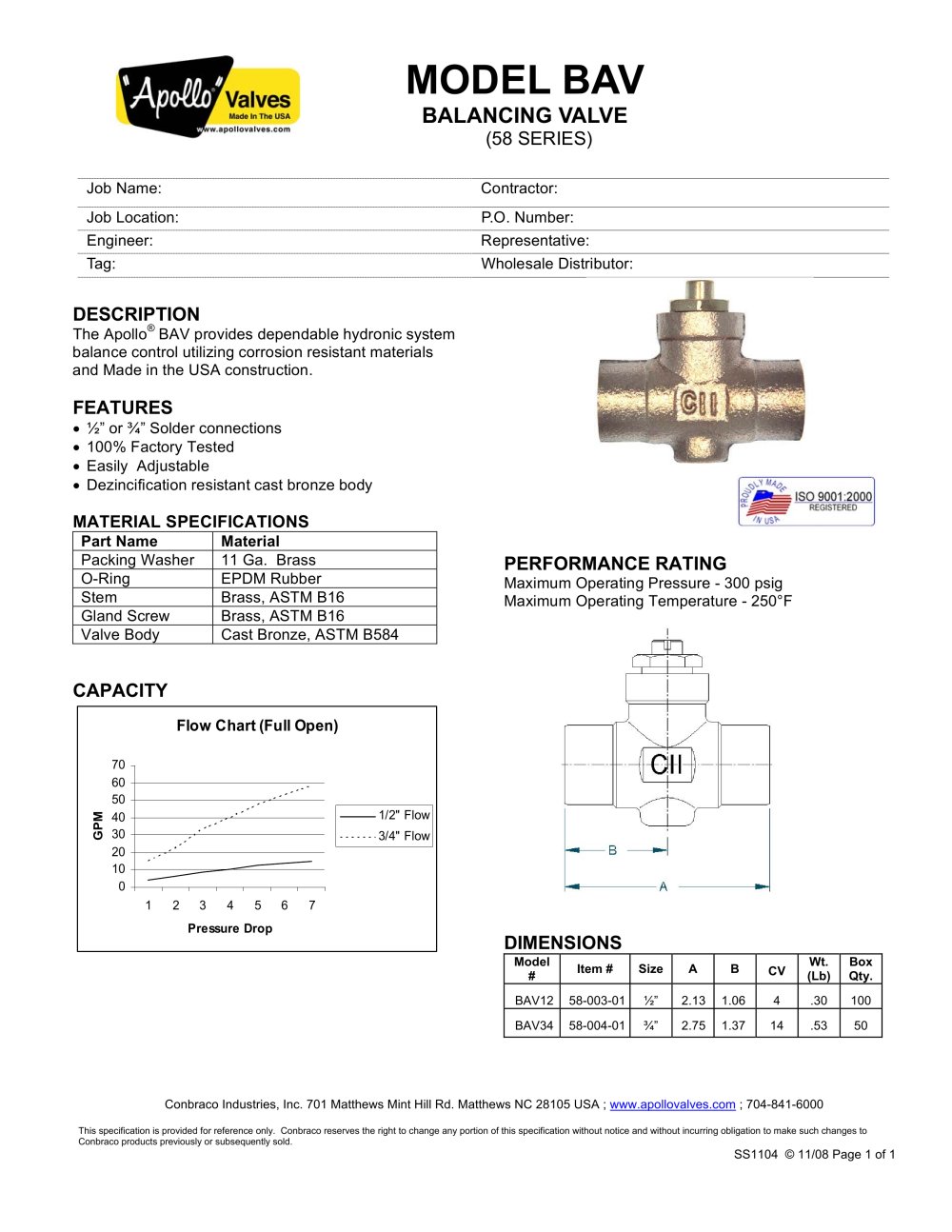

MODEL BAV BALANCING VALVE (58 SERIES) Job Name: Contractor: Job Location: P.O. Number: Engineer: Representative: Tag: Wholesale Distributor: DESCRIPTION The Apollo® BAV provides dependable hydronic system balance control utilizing corrosion resistant materials and Made in the USA construction. FEATURES • ½” or ¾” Solder connections • 100% Factory Tested • Easily Adjustable • Dezincification resistant cast bronze body Conbraco Industries, Inc. 701 Matthews Mint Hill Rd. Matthews NC 28105 USA ; www.apollovalves.com ; 704-841-6000 This specification is provided for reference only. Conbraco reserves the right to change any portion of this specification without notice and without incurring obligation to make such changes to Conbraco products previously or subsequently sold. SS1104 © 11/08 Page 1 of 1 MATERIAL SPECIFICATIONS Part Name Material Packing Washer 11 Ga. Brass O-Ring EPDM Rubber Stem Brass, ASTM B16 Gland Screw Brass, ASTM B16 Valve Body Cast Bronze, ASTM B584 CAPACITY Flow Chart (Full Open)0102030405060701234567Pressure DropGPM1/2" Flow3/4" Flow PERFORMANCE RATING Maximum Operating Pressure - 300 psig Maximum Operating Temperature - 250°F DIMENSIONS Model # Item # Size A B CV Wt. (Lb) Box Qty. BAV12 58-003-01 ½” 2.13 1.06 4 .30 100 BAV34 58-004-01 ¾” 2.75 1.37 14 .53 50
