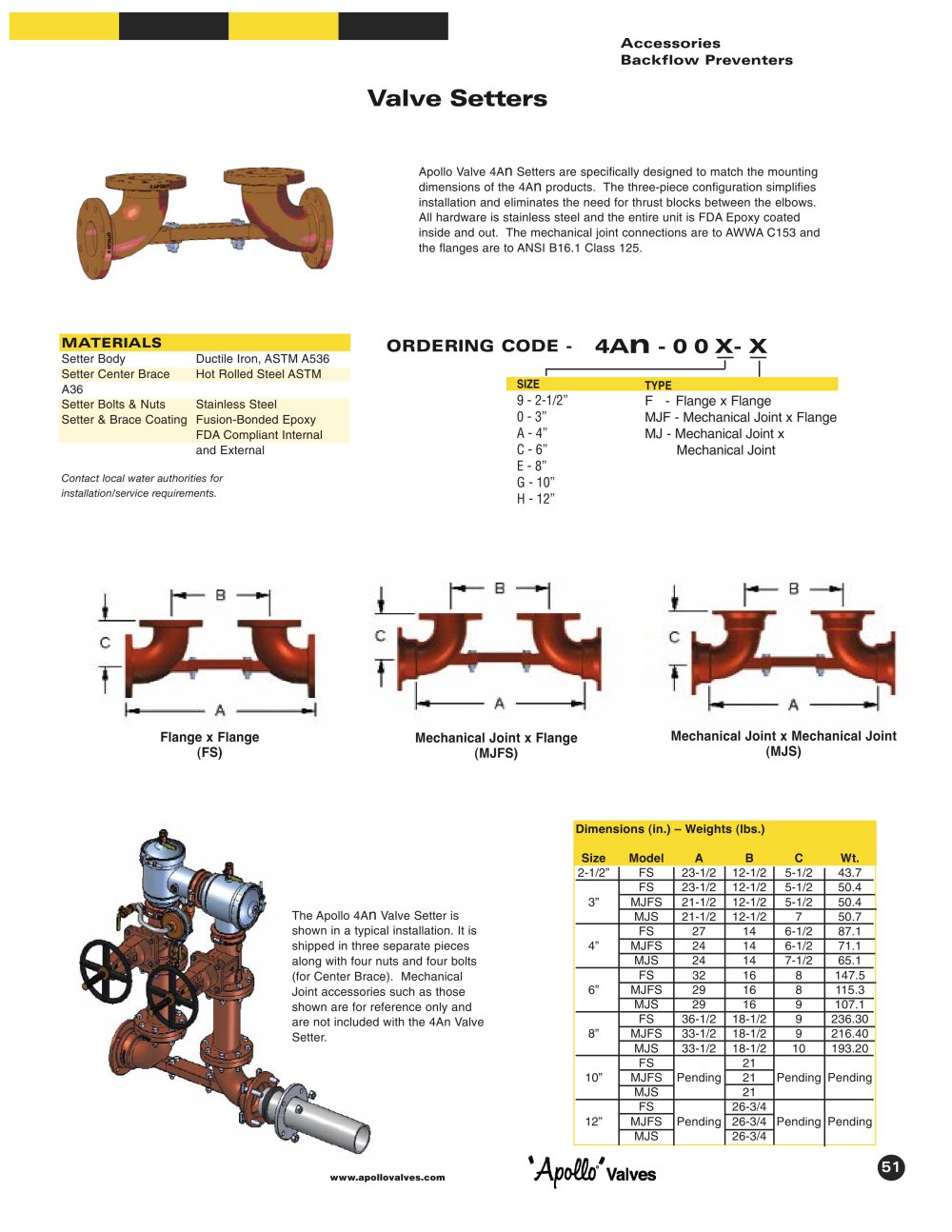

www.apollovalves.com Accessories Backflow Preventers 51 Valve Setters Apollo Valve 4An Setters are specifically designed to match the mounting dimensions of the 4An products. The three-piece configuration simplifies installation and eliminates the need for thrust blocks between the elbows. All hardware is stainless steel and the entire unit is FDA Epoxy coated inside and out. The mechanical joint connections are to AWWA C153 and the flanges are to ANSI B16.1 Class 125. MATERIALS Setter Body Ductile Iron, ASTM A536 Setter Center Brace Hot Rolled Steel ASTM A36 Setter Bolts & Nuts Stainless Steel Setter & Brace Coating Fusion-Bonded Epoxy FDA Compliant Internal and External Contact local water authorities for installation/service requirements. Flange x Flange (FS) Mechanical Joint x Flange (MJFS) Mechanical Joint x Mechanical Joint (MJS) The Apollo 4An Valve Setter is shown in a typical installation. It is shipped in three separate pieces along with four nuts and four bolts (for Center Brace). Mechanical Joint accessories such as those shown are for reference only and are not included with the 4An Valve Setter. Dimensions (in.) – Weights (lbs.) Size Model A B C Wt. 2-1/2” FS 23-1/2 12-1/2 5-1/2 43.7 FS 23-1/2 12-1/2 5-1/2 50.4 3” MJFS 21-1/2 12-1/2 5-1/2 50.4 MJS 21-1/2 12-1/2 7 50.7 FS 27 14 6-1/2 87.1 4” MJFS 24 14 6-1/2 71.1 MJS 24 14 7-1/2 65.1 FS 32 16 8 147.5 6” MJFS 29 16 8 115.3 MJS 29 16 9 107.1 FS 36-1/2 18-1/2 9 236.30 8” MJFS 33-1/2 18-1/2 9 216.40 MJS 33-1/2 18-1/2 10 193.20 FS 21 10” MJFS Pending 21 Pending Pending MJS 21 FS 26-3/4 12” MJFS Pending 26-3/4 Pending Pending MJS 26-3/4 4An - 0 0 X- X TYPE F - Flange x Flange MJF - Mechanical Joint x Flange MJ - Mechanical Joint x Mechanical Joint SIZE 9 - 2-1/2” 0 - 3” A - 4” C - 6” E - 8” G - 10” H - 12” ORDERING CODE -
