29

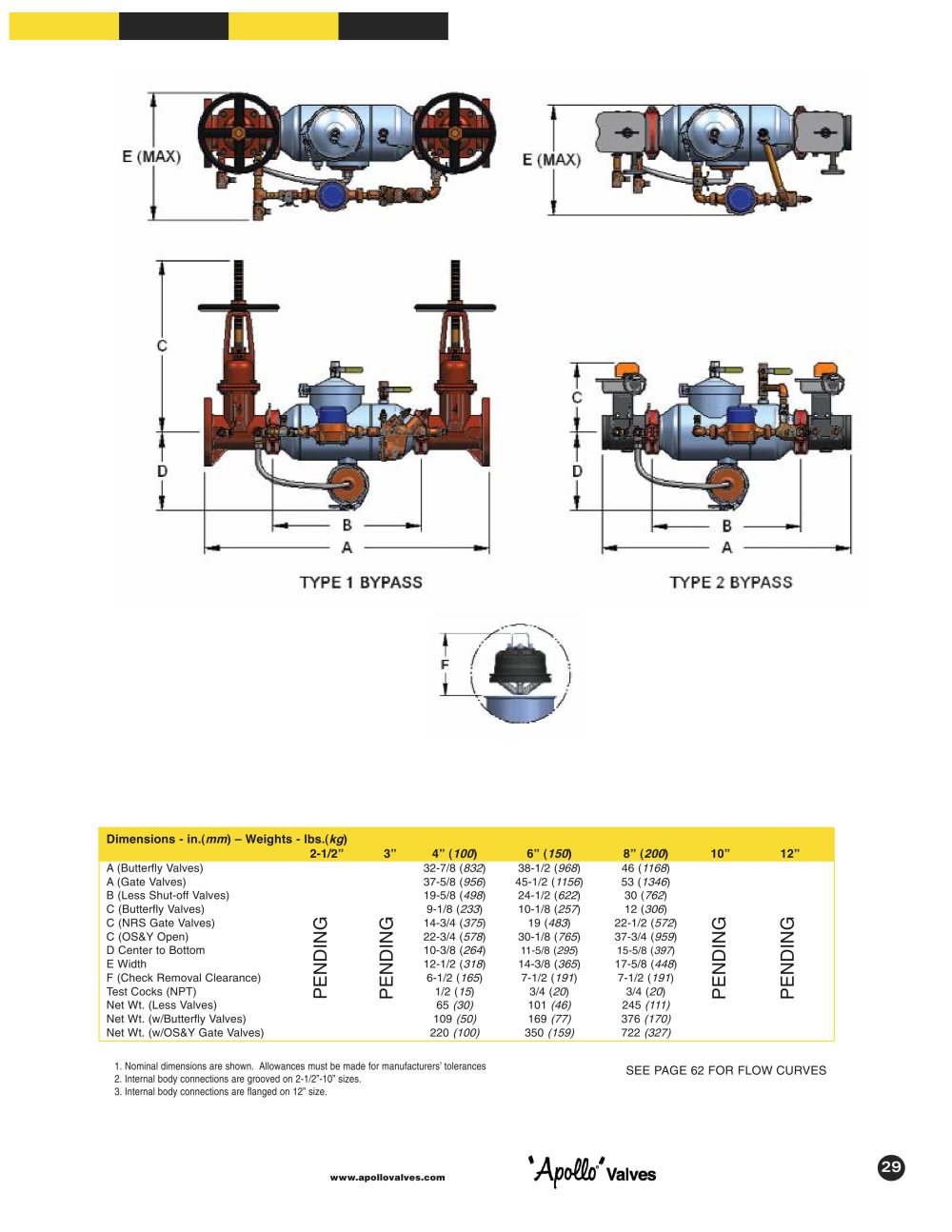

Dimensions - in.(mm) – Weights - lbs.(kg)
2-1/2” 3” 4” (100) 6” (150) 8” (200) 10” 12”
A (Butterfly Valves) 32-7/8 (832) 38-1/2 (968) 46 (1168)
A (Gate Valves) 37-5/8 (956) 45-1/2 (1156) 53 (1346)
B (Less Shut-off Valves) 19-5/8 (498) 24-1/2 (622) 30 (762)
C (Butterfly Valves) 9-1/8 (233) 10-1/8 (257) 12 (306)
C (NRS Gate Valves) 14-3/4 (375) 19 (483) 22-1/2 (572)
C (OS&Y Open) 22-3/4 (578) 30-1/8 (765) 37-3/4 (959)
D Center to Bottom 10-3/8 (264) 11-5/8 (295) 15-5/8 (397)
E Width 12-1/2 (318) 14-3/8 (365) 17-5/8 (448)
F (Check Removal Clearance) 6-1/2 (165) 7-1/2 (191) 7-1/2 (191)
Test Cocks (NPT) 1/2 (15) 3/4 (20) 3/4 (20)
Net Wt. (Less Valves) 65 (30) 101 (46) 245 (111)
Net Wt. (w/Butterfly Valves) 109 (50) 169 (77) 376 (170)
Net Wt. (w/OS&Y Gate Valves) 220 (100) 350 (159) 722 (327)
PENDING
PENDING
PENDING
PENDING
1. Nominal dimensions are shown. Allowances must be made for manufacturers’ tolerances SEE PAGE 62 FOR FLOW CURVES
2. Internal body connections are grooved on 2-1/2”-10” sizes.
3. Internal body connections are flanged on 12” size.
