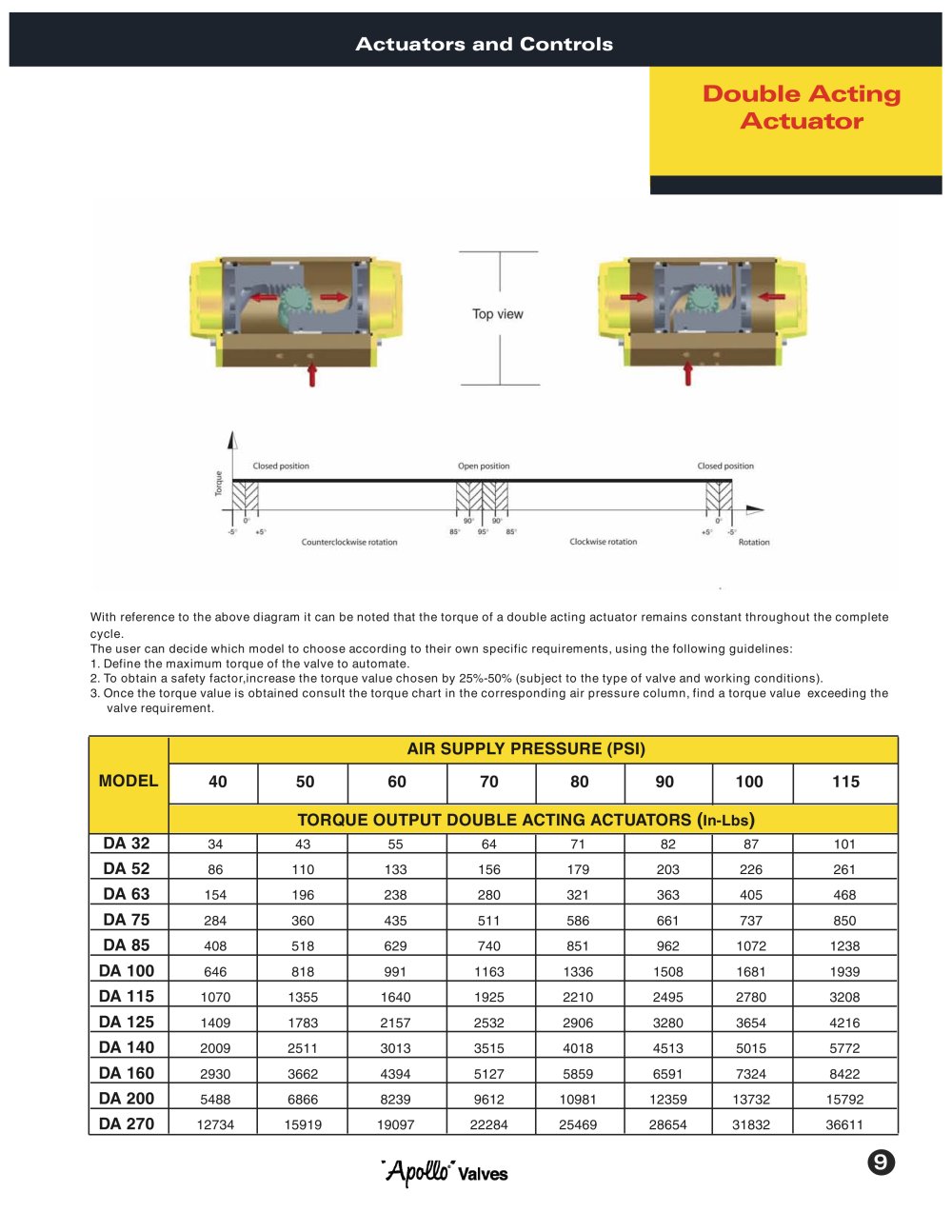

Double Acting Actuator Actuators and Controls With reference to the above diagram it can be noted that the torque of a double acting actuator remains constant throughout the complete cycle. The user can decide which model to choose according to their own specific requirements, using the following guidelines: 1. Define the maximum torque of the valve to automate. 2. To obtain a safety factor,increase the torque value chosen by 25%-50% (subject to the type of valve and working conditions). 3. Once the torque value is obtained consult the torque chart in the corresponding air pressure column, find a torque value exceeding the valve requirement. DA 32 34 43 55 64 71 82 87 101 DA 52 86 110 133 156 179 203 226 261 DA 63 154 196 238 280 321 363 405 468 DA 75 284 360 435 511 586 661 737 850 DA 85 408 518 629 740 851 962 1072 1238 DA 100 646 818 991 1163 1336 1508 1681 1939 DA 115 1070 1355 1640 1925 2210 2495 2780 3208 DA 125 1409 1783 2157 2532 2906 3280 3654 4216 DA 140 2009 2511 3013 3515 4018 4513 5015 5772 DA 160 2930 3662 4394 5127 5859 6591 7324 8422 DA 200 5488 6866 8239 9612 10981 12359 13732 15792 DA 270 12734 15919 19097 22284 25469 28654 31832 36611 AIR SUPPLY PRESSURE (PSI) TORQUE OUTPUT DOUBLE ACTING ACTUATORS (In-Lbs) MODEL 40 50 60 70 80 90 100 115 9
