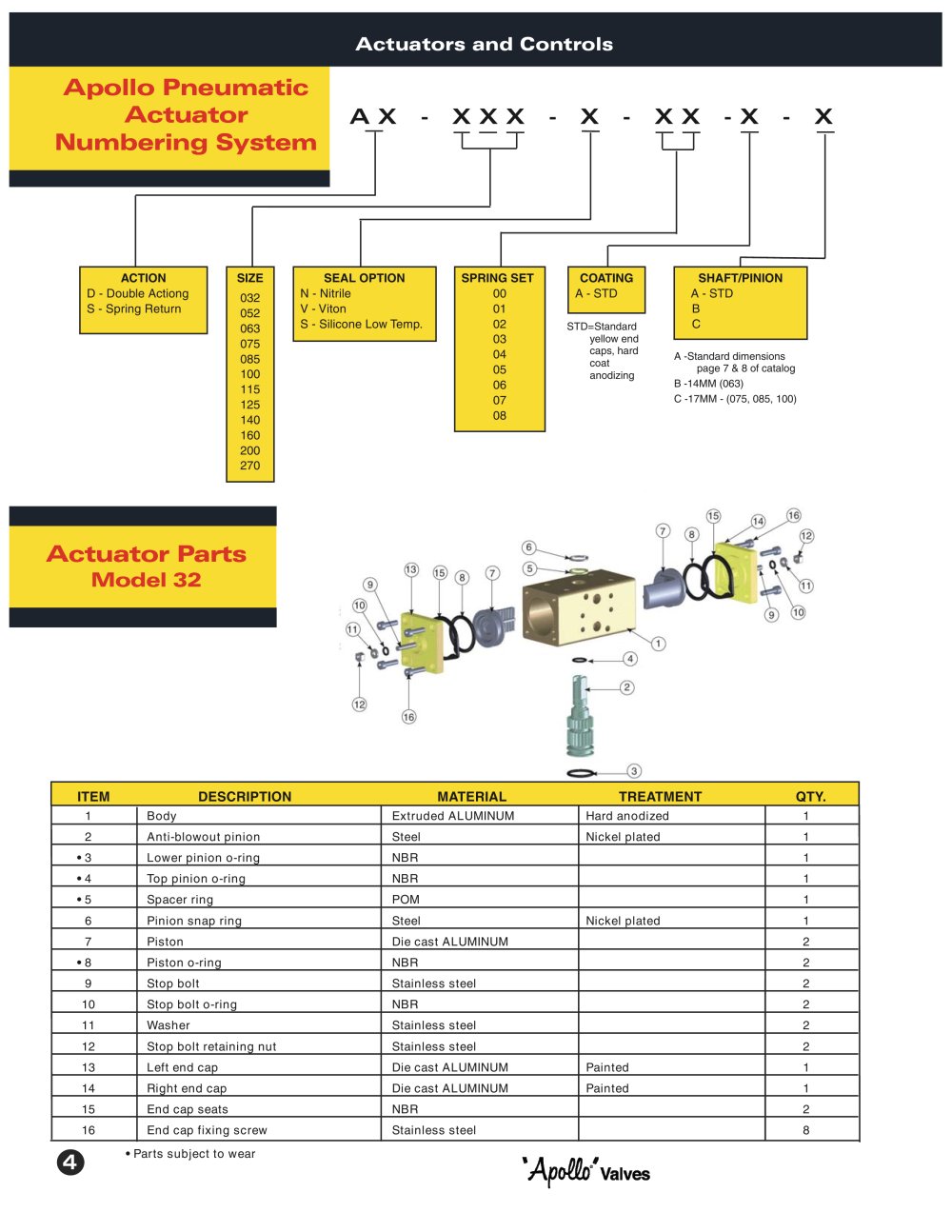

ITEM DESCRIPTION MATERIAL TREATMENT QTY.
Apollo Pneumatic
Actuator
Numbering System
Actuators and Controls
1 Body Extruded ALUMINUM Hard anodized 1
2 Anti-blowout pinion Steel Nickel plated 1
• 3 Lower pinion o-ring NBR 1
• 4 Top pinion o-ring NBR 1
• 5 Spacer ring POM 1
6 Pinion snap ring Steel Nickel plated 1
7 Piston Die cast ALUMINUM 2
• 8 Piston o-ring NBR 2
9 Stop bolt Stainless steel 2
10 Stop bolt o-ring NBR 2
11 Washer Stainless steel 2
12 Stop bolt retaining nut Stainless steel 2
13 Left end cap Die cast ALUMINUM Painted 1
14 Right end cap Die cast ALUMINUM Painted 1
15 End cap seats NBR 2
16 End cap fixing screw Stainless steel 8
• Parts subject to wear 4
A X - X X X - X - X X - X - X
Actuator Parts
Model 32
SIZE
032
052
063
075
085
100
115
125
140
160
200
270
ACTION
D - Double Actiong
S - Spring Return
SPRING SET
00
01
02
03
04
05
06
07
08
SEAL OPTION
N - Nitrile
V - Viton
S - Silicone Low Temp.
COATING
A - STD
SHAFT/PINION
A - STD
B
STD=Standard C
yellow end
caps, hard
coat
anodizing
A -Standard dimensions
page 7 & 8 of catalog
B -14MM (063)
C -17MM - (075, 085, 100)
