industry revolves around

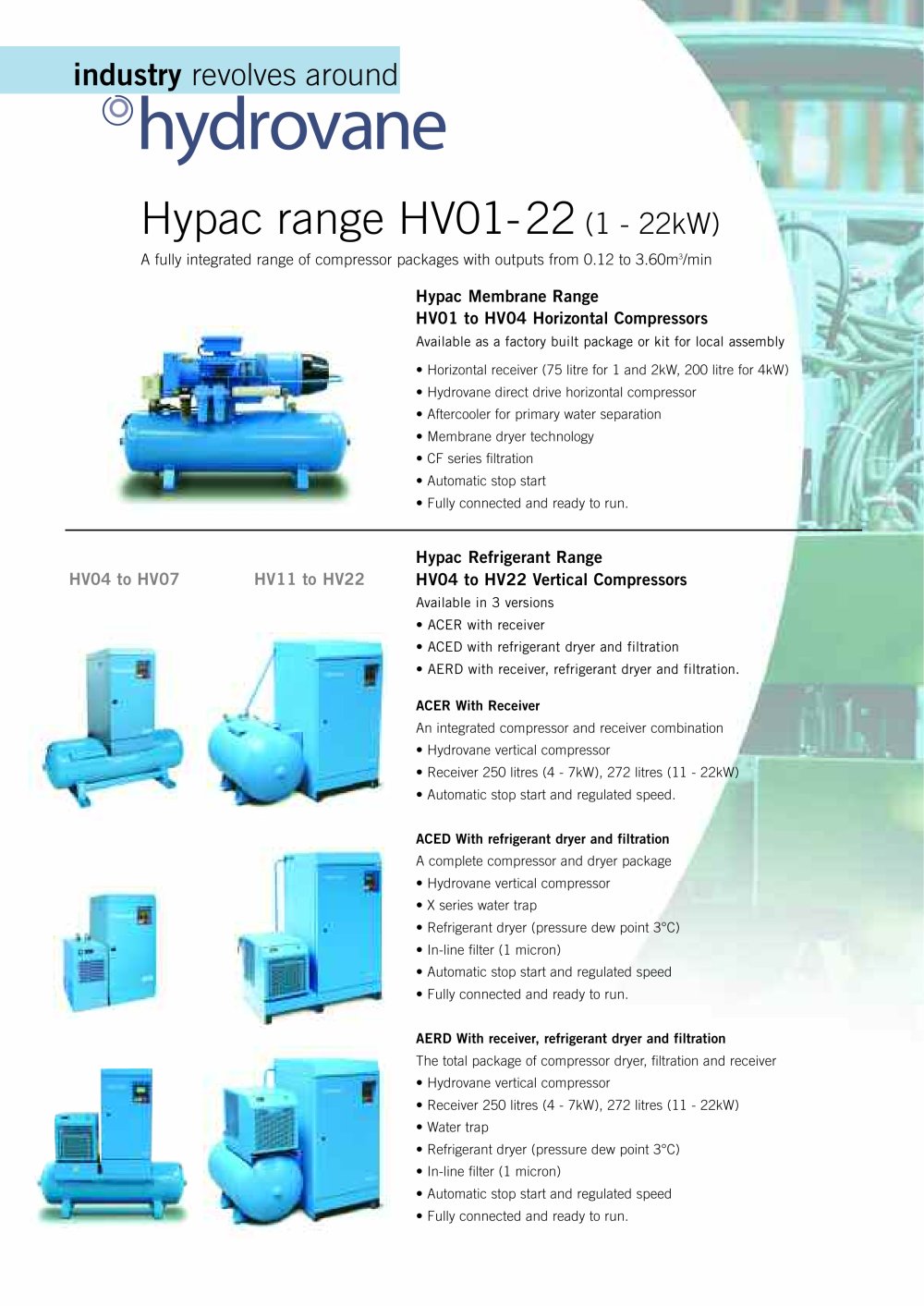

Hydrovane - 5576 Hypac range HV01-22

(1 - 22kW)

Afully integrated range of compressor packages with outputs from 0.12 to 3.60m

3

/min

Hypac Membrane RangeHV01 to HV04 Horizontal Compressors

Available as a factory built package or kit for local assembly •Horizontal receiver (75 litre for 1 and 2kW, 200 litre for 4kW)•Hydrovane direct drive horizontal compressor •Aftercooler for primary water separation •Membrane dryer technology •CF series filtration •Automatic stop start •Fully connected and ready to run.

Hypac Refrigerant RangeHV04 to HV22 Vertical Compressors

AERD With receiver, refrigerant dryer and filtration

HV04 to HV07 HV11 to HV22

The total package of compressor dryer, filtration and receiver •Hydrovane vertical compressor •Receiver 250 litres (4 - 7kW), 272 litres (11 - 22kW) •Water trap •Refrigerant dryer (pressure dew point 3°C) •In-line filter (1 micron) •Automatic stop start and regulated speed •Fully connected and ready to run. Available in 3 versions•ACER with receiver •ACED with refrigerant dryer and filtration •AERD with receiver, refrigerant dryer and filtration. ACER With Receiver ACED With refrigerant dryer and filtration An integrated compressor and receiver combination •Hydrovane vertical compressor •Receiver 250 litres (4 - 7kW), 272 litres (11 - 22kW) •Automatic stop startand regulated speed. Acomplete compressor and dryer package •Hydrovane vertical compressor •Xseries water trap •Refrigerant dryer (pressure dew point 3°C) •In-line filter (1 micron) •Automatic stop start and regulated speed •Fully connected and ready to run.
