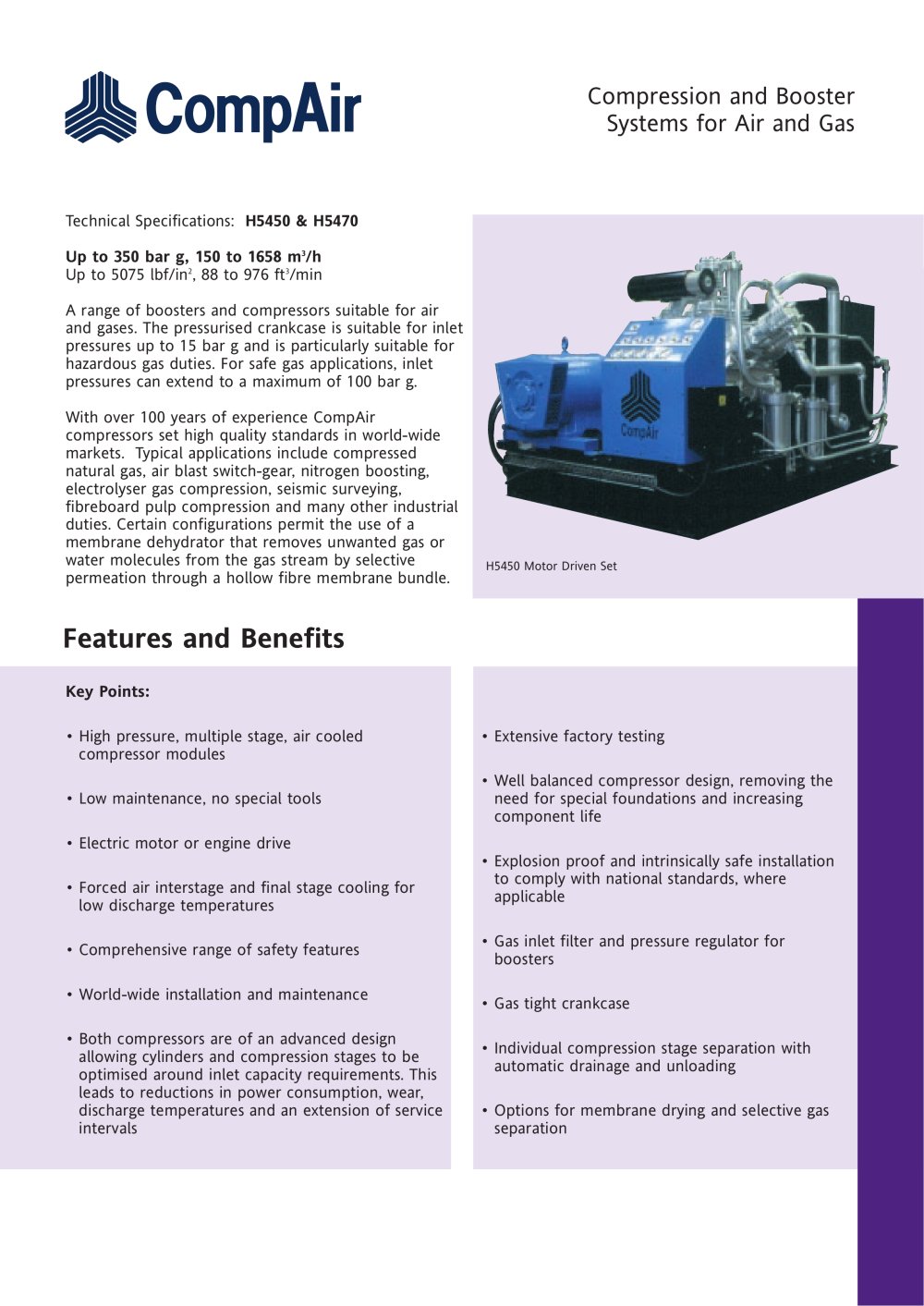

Compression and BoosterSystems for Air and Gas
Technical Specifications: H5450 & H5470Up to 350 bar g, 150 to 1658 m
3 2 3 /h Up to 5075 lbf/in , 88 to 976 ft /minA range of boosters and
compressors suitable for airand gases. The pressurised crankcase is suitable for inlet
pressures up to 15 bar g and is particularly suitable for
hazardous gas duties. For safe gas applications, inlet
pressures can extend to a maximum of 100 bar g.With over 100 years of experience CompAircompressors set high quality standards in world-wide
markets. Typical applications include compressed
natural gas, air blast switch-gear, nitrogen boosting,
electrolyser gas compression, seismic surveying,
fibreboard pulp compression and many other industrial
duties. Certain configurations permit the use of a
membrane dehydrator that removes unwanted gas or
water molecules from the gas stream by selective
permeation through a hollow fibre membrane bundle.
H5450 Motor Driven Set
Compression and Booster Systems for Air and Gas - 5576 Features and Benefits
Key Points: • High pressure, multiple stage, air cooledcompressor modules• Low maintenance, no special tools
• Electric motor or engine drive• Forced air interstage and final stage cooling forlow discharge temperatures• Comprehensive range of safety features
• World-wide installation and maintenance
• Both
compressors are of an advanced designallowing cylinders and compression stages to beoptimised around inlet capacity requirements. This
leads to reductions in power consumption, wear,
discharge temperatures and an extension of serviceintervals • Extensive factory testing• Well balanced
compressor design, removing theneed for special foundations and increasing
component life• Explosion proof and intrinsically safe installationto comply with national standards, where
applicable• Gas inlet filter and pressure regulator forboosters• Gas tight crankcase• Individual compression stage separation withautomatic drainage and unloading• Options for membrane drying and selective gasseparation
