C-mac

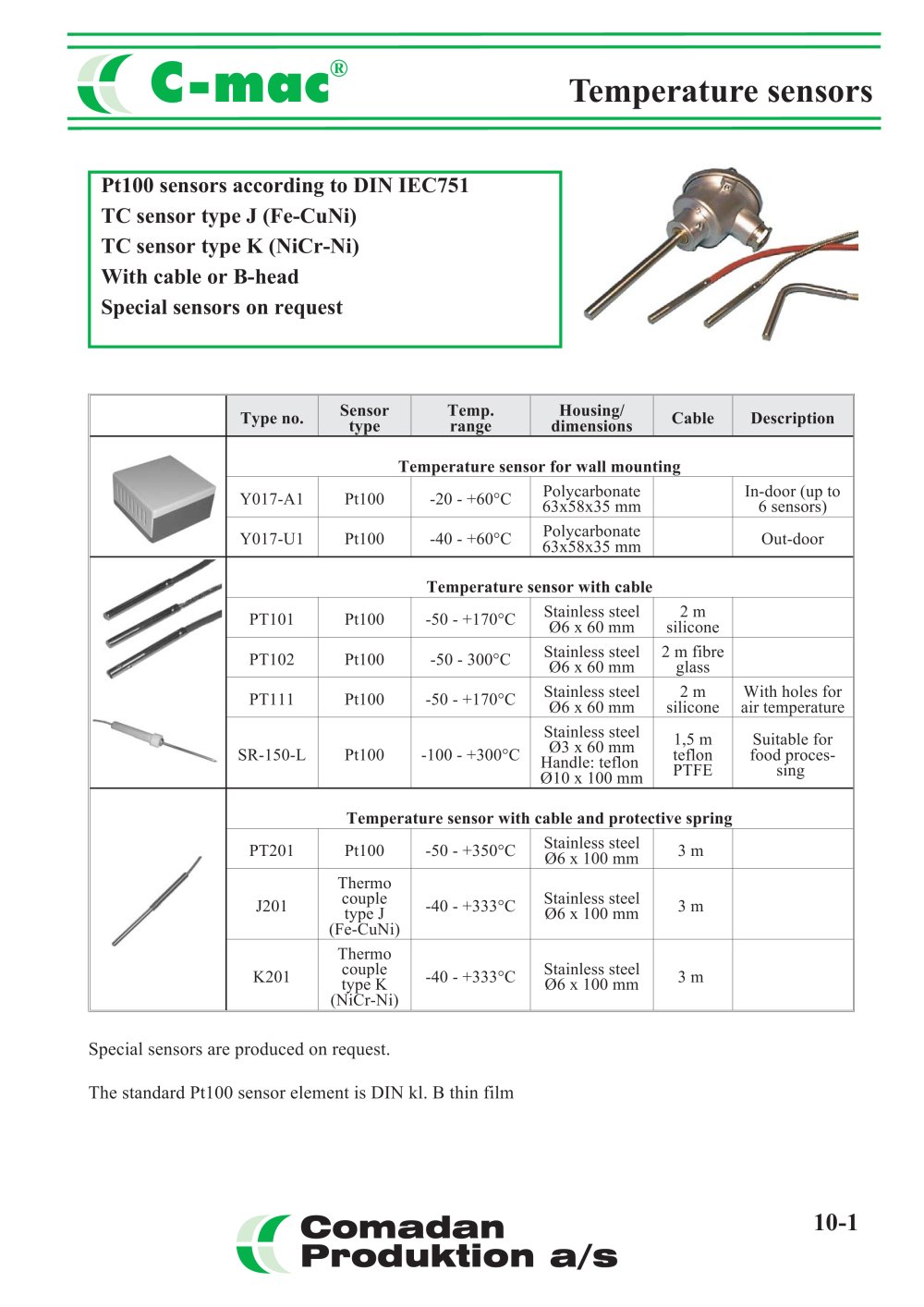

Temperature sensors

Pt100 sensors according to DIN IEC751 TC sensor type J (Fe-CuNi)

TC sensor type K (NiCr-Ni)

With cable or B-head Special sensors on request


Type no.	Sensor	Temp. range	Housing/ dimensions	Cable	Description
Temperature sensor for wall mounting
Y017-A1	Pt100	-20 - +60°C	Polycarbonate 63x58x35 mm		In-door (up to 6 sensors)
Y017-U1	Pt100	-40 - +60°C	Polycarbonate 63x58x35 mm		Out-door
Temperature sensor with cable
PT101	Pt100	-50 -+170°C	Stainless steel 06 x60 mm	2 m silicone
PT102	Pt100	-50 - 300°C	Stainless steel 06 x60 mm	2 m fibre glass
PT111	Pt100	-50 -+170°C	Stainless steel 06 x60 mm	2 m silicone	With holes for air temperature
SR-150-L	Pt100	-100-+300°C	Stainless steel 03 x60 mm Handle: teflon 010 x 100 mm	1,5 m teflon PTFE	Suitable for food processing
Temperature sensor with cable and protective spring
PT201	Pt100	-50 - +350°C	Stainless steel 06 x 100 mm	3m
J201	Thermo couple type J (Fe-CuNi)	-40 - +333°C	Stainless steel 06 x 100 mm	3m
K201	Thermo couple type K (NiCr-Ni)	-40 - +333°C	Stainless steel 06 x 100 mm	3m

Special sensors are produced on request.

The standard Pt100 sensor element is DIN kl. B thin film

10-1

f Comadan V Produktion a/s
