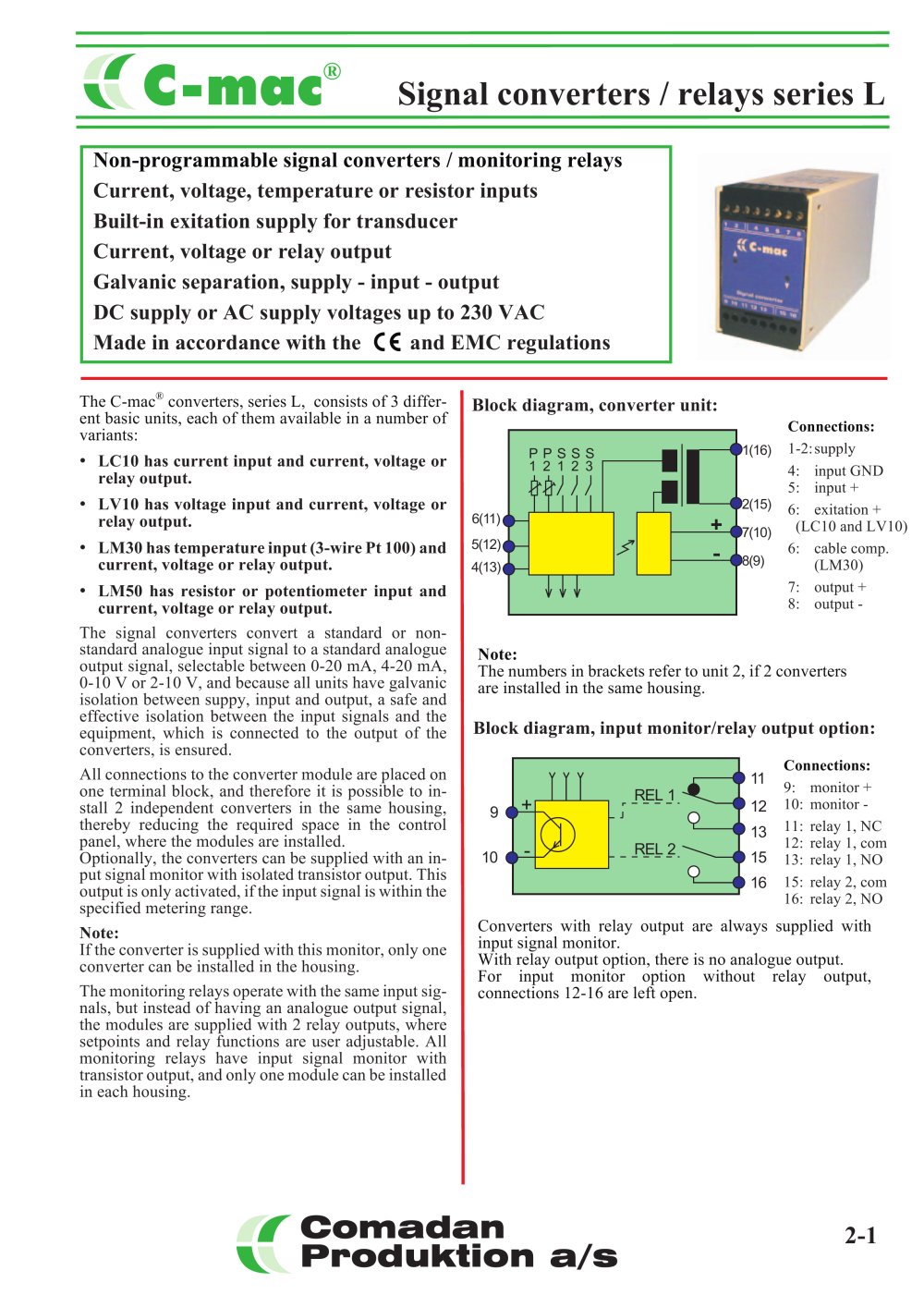

Series L, current, voltage, temperature and potentiometer converters - COMADAN - #1

V

Made in accordance with the C€ and EMC regulations

The C-n

i. each of them available ii

1-2:supply input C1ND

(LClOand LV10) 6: cable comp.

(LM30) 7: oufput + 8: output -

„||-^ ^,7<'⁰¹

I I-^ B(9)

P P s s s

current, voltage or relay output, '['lii' signal converters convert a standard or non­standard analogue hipül signal m a standard analogue output signal, selectable between 0-20 tnA. 4-20 mA, 0-1 0 V or 2-10 V, and because all units have galvanic isolation between suppy, input and oulpul. a safe and effective isolation between the input signals and the equipment, which is connected to the output of the converters, is ensured.

All connections to the converter module are placed on one terminal block, and therefore il is possible to in­stall 2 independent conveners in the same housing, therein reducing the required space in the control panel, u here the modules are installed. < Ipiionally. die converters can be supplied with an in­put signal monitor w ith isolated transistor output. This output is only acli\ ated. if the input signal is within the specified metering range. Note:

If the converter is supplied with this monitor, only one converter can be installed in the housing. The monitoring relays opérale v. ith the same input sig­nals, but instead of having an analogue output signal, the modules arc supplied with 2 relay outputs, where setpoints and relay functions are user adjustable. All monitoring relays have input signal monitor with transistor oulpul. and onK one module can be installed in each housing.

n brackets refer to ut i the same housing.

Converters with relay output are always supplied with input signal monitor.

With relay output option, there is no analogue output. For input monitor option without relay output, connections 12-16 are left open.

f Comadan V Produktion a/s
