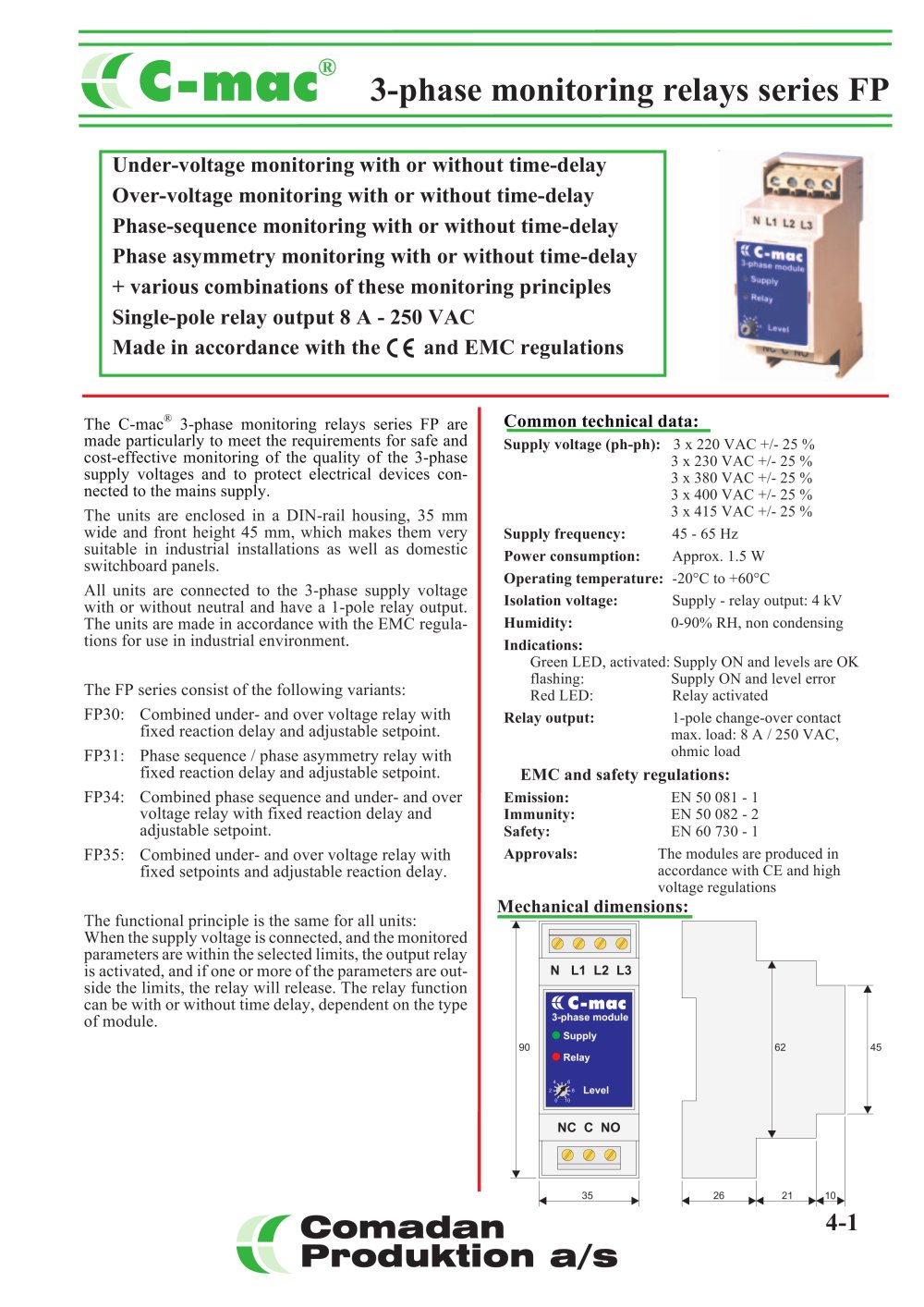

| | | v'C-mac | | |
| | | | | |
| | | |
| | | Under-voltage monitoring with or without time-delay Over-voltage monitoring with or without time-delay Phase-sequence monitoring with or without time-delay Phase asymmetry monitoring with or without time-delay + various combinations of these monitoring principles Single-pole relay output 8 A - 250 VAC Made in accordance with the C € and EMC regulations | | |
| | | |
| | | Common technical data: Supply voltage (ph-ph): 3 x 220 VAC +/- 25 "A | | |
| | | The C-mac* 3-phase monitoring relays scries FP are made particularly to meet the requirements for sale and cost-effective monitoring of the quality of the 3-phase supply voltages and In prelect electrical devices Connected to the mains supply. The units are enclosed in a DIN-rail housing, 35 mm wide and front height 45 mm. which makes them very suitable in industrial installations as well as domestic s\\ itchhoard panels. All units are connected to the 3-phase supply voltage with or without neutral and have a I-pole re I a; output. The units arc made in accordance with the 1;VIC' regulations for use in industrial ■ | | |
| | | | | | | | | | | 3 x 230 VAC +/- 25 % | | | | | 3 x 380 VAC +/- 25 % | | | | | 3 x 400 VAC +/- 25 % | | | | | 3x415 VAC+/-25% | | | | Supply frequency: | 45 - 65 Hz | | | | Power consumption: | Approx. 1.5 W | | | | Opi'iai in:; ii'iiipi'i'iiture: | -20°C to +60"C | | | | 1 so la lion voltage: | Supplj - relay output: 4 kV | | | | Humidity: | 0-90% RH, non condensing | | | | Indications: | | | | | Green LED, activate! | Supply ON and levels are OK. | | | | Hashing: | Supply ON ami level error | | | | Red LED: | Relay activated | | | | Relay output: | 1-pole clianee-over contact | | | | | max. load: 8 A / 250 VAC, | | | | | orunic load | | | | EMC and safety regulations: | | | | emission: | EN 50 081 - 1 | | | | Immunity; | FN 50 082 -2 | | | | Safety: | EN 60 730 - 1 | | | | | | | | | |
| | | |
| | | The FP series consist of the follow ing variants: FP30: Combined under- and over voltage relay with fixed reaction delay and adjustable sctpoint. FP3 1: Phase sequence phase asymmetry relay with fixed reaction delay and adjustable setpoint. FP34: Combined phase sequence ami under- and over voltage relay v. itii fixed reaction delay and adjustable setpoint. | | |
| | | |
| | | |
| | | Approvals: The modules are produced In accordance with CE and high voltage regulations Mechanical dimensions: | | |
| | | |
| | | The functional principle is the same for all units: When the supply voltage is connected, ami the monitored parameters are within the selected limits, the output relay-is activated, and if one or more ol'lhe parameters arc outside the limits, the relay «ili release. The relay function can be with or without time delay, dependent on the type of module. | | |
| | | N L1 L2 L3 | | |
| | | |
| | | |
| | | „ 26 | | |
| | | |
| | | Co mad an V Produktion a/s | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | |
