| v'C-mac | |||||||||||||||||||||||||||||||||||

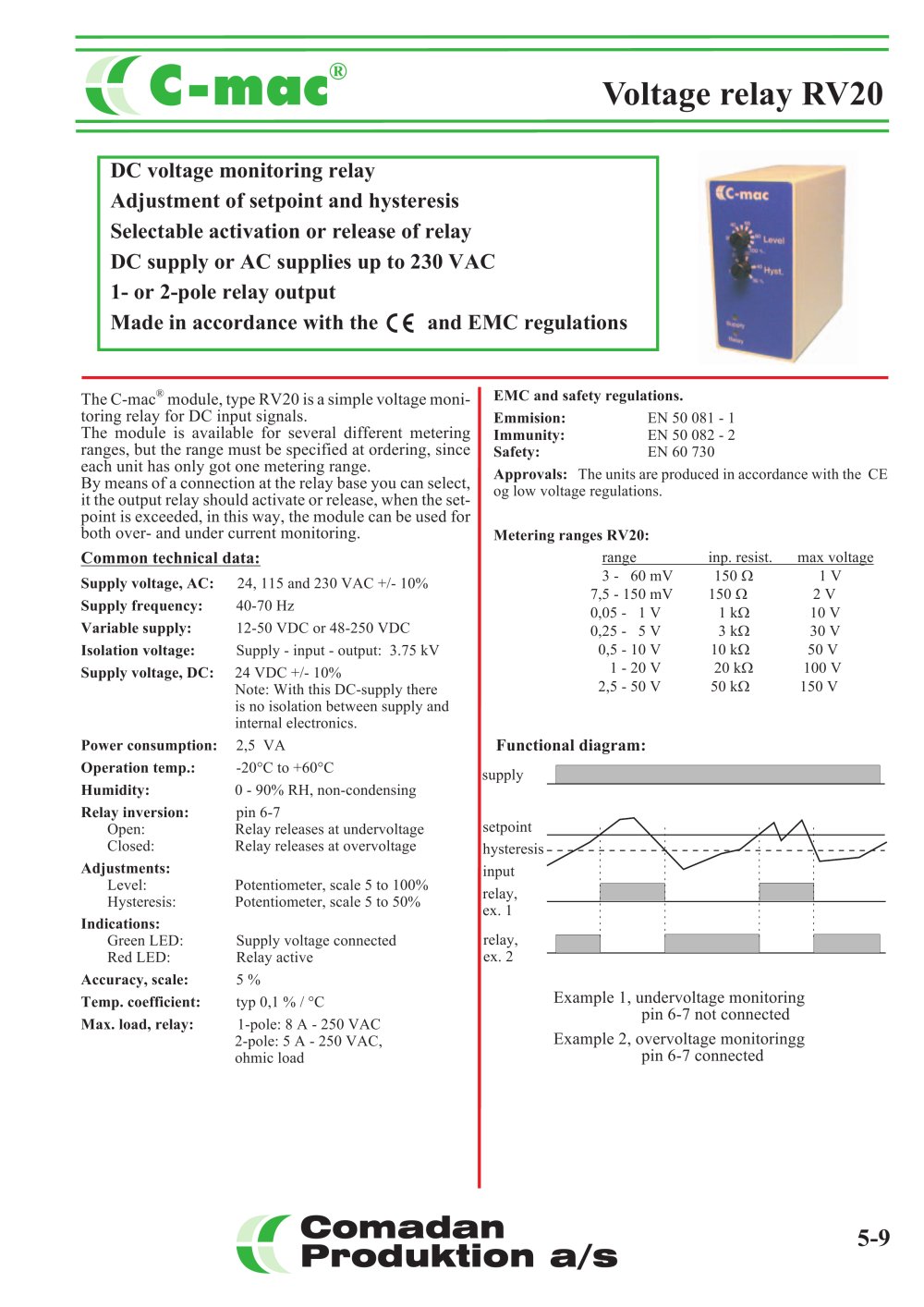

| Voltage relay RV20 | |||||||||||||||||||||||||||||||||||
| DC voltage monitoring relay Adjustment of setpoint and hysteresis Selectable activation or release of relay DC supply or AC supplies up to 230 VAC 1- or 2-pole relay output Made in accordance with the C € and EMC regulations | |||||||||||||||||||||||||||||||||||
| The C-mac® module, type RV20 is a simple voltage monitoring relay for DC input signals. The module is available for several different metering ranges, but the range must be specified at ordering, since each unit has only got one metering range. By means of a connection at the relay base you can select, it the output relay should activate or release, when the setpoint is exceeded, in this way, the module can be used for both over- and under current monitoring. Common technical data: | |||||||||||||||||||||||||||||||||||
| EMC and safety regulations. Emmision: EN 50 081 -1 Immunity: EN 50 082 - 2 Safety: EN 60 730 Approvals: The units are produced in accordance with the CE og low voltage regulations. | |||||||||||||||||||||||||||||||||||
| Metering ranges RV20: range | |||||||||||||||||||||||||||||||||||
| inp. resist. 150 Q 150 Q 1 kQ 3 kQ 10kQ 20kQ 50kQ | max voltage 1V 2V 10V 30 V 50 V 100V 150V | ||||||||||||||||||||||||||||||||||
| 3- 60 mV 7,5 - 150 mV 0,05- 1V 0,25- 5 V 0,5-10V 1-20V 2,5-50V | |||||||||||||||||||||||||||||||||||
| 24, 115 and 230 VAC +/- 10% 40-70 Hz 12-50 VDC or 48-250 VDC Supply - input - output: 3.75 kV 24 VDC +/- 10% Note: With this DC-supply there is no isolation between supply and internal electronics. 2,5 VA -20°C to +60°C 0 - 90% RH, non-condensing pin 6-7 Relay releases at undervoltage Relay releases at overvoltage Potentiometer, scale 5 to 100% Potentiometer, scale 5 to 50% Supply voltage connected Relay active 5% typ0,1%/°C 1-pole:8A-250VAC 2-pole:5A-250VAC, ohmic load | |||||||||||||||||||||||||||||||||||
| Supply voltage, AC: Supply frequency: Variable supply: Isolation voltage: Supply voltage, DC: | |||||||||||||||||||||||||||||||||||
| Functional diagram: supply | |||||||||||||||||||||||||||||||||||
| Power consumption: Operation temp.: Humidity: Relay inversion: Open: Closed: Adjustments: Level: Hysteresis: Indications: Green LED: Red LED: Accuracy, scale: Temp. coefficient: Max. load, relay: | |||||||||||||||||||||||||||||||||||
| setpoint hysteresis input relay, ex. 1 relay, | |||||||||||||||||||||||||||||||||||
| ex. 2 | |||||||||||||||||||||||||||||||||||
| Example 1, undervoltage monitoring pin 6-7 not connected Example 2, overvoltage monitoringg pin 6-7 connected | |||||||||||||||||||||||||||||||||||
| f Comadan V Produktion a/s | |||||||||||||||||||||||||||||||||||
| 5-9 | |||||||||||||||||||||||||||||||||||
