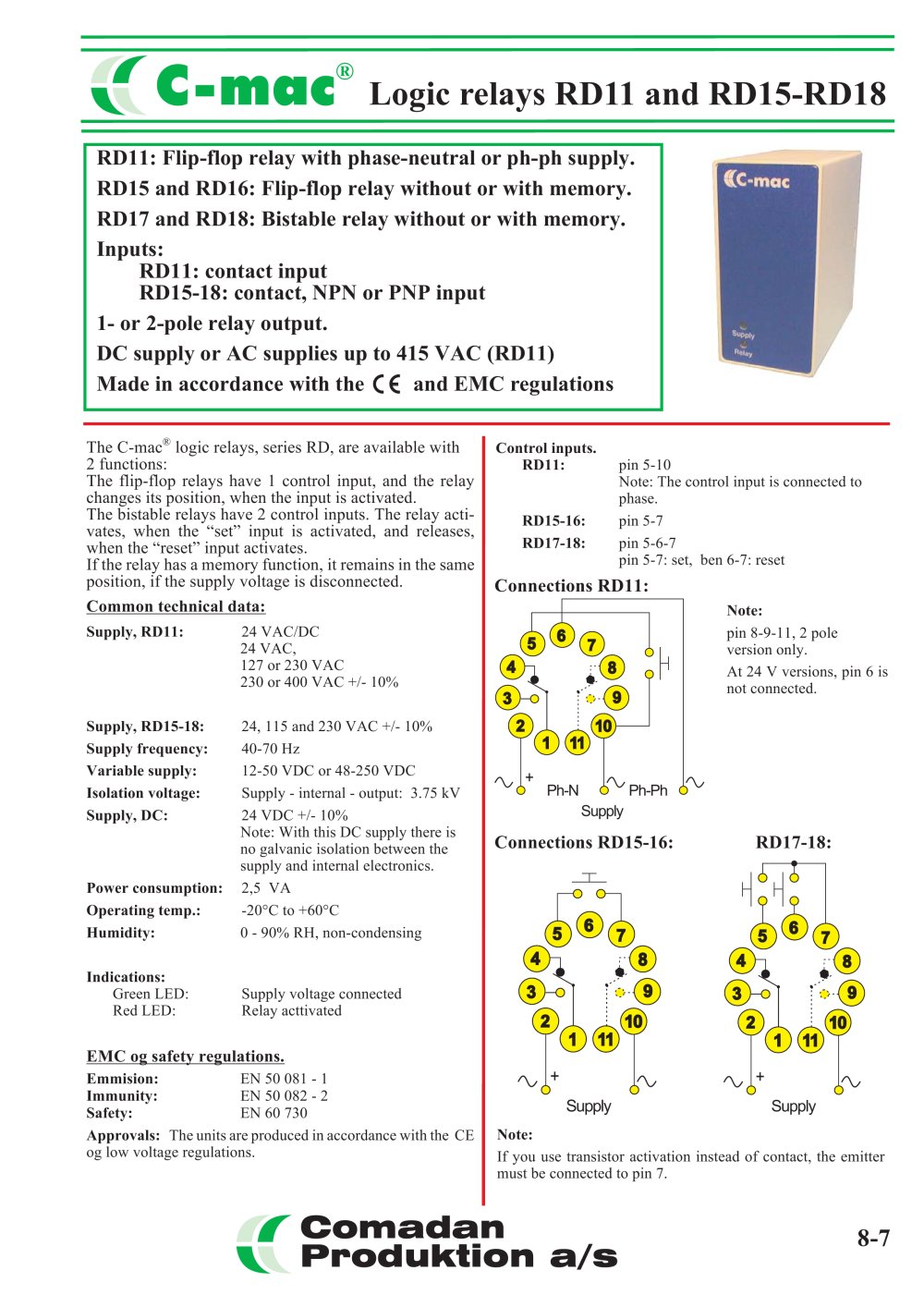

V C -maC® Logic relays RD11 and RD15-RD18

RD11: Flip-flop relay with phase-neutral or ph-ph supply.

RD15 and RD16: Flip-flop relay without or with memory.

RD17 and RD18: Bistable relay without or with memory.

Inputs:

RD11: contact input

RD15-18: contact, NPN or PNP input

1- or 2-pole relay output.

DC supply or AC supplies up to 415 VAC (RD11) Made in accordance with the C € and EMC regulations

The C-mac® logic relays, series RD, are available with 2 functions:

The flip-flop relays have 1 control input, and the relay changes its position, when the input is activated. The bistable relays have 2 control inputs. The relay activates, when the "set" input is activated, and releases, when the "reset" input activates.

If the relay has a memory function, it remains in the same position, if the supply voltage is disconnected.

Common technical data:

Control inputs.

RD11: pin 5-10

Note: The control input is connected to phase.

RD15-16: pin 5-7

RD17-18: pin 5-6-7

pin 5-7: set, ben 6-7: reset

Connections RD11:

Note:

pin8-9-11, 2 pole version only.

At 24 V versions, pin 6 is not connected.

24 VAC/DC

24 VAC,

127 or 230 VAC

230 or 400 VAC+/- 10%

24, 115 and 230 VAC +/- 10% 40-70 Hz

12-50 VDC or 48-250 VDC Supply - internal - output: 3.75 kV

24 VDC +/- 10%

Note: With this DC supply there is no galvanic isolation between the supply and internal electronics.

2,5 VA

-20°C to +60°C

0 - 90% RH, non-condensing

Supply, RD11:

Supply, RD15-18: Supply frequency: Variable supply: Isolation voltage:

Supply, DC:

€><§)

ô Ph-N ò^vPh-Ph ò Supply

Connections RD15-16:

RD17-18:

Power consumption: Operating temp.: Humidity:

Indications:

Green LED: Red LED:

©i i© ©i s®

*©

Supply voltage connected Relay acttivated

©@

EMC og safety regulations.

Emmision: EN 50 081 -1

Immunity: EN 50 082 - 2

Safety: EN 60 730

Approvals: The units are produced in accordance with the CE og low voltage regulations.

Supply

Note:

If you use transistor activation instead of contact, the emitter must be connected to pin 7.

f Comadan V Produktion a/s

8-7
