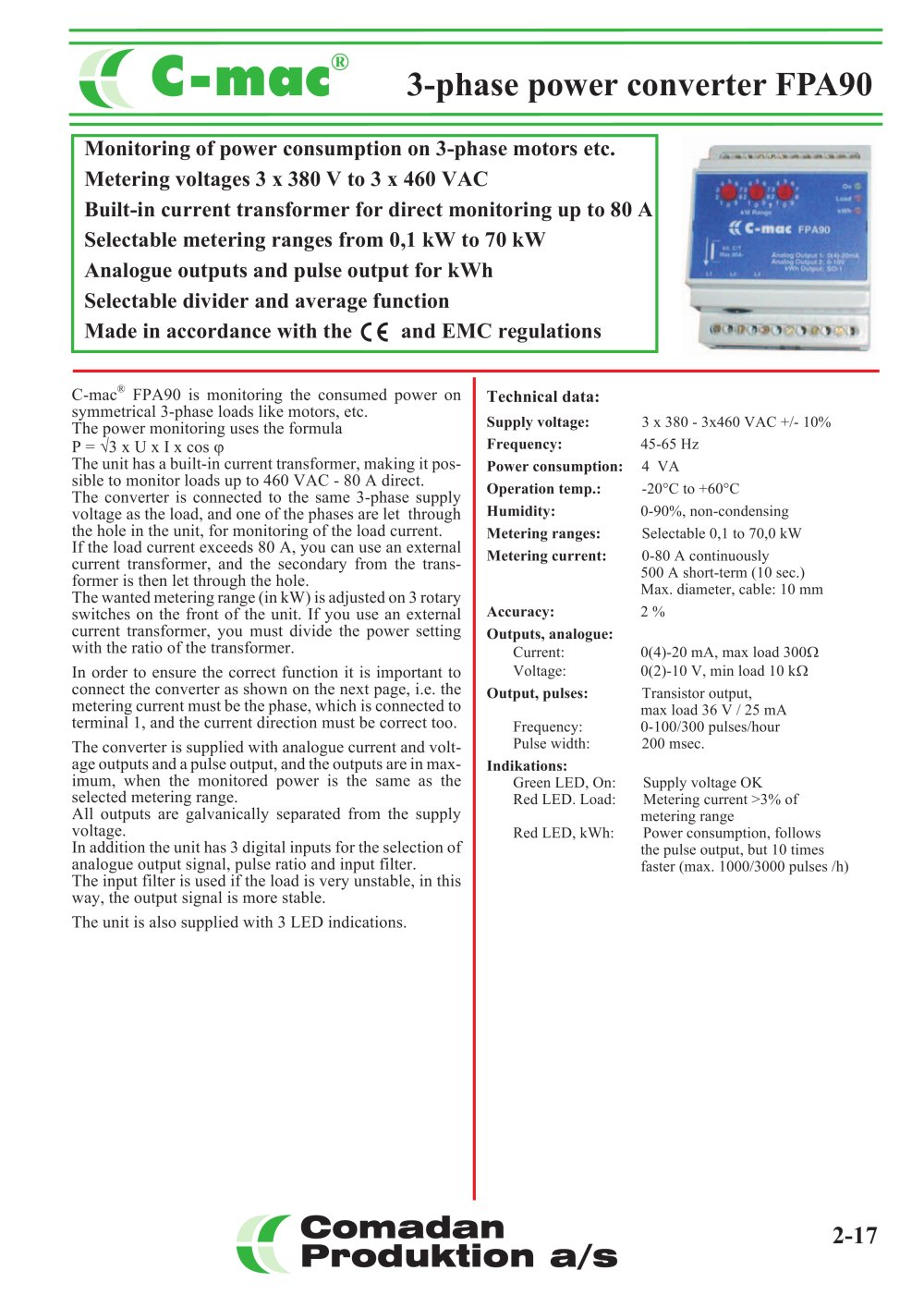

| C "HICIC 3-phase power converter FPA90 | ||||||||||||||||||||||||||||||||
| Monitoring of power consumption on 3-phase motors etc. Metering voltages3x380Vto3x460VAC Built-in current transformer for direct monitoring up to 80 A Selectable metering ranges from 0,1 kW to 70 kW Analogue outputs and pulse output for kWh Selectable divider and average function Made in accordance with the C € and EMC regulations | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
| C-mac® FPA90 is monitoring the consumed power on symmetrical 3-phase loads like motors, etc. The power monitoring uses the formula P= \3 xUxIxcos cp The unit has a built-in current transformer, making it possible to monitor loads up to 460 VAC - 80 A direct. The converter is connected to the same 3-phase supply voltage as the load, and one of the phases are let through the hole in the unit, for monitoring of the load current. If the load current exceeds 80 A, you can use an external current transformer, and the secondary from the transformer is then let through the hole. The wanted metering range (in kW) is adjusted on 3 rotary switches on the front of the unit. If you use an external current transformer, you must divide the power setting with the ratio of the transformer. In order to ensure the correct function it is important to connect the converter as shown on the next page, i.e. the metering current must be the phase, which is connected to terminal 1, and the current direction must be correct too. The converter is supplied with analogue current and voltage outputs and a pulse output, and the outputs are in maximum, when the monitored power is the same as the selected metering range. All outputs are galvanically separated from the supply voltage. In addition the unit has 3 digital inputs for the selection of analogue output signal, pulse ratio and input filter. The input filter is used if the load is very unstable, in this way, the output signal is more stable. The unit is also supplied with 3 LED indications. | ||||||||||||||||||||||||||||||||
| Technical data: Supply voltage: Frequency: Power consumption: Operation temp.: Humidity: Metering ranges: Metering current: | ||||||||||||||||||||||||||||||||
| 3 x 380 - 3x460 VAC +/- 10% 45-65 Hz 4VA -20°C to +60°C 0-90%, non-condensing Selectable 0,1 to 70,0 kW 0-80 A continuously 500 A short-term (10 sec.) Max. diameter, cable: 10 mm 2% 0(4)-20 mA, max load 300Q 0(2)-10 V, min load 10 kQ Transistor output, max load 36V/25mA 0-100/300 pulses/hour 200 msec. Supply voltage OK Metering current >3% of metering range Power consumption, follows the pulse output, but 10 times faster (max. 1000/3000 pulses /h) | ||||||||||||||||||||||||||||||||
| Accuracy: Outputs, analogue: Current: Voltage: Output, pulses: Frequency: Pulse width: Indikations: Green LED, On: Red LED. Load: Red LED, kWh: | ||||||||||||||||||||||||||||||||
| f Comadan V Produktion a/s | ||||||||||||||||||||||||||||||||
| 2-17 | ||||||||||||||||||||||||||||||||
