v' C-mac

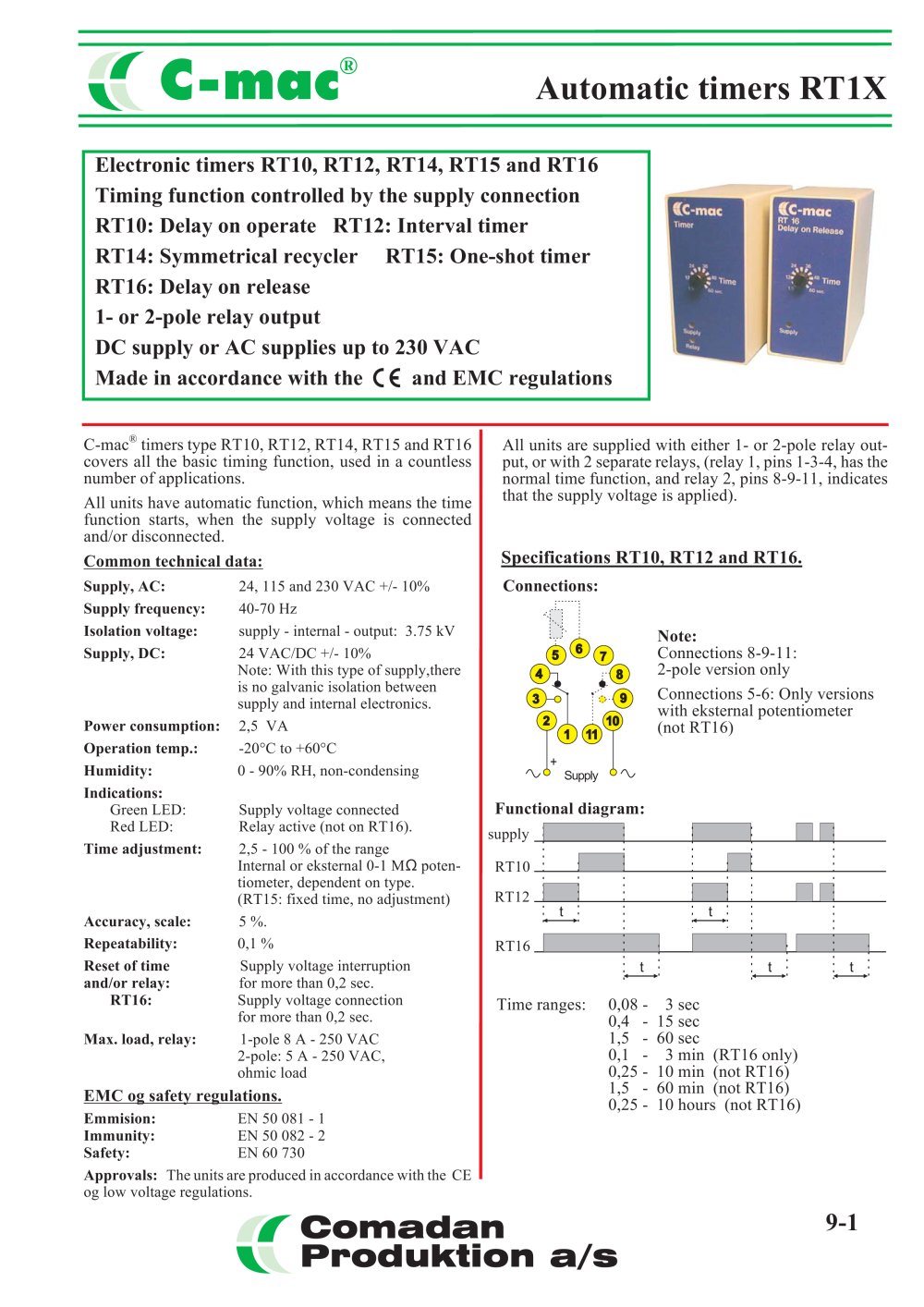

Automatic timers RT1X

Electronic timers RT10, RT12, RT14, RT15 and RT16

Timing function controlled by the supply connection

RT10: Delay on operate RT12: Interval timer

RT14: Symmetrical recycler RT15: One-shot timer

RT16: Delay on release

1- or 2-pole relay output

DC supply or AC supplies up to 230 VAC

Made in accordance with the C € and EMC regulations

CC-mac

Timer

C-mac® timers type RT10, RT12, RT14, RT15 and RT16 covers all the basic timing function, used in a countless number of applications.

All units have automatic function, which means the time function starts, when the supply voltage is connected and/or disconnected.

Common technical data:

All units are supplied with either 1- or 2-pole relay output, or with 2 separate relays, (relay 1, pins 1-3-4, has the normal time function, and relay 2, pins 8-9-11, indicates that the supply voltage is applied).

Specifications RT10, RT12 and RT16. Connections:

24, 115 and 230 VAC +/- 10% 40-70 Hz

supply - internal - output: 3.75 kV

24 VAC/DC+/- 10% Note: With this type of supply,there is no galvanic isolation between supply and internal electronics.

2,5 VA

-20°C to +60°C

0 - 90% RH, non-condensing

Supply voltage connected Relay active (not on RT16).

2,5 - 100% of the range Internal or eksternal 0-1 Mû potentiometer, dependent on type. (RT15: fixed time, no adjustment)

5%.

0,1 %

Supply voltage interruption for more than 0,2 sec. Supply voltage connection for more than 0,2 sec.

1-pole8A-250VAC 2-pole:5A-250 VAC, ohmic load

Supply, AC: Supply frequency: Isolation voltage:

Supply, DC:

Note:

Connections 8-9-11: 2-pole version only

Connections 5-6: Only versions

with eksternal potentiometer (notRT16)

Power consumption: Operation temp.: Humidity:

Indications:

Green LED: Red LED:

Time adjustment:

'VO Supply ^ò/\/

Functional diagram:


1			nr

¹			nr
: t		t

	t '■		t '■	t

supply.

RT10.

RT12.

RT16

Accuracy, scale:

Repeatability:

Reset of time and/or relay: RT16:

Max. load, relay:

Time ranges:

0,08

0,4

1,5

0,1

0,25

1,5

0,25

3 sec 15 sec 60 sec

3min (RT16only) 10 min (notRT16) 60 min (notRT16) 10 hours (notRT16)

EMC og safety regulations.

Emmision: EN 50 081 -1

Immunity: EN 50 082 - 2

Safety: EN 60 730

Approvals: The units are produced in accordance with the og low voltage regulations.

9-1

Comadan Produktion a/s
