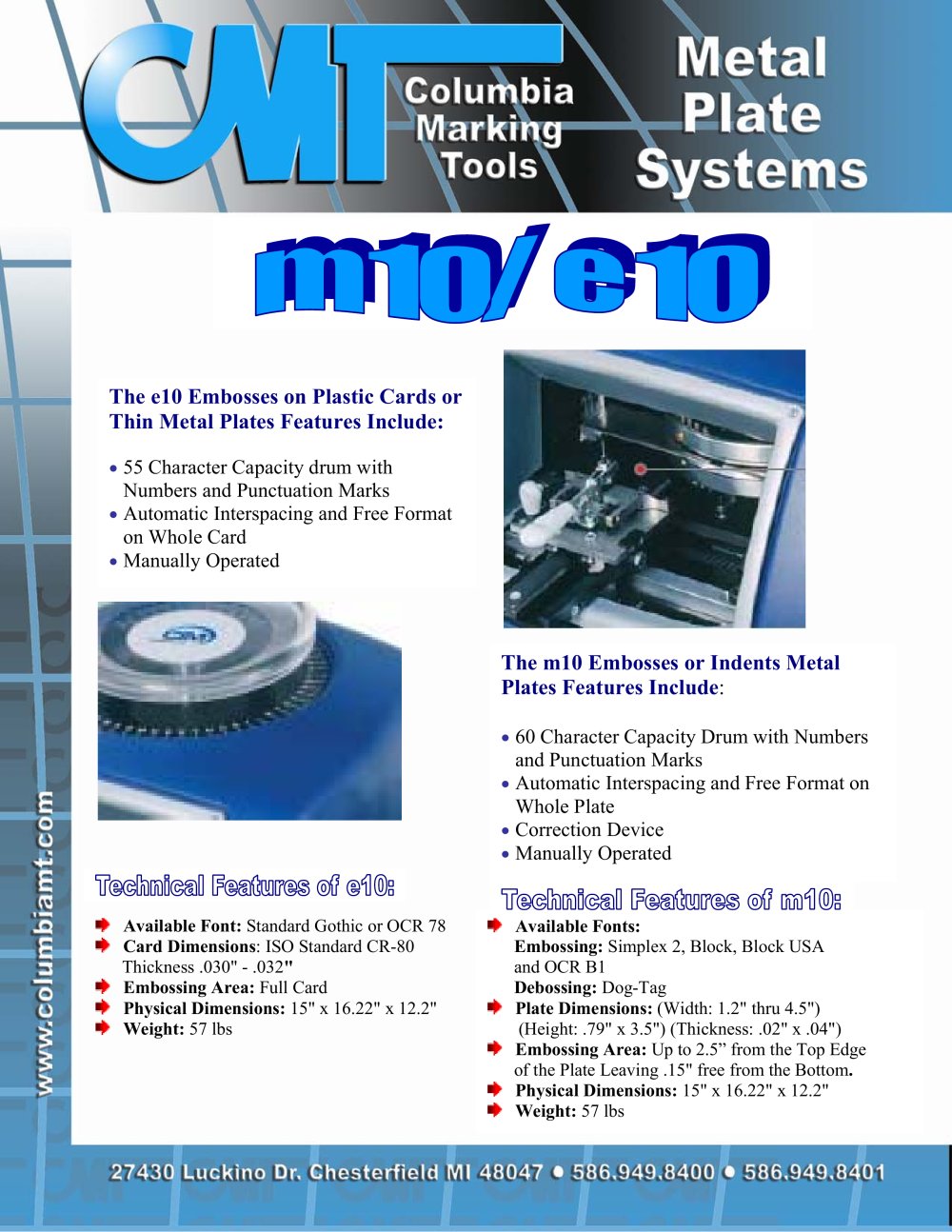

The e10 Embosses on Plastic Cards or Thin Metal Plates Features Include:

55 Character Capacity drum with Numbers and Punctuation Marks Automatic Interspacing and Free Format on Whole Card Manually Operated

The m10 Embosses or Indents MetalPlates Features Include :

60 Character Capacity Drum with Numbers and Punctuation Marks Automatic Interspacing and Free Format on Whole Plate Correction Device Manually Operated

Available Font: Standard Gothic or OCR 78 Available Fonts: Embossing: Card Dimensions : ISO Standard CR-80 Thickness .030" - .032 Simplex 2, Block, Block USA and OCR B1 " Embossing Area: Full Card Debossing: Dog-Tag Physical Dimensions: 15" x 16.22" x 12.2" Plate Dimensions: (Width: 1.2" thru 4.5") (Height: .79" x 3.5") (Thickness: .02" x .04") Weight: 57 lbs Embossing Area: Up to 2.5” from the Top Edge of the Plate Leaving .15" free from the Bottom . Physical Dimensions: 15" x 16.22" x 12.2" Weight: 57 lbs
