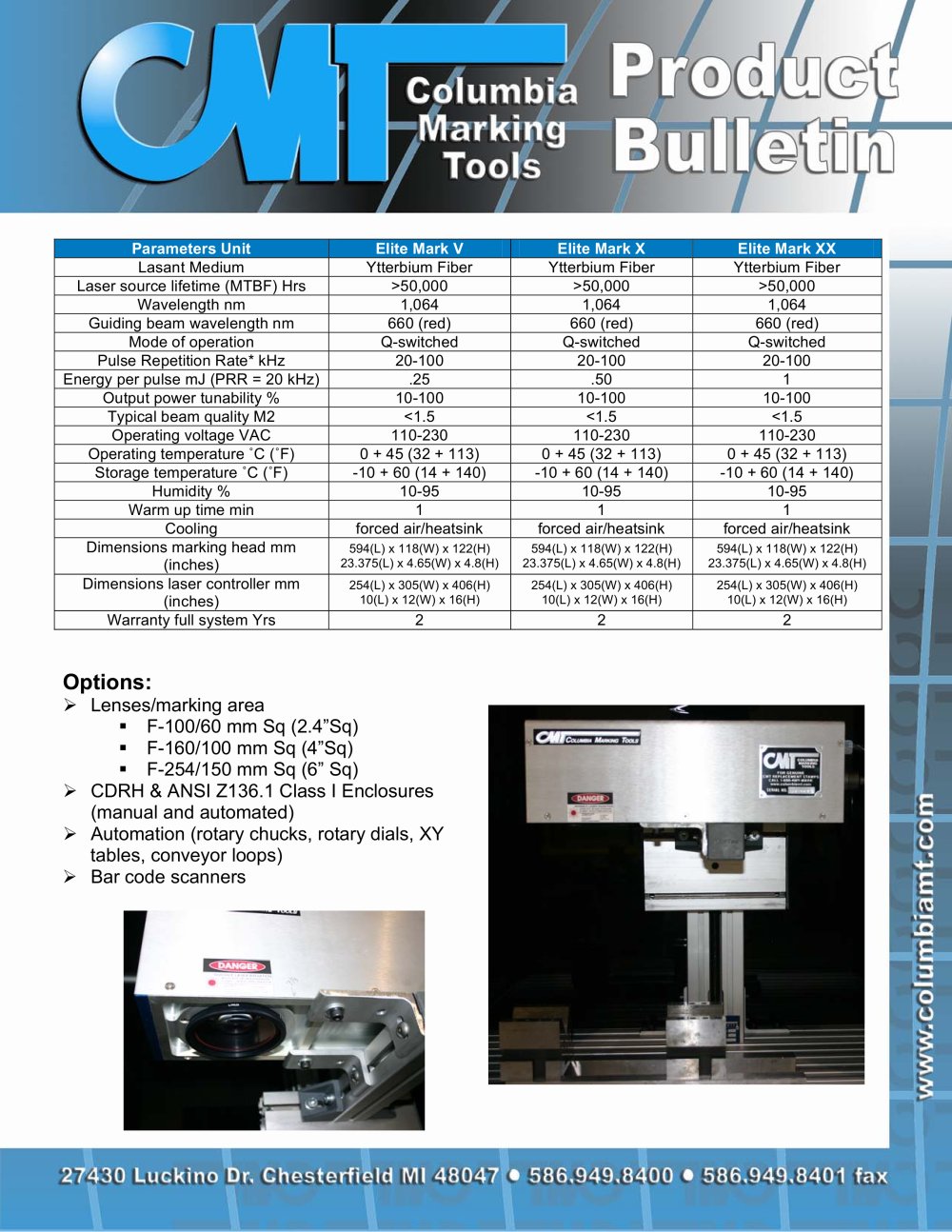

Parameters Unit Elite Mark V Elite Mark X Elite Mark XX Lasant Medium Ytterbium Fiber Ytterbium Fiber Ytterbium Fiber Laser source lifetime (MTBF) Hrs >50,000 >50,000 >50,000 Wavelength nm 1,064 1,064 1,064 Guiding beam wavelength nm 660 (red) 660 (red) 660 (red) Mode of operation Q-switched Q-switched Q-switched Pulse Repetition Rate* kHz 20-100 20-100 20-100 Energy per pulse mJ (PRR = 20 kHz) .25 .50 1 Output power tunability % 10-100 10-100 10-100 Typical beam quality M2 <1.5 <1.5 <1.5 Operating voltage VAC 110-230 110-230 110-230 Operating temperature ËšC (ËšF) 0 + 45 (32 + 113) 0 + 45 (32 + 113) 0 + 45 (32 + 113) Storage temperature ËšC (ËšF) -10 + 60 (14 + 140) -10 + 60 (14 + 140) -10 + 60 (14 + 140) Humidity % 10-95 10-95 10-95 Warm up time min 1 1 1 Cooling forced air/heatsink forced air/heatsink forced air/heatsink Dimensions marking head mm (inches)
594(L) x 118(W) x 122(H) 23.375(L) x 4.65(W) x 4.8(H) 594(L) x 118(W) x 122(H) 23.375(L) x 4.65(W) x 4.8(H) 594(L) x 118(W) x 122(H) 23.375(L) x 4.65(W) x 4.8(H) Dimensions laser controller mm (inches)
254(L) x 305(W) x 406(H) 10(L) x 12(W) x 16(H) 254(L) x 305(W) x 406(H) 10(L) x 12(W) x 16(H) 254(L) x 305(W) x 406(H) 10(L) x 12(W) x 16(H) Warranty full system Yrs 2 2 2

Fiber Laser Marker - 18322 Options:

Lenses/marking area F-100/60 mm Sq (2.4”Sq) F-160/100 mm Sq (4”Sq) F-254/150 mm Sq (6” Sq) CDRH & ANSI Z136.1 Class I Enclosures (manual and automated) Automation (rotary chucks, rotary dials, XY tables, conveyor loops) Bar code scanners
