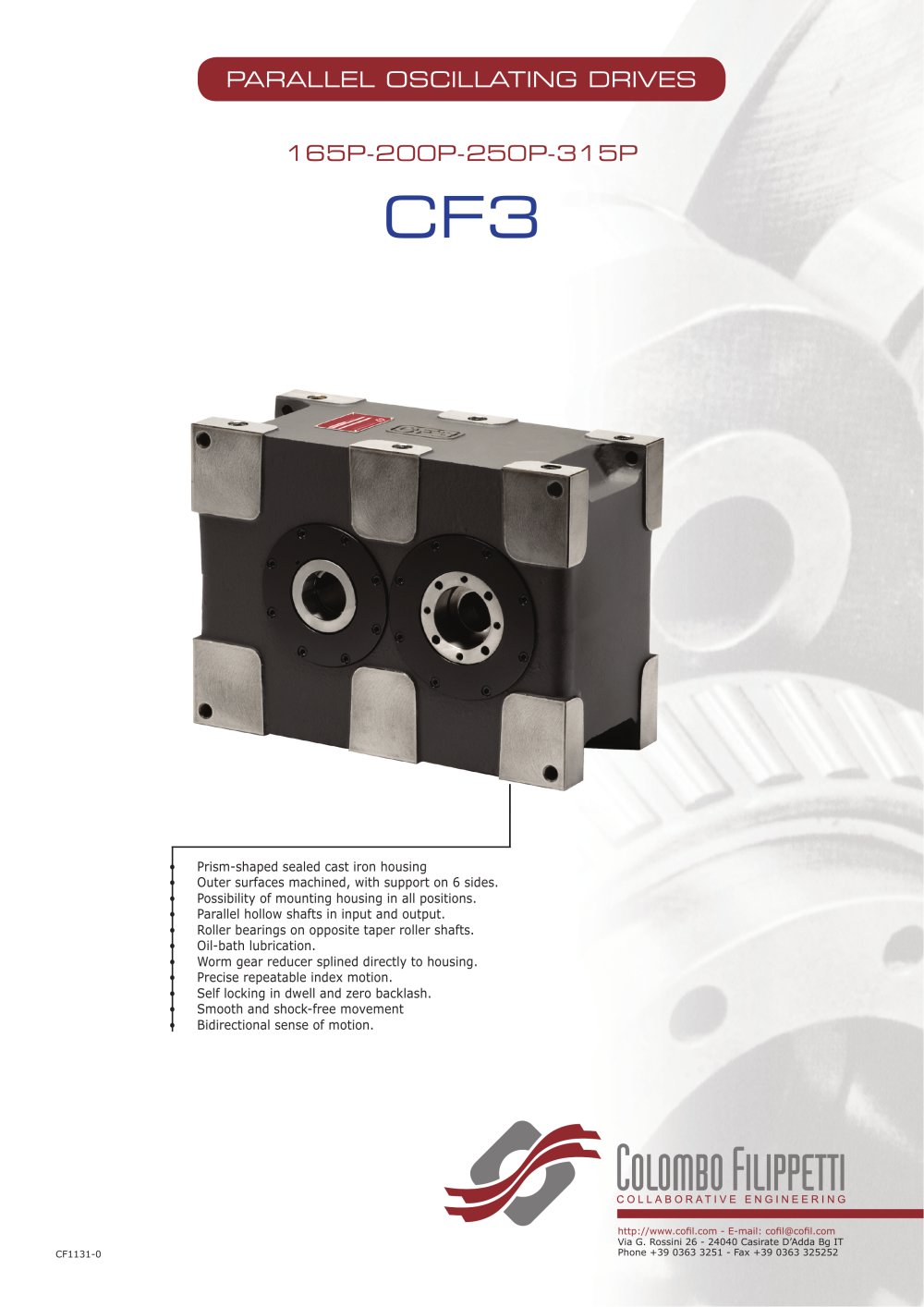

| PARALLEL OSCILLATING DRIVES | ||||||||||||||||||||||||||||||||||||||||
| 1 G5P«aoop*a5QP"3i sp | ||||||||||||||||||||||||||||||||||||||||
| Prism- shaped sealed cast iron housing Outer surfaces machined, with support on 6 sides Possibility of mounting housing In all positions Parallel shafts in Input and output Roller bearings on opposite taper roller shafts Oil-bath lubrication Worm gear reducer directly splined to housing Precise repeatable index motion Self locking in dwell and zero backlash Smooth and shock-free movement Bi-directional sense of motion | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Via Rossini, 26 I-24040 CAS I RAT E D'ADDA -BG -Tel 0363-3251 Fax 0363-325252 http://www.cofil.it - E-mail cofil@cofil.it | ||||||||||||||||||||||||||||||||||||||||
