IR601

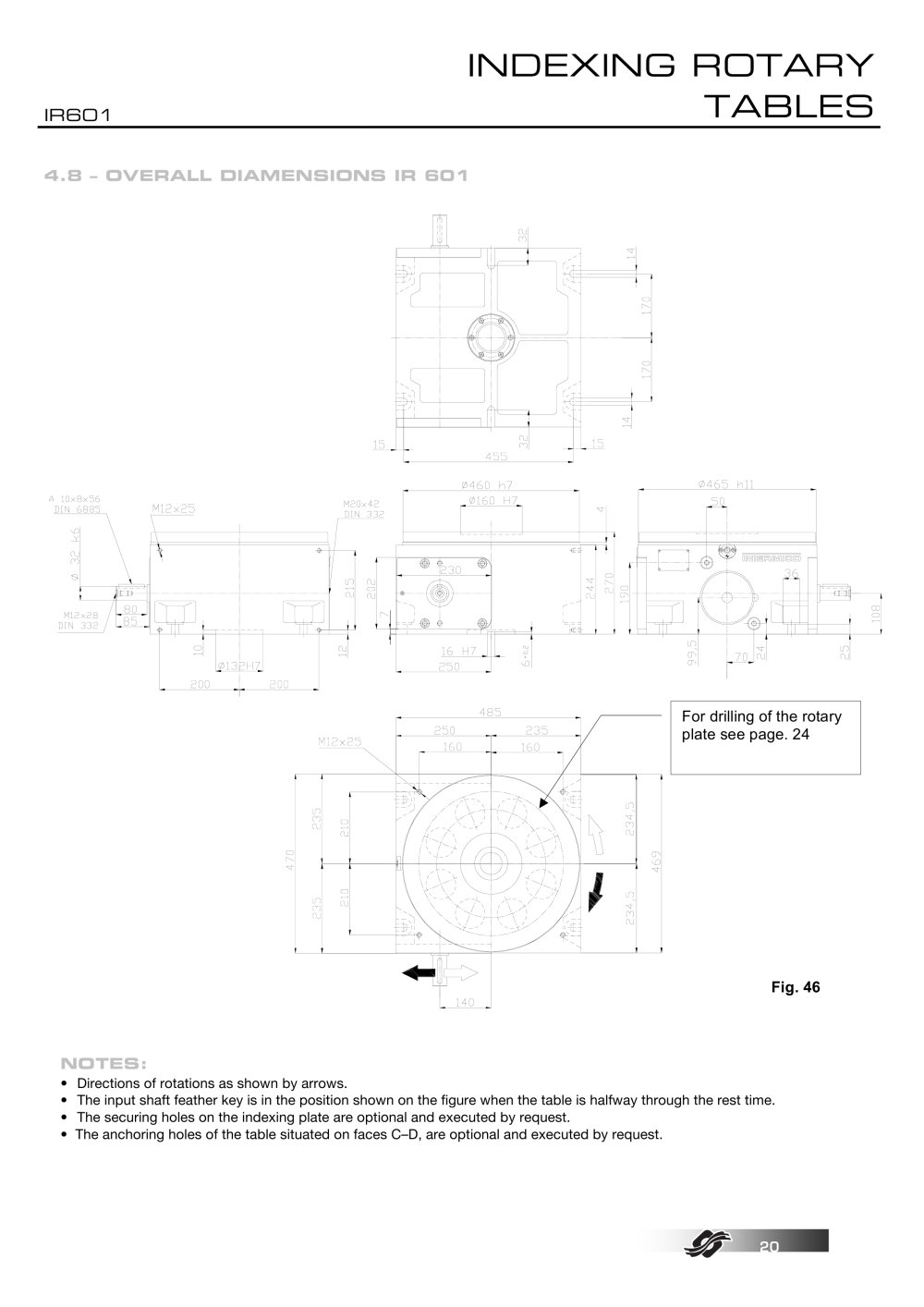

4.8 – OVERALL DIAMENSIONS IR 601 For drilling of the rotary plate see page. 24 Fig. 46 NOTES: >
• Directions of rotations as shown by arrows. • The input shaft feather key is in the position shown on the figure when the table is halfway through the rest time. • The securing holes on the indexing plate are optional and executed by request. • The anchoring holes of the table situated on faces C–D, are optional and executed by request. 20
