INDEXING ROTARYTABLES

IR251

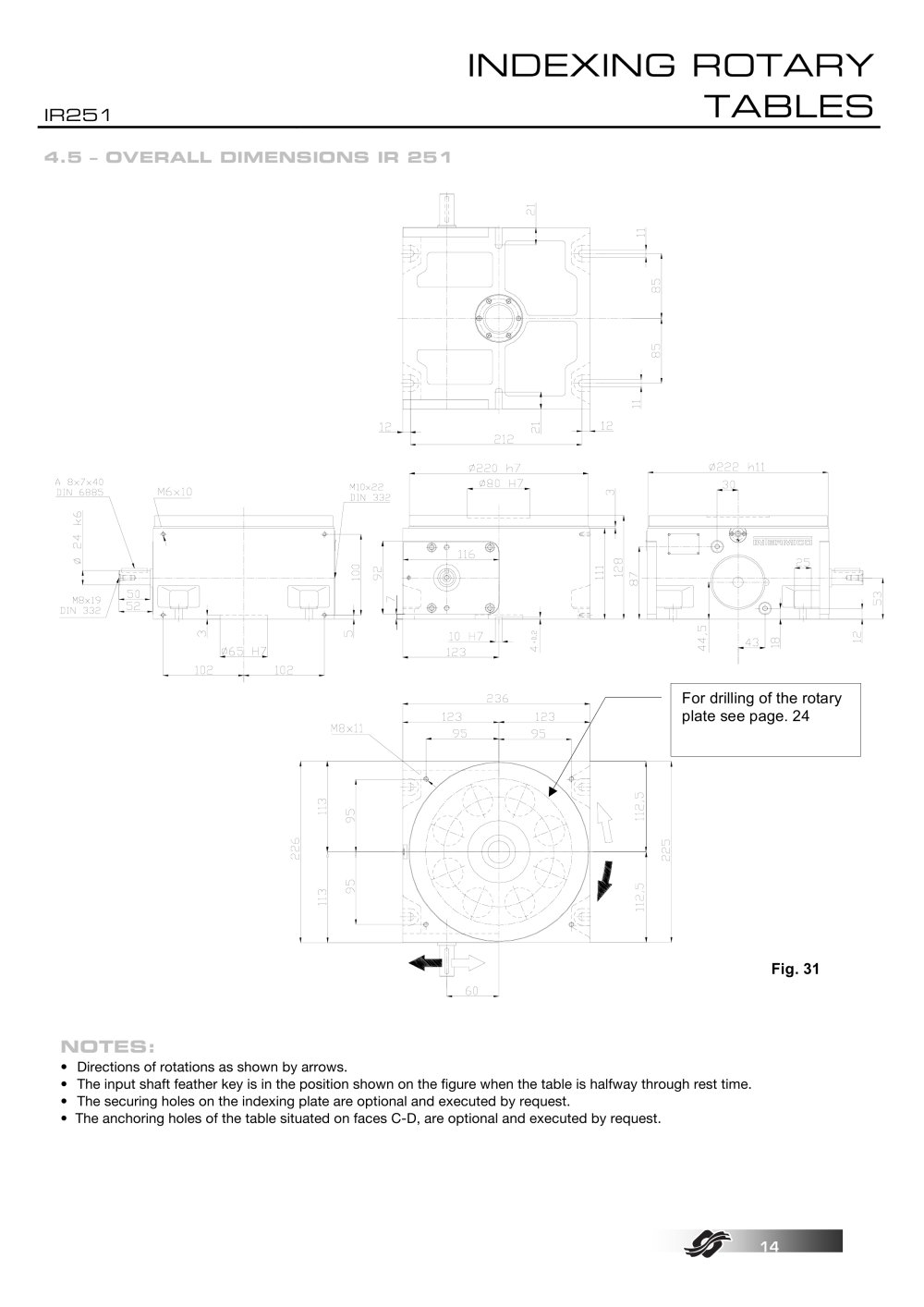

4.5 – OVERALL DIMENSIONS IR 251 For drilling of the rotary plate see page. 24 Fig. 31

NOTES:

• Directions of rotations as shown by arrows. • The input shaft feather key is in the position shown on the figure when the table is halfway through rest time. • The securing holes on the indexing plate are optional and executed by request. • The anchoring holes of the table situated on faces C-D, are optional and executed by request. 14
