9. Commissioning All RIGIDIAL tables are supplied with Long-Life lubrication on delivery, and are therefore ready to go into operation. The lubricant used is ISO VG 150 mineral oil. The type and presence of lubricant in the box is in any case indicated by means of a yellow label glued to it. The
torque limiter is calibrated despatch. It may be set for the application advised or to the maximum permitted for the assembly, if application advice, is lacking. 10. Maintenance RIGIDIAL indexing tables have no special requirements with regard to maintenance, but they must be inspected regularly for leakage of lubricant. Such leaks are a sign of malfunctioning of the device or wear of the seals. If excessive leaking is noticed, some maintenance should be carried out to restore the

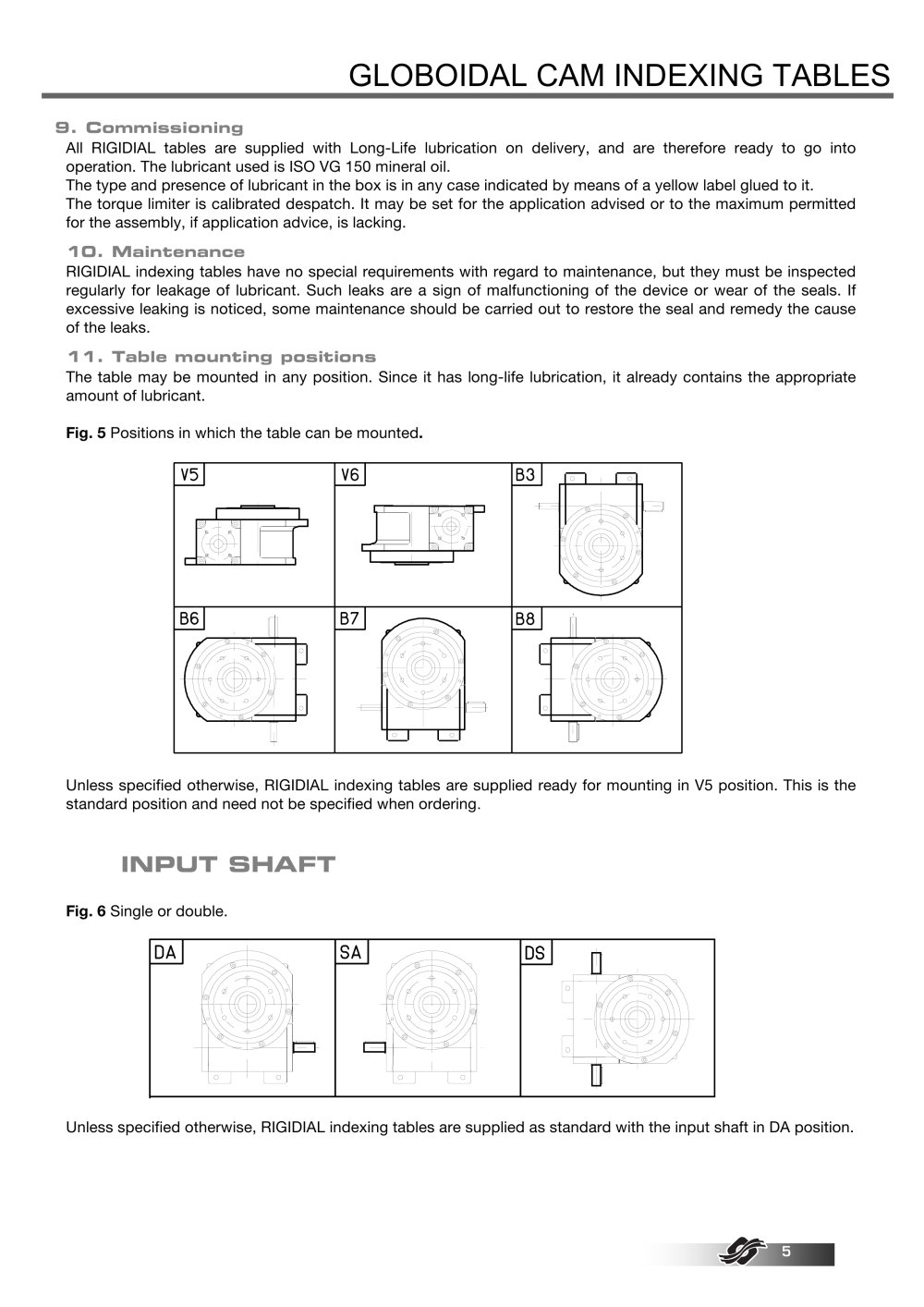

industrial seal and remedy the cause of the leaks. 11. Table mounting positions The table may be mounted in any position. Since it has long-life lubrication, it already contains the appropriate amount of lubricant. Fig. 5 Positions in which the table can be mounted . Unless specified otherwise, RIGIDIAL indexing tables are supplied ready for mounting in V5 position. This is the standard position and need not be specified when ordering .
INPUT SHAFT
Fig. 6 Single or double. Unless specified otherwise, RIGIDIAL indexing tables are supplied as standard with the input shaft in DA position.
