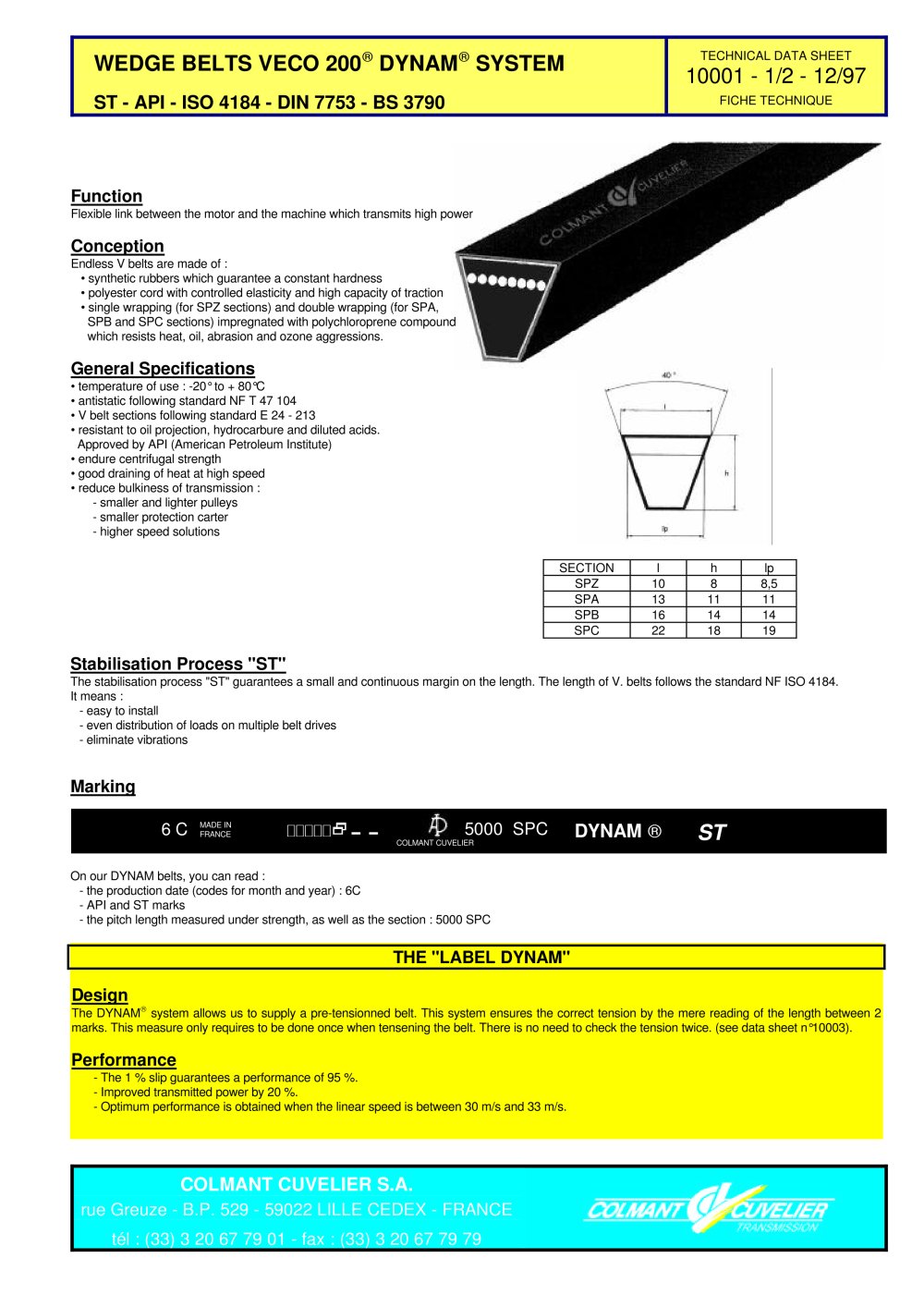

WEDGE BELTS VECO 200



DYNAM



SYSTEM

TECHNICAL DATA SHEET

10001 - 1/2 - 12/97

ST - API - ISO 4184 - DIN 7753 - BS 3790

FICHE TECHNIQUE Function
Flexible link between the motor and the machine which transmits high power Conception
Endless V belts are made of : ? synthetic rubbers which guarantee a constant hardness ? polyester cord with controlled elasticity and high capacity of traction ? single wrapping (for SPZ sections) and double wrapping (for SPA, SPB and SPC sections) impregnated with polychloroprene compound which resists heat, oil, abrasion and ozone aggressions. General Specifications
? temperature of use : -20° to + 80°C ? antistatic following standard NF T 47 104 ? V belt sections following standard E 24 - 213 ? resistant to oil projection, hydrocarbure and diluted acids. Approved by API (American Petroleum Institute) ? endure centrifugal strength ? good draining of heat at high speed ? reduce bulkiness of transmission :- smaller and lighter pulleys - smaller protection carter - higher speed solutions SECTIONlhlp SPZ1088,5 SPA131111 SPB161414 SPC221819 Stabilisation Process "ST"
The stabilisation process "ST" guarantees a small and continuous margin on the length. The length of V. belts follows the standard NF ISO 4184.It means :- easy to install - even distribution of loads on multiple belt drives - eliminate vibrations Marking 6 C
MADE INFRANCE 200200
COLMANT CUVELIER 5000 SPC

DYNAM 

ST

On our DYNAM belts, you can read :- the production date (codes for month and year) : 6C - API and ST marks - the pitch length measured under strength, as well as the section : 5000 SPC THE "LABEL DYNAM" Design
The DYNAM  system allows us to supply a pre-tensionned belt. This system ensures the correct tension by the mere reading of the length between 2marks. This measure only requires to be done once when tensening the belt. There is no need to check the tension twice. (see data sheet n°10003). Performance
- The 1 % slip guarantees a performance of 95 %.- Improved transmitted power by 20 %. - Optimum performance is obtained when the linear speed is between 30 m/s and 33 m/s.

COLMANT CUVELIER S.A.

rue Greuze - B.P. 529 - 59022 LILLE CEDEX - FRANCE tél : ( 33 ) 3 20 67 79 01 - fax : ( 33 ) 3 20 67 79 79
